DC-025M 9V DC Power Jack

DC-025M 2.1mm DC Power Jack, Jack Socket Female Mount Connector

Category :

DC Power Jack

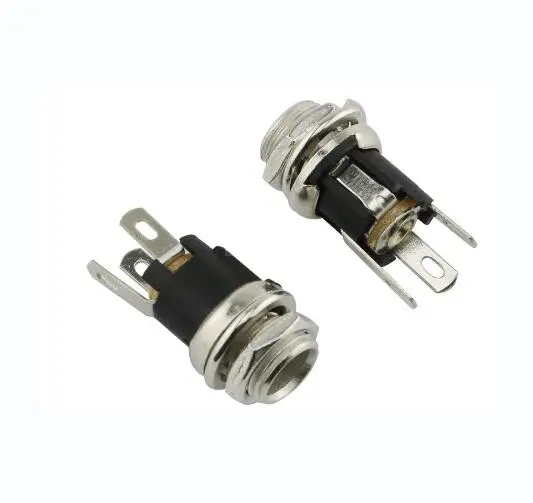

DC-025M 9V DC Power Jack

Model: DC-025M
Type: 5.5mmx2.1mm DC Socket
Pin Number: 3
Dimension: 21.5 x 10.5mm(L*D)
Mounting Diameter: 7.7mm
Material: Copper, Metal
Rated load: 0.5A DC30V
Temperature Range of Use: –25~80℃

Positive and negative soldering,more convenient to use. The longer flat pin is negative, the shorter pin in the center is positive

DC-025M 9V DC Power Jack Application:

DC-025M 9V DC Power Jack is mainly used for media players, MP3 players, MP4 players, audio and video equipment, AV equipment, notebooks, cell phones, cell phones, cell phones, smart phones, PDAs, car stereos, etc.
At Daier, we are proud to provide a comprehensive series of switches for various applications at an affordable price. With competitive prices, modern design and durability, our switches are your ideal choice.
For more information about the full range of jacks and other DC jacks, please contact us.
