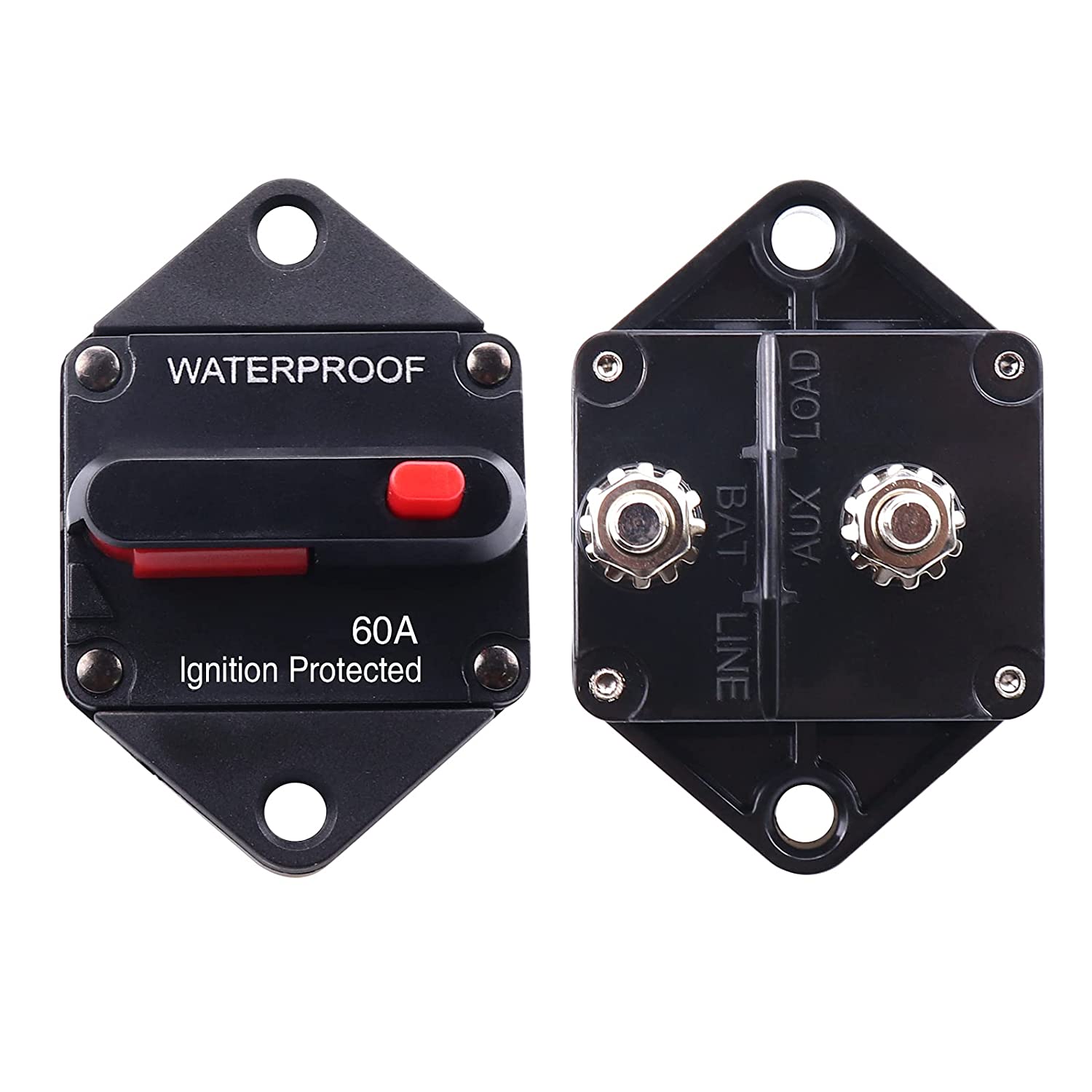

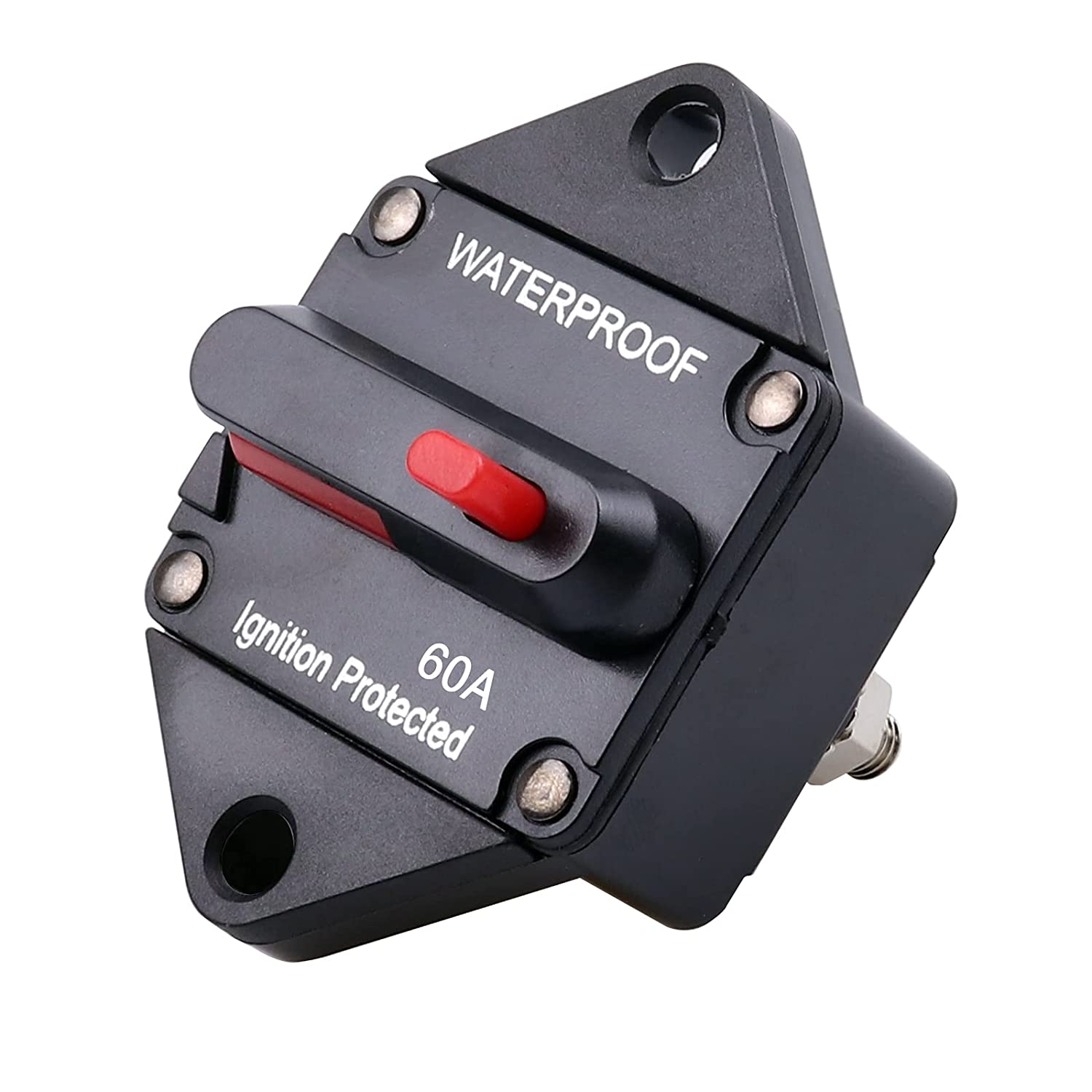

CB-06 Waterproof Hi-Amp Panel Mount Circuit Breaker

Part#CB-06

The waterproof Hi-Amp panel mount circuit breaker is typically used for auxiliary and accessory circuits on trucks, buses, recreational vehicles, marine, and construction equipment.

They are IP67 rated to protect against dust, oil, and other non-corrosive material while meeting SAE J1171 external ignition protection requirements.

CB-06 Waterproof Hi-Amp Panel Mount Circuit Breaker Details

  • Specification

40amp, DC 12V – 48V, splash & dust proof, Stud Size: 1/4″-28. Meet S.A.E. J1625, J1171 (Ignition Protected).

  • Function

It prevents excessive current and protects electrical appliances. Combines switch and circuit protection into a single device.

  • Resettable

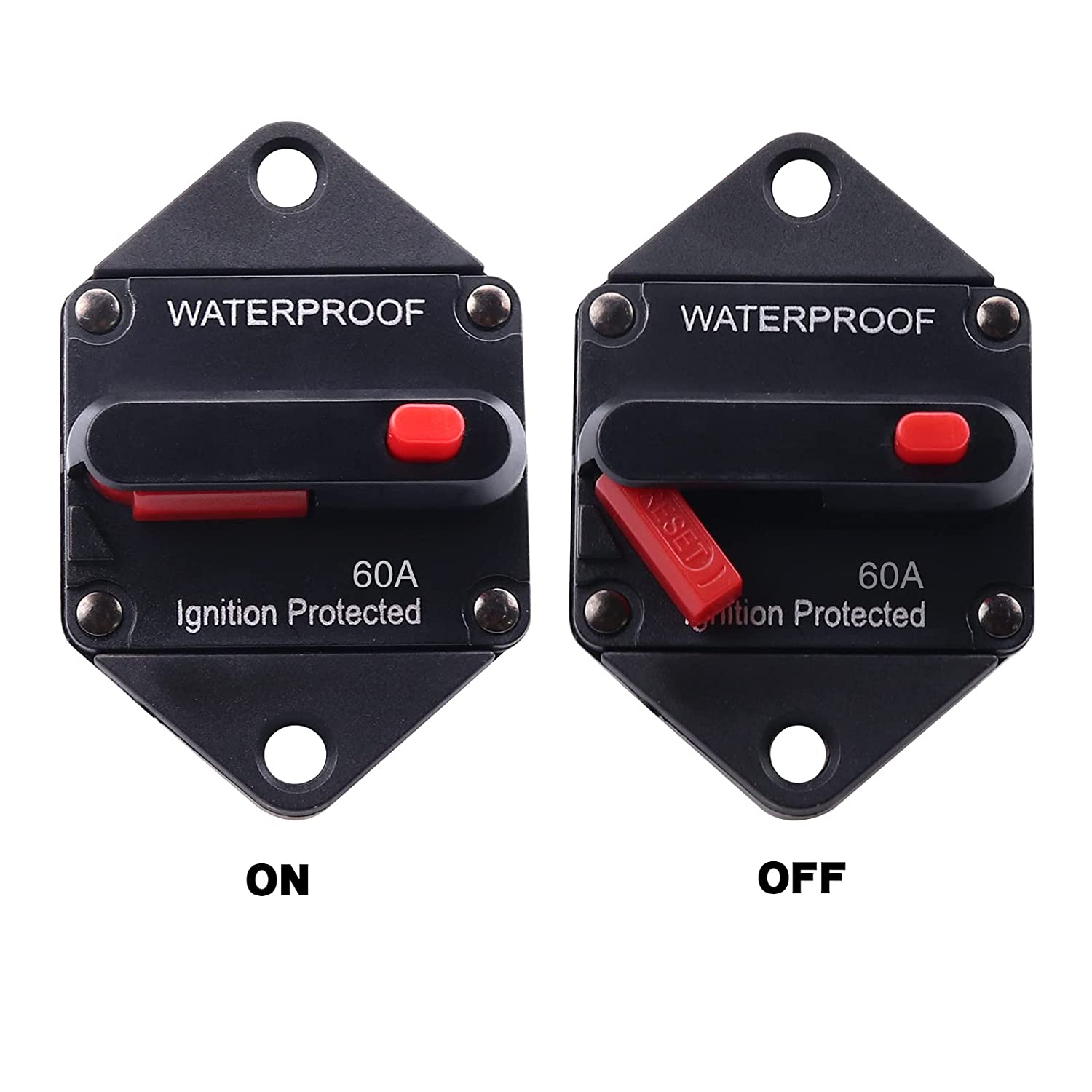

Type 3 Manual Reset (Switchable). No need to replace fuses, system can be reset with a simple switch, also provides safety and instant system shutdown.

  • Durable

High quality material, waterproof housing with good heat and corrosion resistance. Easy to install, mounted on panel or firewall.

  • Application

It’s suitable for 12V-48V DC marine applications (as main breakers or branch circuit breakers), trucks, buses, vehicles, RV systems, additional protection for accessories.

CB-06 Datasheet

Product Size 48.7mm x 74mm x 43.7mm
Rated Voltage 12-48V DC
Rated Current 30A / 40A / 50A / 60A / 70A / 80A / 90A / 100A / 120A / 130A / 150A
Operating Temperature -32℃ to 82℃(-25°F to 180 °F)
Reset Type T3
Stud Size M6
Mounting Type ‎Panel Mount
Interrupt Capacity 3000A @ 30Vdc

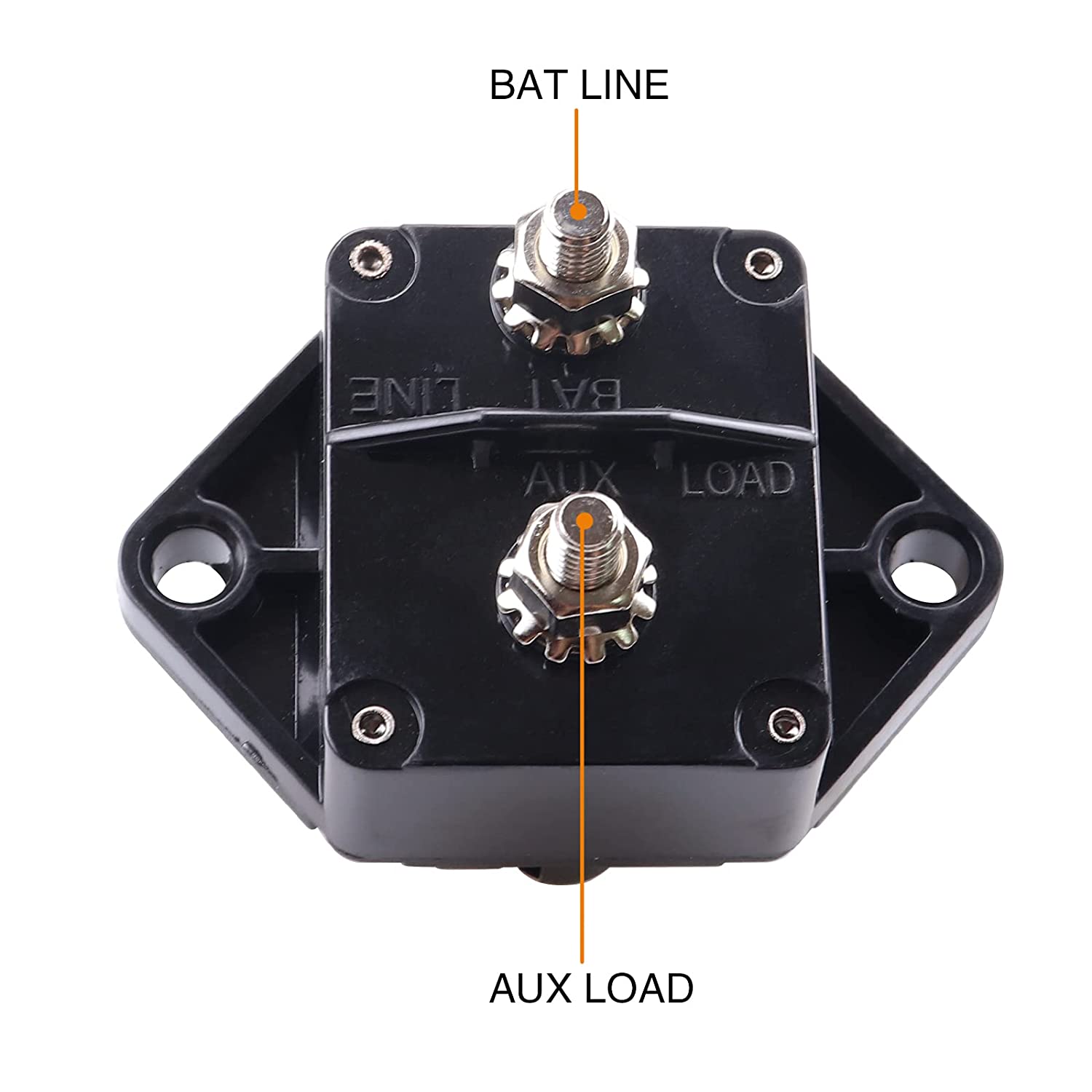

Wire Connection BAT LINE SHI for input wire, AUX LOAD for output wire.

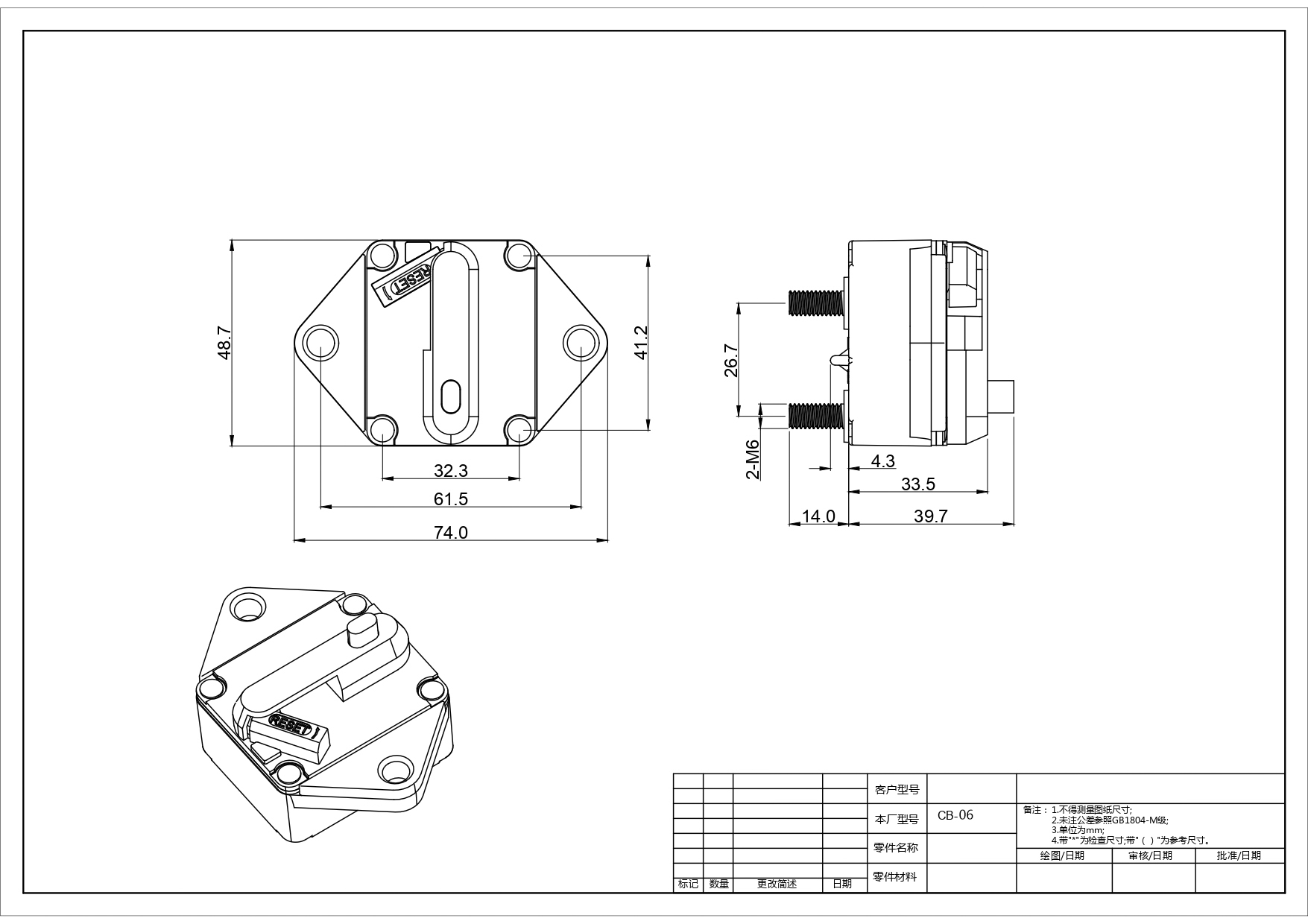

CB-06 Dimension Drawing

CB-06 Dimension Drawing

Still, have a question about the CB-06 that wasn’t answered on this page? Please get in touch with us at sales1@chinadaier.com or live chat!
