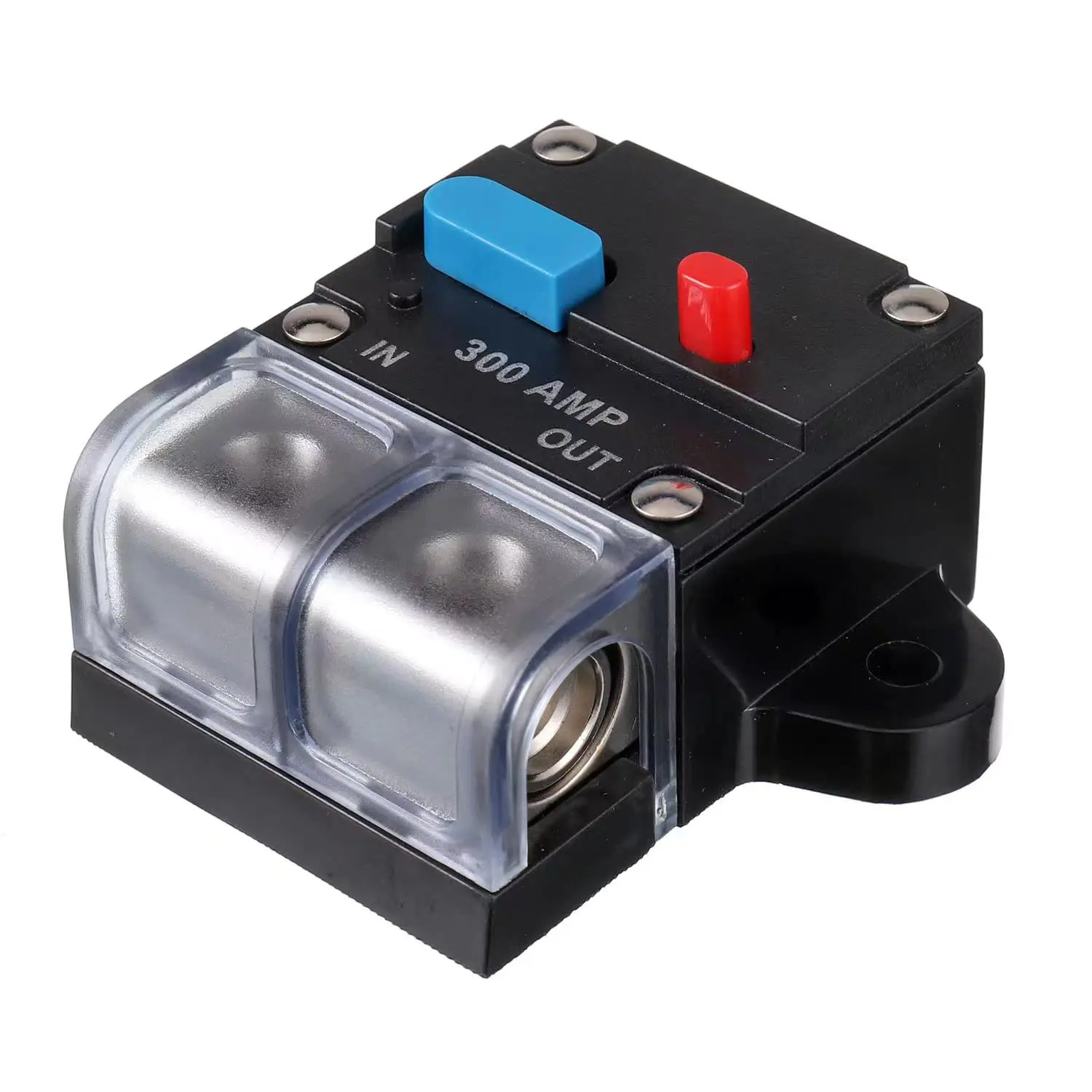

CB-04 0/2/4/8 AWG Resettable Circuit Breaker


The resettable circuit breaker accepts 0/2/4/8 AWG specification power cords with adapters for direct connection with all 12-24 volt systems.

The circuit breaker can be used to distribute power, start asynchronous motors infrequently, and protect power lines and motors.

CB-04 0/2/4/8 AWG Resettable Circuit Breaker Details

  • Features

The high-current thermal trip circuit breaker with manual reset switch for auxiliary DC electrical system. When the current reaches a predetermined value, the fuse can be reset to automatically break and protect the circuit.

  • Circuit Protection

When the current reaches a predetermined value to prevent excessive current, the recoverable fuse automatically breaks to protect the circuit and protect the appliance.

  • Simple Installation

The resettable circuit breaker is easy to install with simple steps and can be mounted on any flat panel, on the wall or in the car. There is no need to replace the built-in fuse, and it can also be used as an on/off button battery switch.

  • Materials & Wiring

The housing and components are made of highly flame-retardant and shock-resistant plastic for long life. It accepts 0/2/4/8 gauge power cords with adapters for direct connection to all 12 and 24 volt systems.

  • Widely Application

It is suitable for overload protection of automotive audio/video systems, marine, truck, bus, RV, ATV winches and marine and DC sound amplification systems.

CB-04 Datasheet

Material Plastic and metal
Color Black shell + gray cover
Product Size 2.63 x 1.96 x 1.37 inch
Weight about 204g/7.2oz
Rated Voltage 12-24V DC
Rated Current 50/80/100/150/200/250/300A
Operating Temperature: -10℃ to 50℃ (-14℉ to 122℉)
Suitable wire gauge 0、2、4、8 AWG
Current load VS time trip 100%VS 20-180s; 150% VS 6-40s; 200% 4-25s

CB-04 Dimension Drawing

CB-04 product size
