Wire Connections for Equipment & OEM Assemblies
Electrical Terminals & Wire Connectors
DAIER supplies ring and fork terminals, quick disconnects, wire-end ferrules, copper lugs and heat-shrink connections for equipment wiring. Related wire nuts and spring connectors are also listed. Compare the connection type, conductor range and mating dimensions, then choose the insulation and termination method for the exact version.
- Stud Connections Ring, Fork & Copper Lugs
- Quick Connections Male, Female & Piggyback
- Wire-End Connections Ferrules & Butt Splices
- Insulation Options Standard & Heat-Shrink
Terminal Series & Wire Connectors

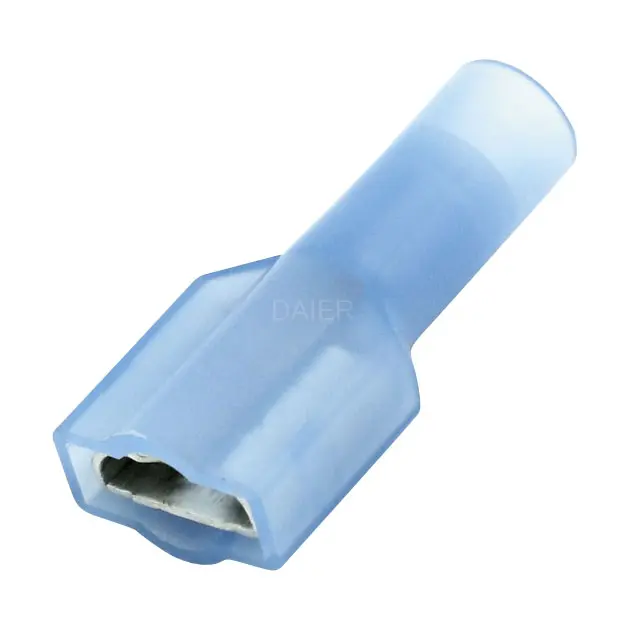

MDFNY Series
MDFNY Series quick connect terminals provide an ease-of-use and long-term dependability that you can always count on
HSRT Series
HSRT Series are perfect for single wire terminations in corrosive environments, heat shrinkable, adhesive lined, colour coded insulation.
HSYT Series
HSYT Series heat terminals are made by polyolefin, with adhesive lining for protecting splices from water and corrosion.
HSFT Series
HSFT Series quick connect terminals are perfect for single wire terminations in corrosive environments, heat shrinkable, adhesive lined, colour coded insulation.
HSMT Series
HSMT Series quick connector terminal is more reliable than conventional crimp terminals.
FDFN Series
- FDFN Series quick disconnect cable size : 0.5-1.5 mm2 (AWG 22-16) , 1.5-2.5mm2 (AWG 16-14), 4-6mm2 (AWG 12-10)
SP Series
SP Series wire nut wire connectors are suitable for all kinds of electrical products.
CH-2,CH-3
CH-2,CH-3 quick connector cable clamp was passed CE and ROHS, international authentication.
Heavy Duty Copper Lug Battery Ring Terminal
The copper lug battery ring terminals are 100% copper and are for use with AWG 2 4 6 8 10 12 AWG wire to meet your different needs.
Selection Guide
Compare Terminals for Your Wiring Assembly
Connection Type
- Ring and fork terminals connect to screw or stud positions.
- Male, female and piggyback disconnects use matching tab connections.
- Ferrules prepare wire ends; butt splices join conductors.
Wire Range & Mating Size
- Match the conductor size to the specified barrel or entry range.
- Stud holes and quick-connect tabs require different dimensions.
- Ferrule pin length and diameter must fit the terminal-block entry.
Insulation & Installation
- Standard insulated, fully insulated and heat-shrink types differ.
- Adhesive-lined heat-shrink sleeves require crimping followed by heating.
- Wire nuts and spring connectors use their own connection methods.
Compare similar versions by: Connection Type / Wire & Mating Size / Insulation & Installation. Materials and electrical ratings must come from the exact product specification.
Applications
Typical Terminal Applications
Match the terminal format to the equipment connection and assembly process.
Equipment & Control Panels
Ferrules and matching terminal connections for stranded-wire entries; quick disconnects for compatible switches and appliance connections.
Vehicle & Battery Wiring
Ring, fork and copper lug connections for compatible studs and cable assemblies. Specify the conductor size and installation exposure.
Harness & Service Kits
Butt splices, disconnects and heat-shrink assortments for repeat wiring and repair kits. Confirm the sizes and quantities included.
Common Questions
Terminal FAQs
Answers about wire fit, mating dimensions, insulation and ordering.
Matching an Existing Connection?
A part number, photo or drawing helps identify the terminal and mating interface.
Send Project DetailsUse three items: connection type, conductor range and mating dimensions, and insulation with installation method. Match a ring or fork to its stud, a quick disconnect to its tab, and a ferrule to the terminal-block entry.
They use different mating connections. Ring and fork terminals connect to screw or stud positions. Male and female quick disconnects form a tab-and-receptacle connection. Match the complete interface and dimensions rather than appearance alone.
Use the marked conductor range and model drawing. Color is an identification aid, and ferrule color conventions can differ from red, blue and yellow crimp-terminal groups. Do not use color alone to select a size.
The HSRT page describes an adhesive-lined heat-shrink sleeve applied after crimping. Standard insulated terminals use a different construction. Follow the instructions for the exact version; heat-shrink construction alone does not establish an IP rating for the installed connection.
No. Material, plating, conductor range, temperature and electrical ratings depend on the product. Request the current drawing or specification where a listing conflicts. For a quotation, include the series, wire size, mating dimensions and quantity.
Share Your Terminal Requirements
Send an existing part number, or provide the details below.
- Wire & Connection
- Conductor size, terminal type and stud, tab or plug dimensions
- Assembly Requirements
- Insulation, crimp or connection method, and installation conditions
- Order Details
- Quantity, drawing and required documents
