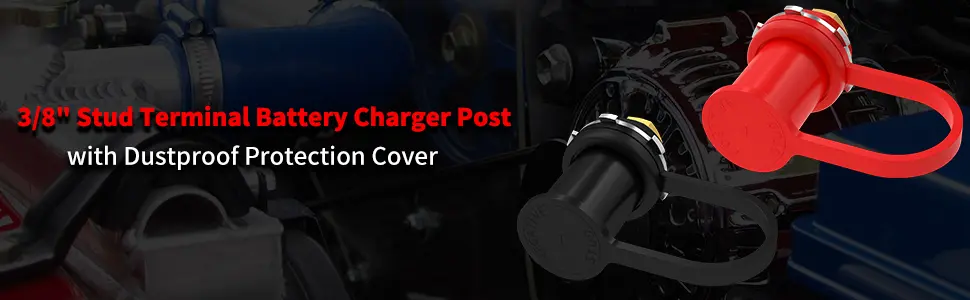

BCP-1 250A 3/8″ Studs Remote Battery Charger Post with Caps
Part#BCP-1
The remote battery charger post is a 12V 250A 3/8″ stud remote battery terminal with a waterproof cover for marine, cars, trucks, ATVs, UTVs, etc.
The battery post is an M10 (3/8″) stud design, which makes it become suitable for larger size terminal connectors and wires.
BCP-1 3/8″ Studs Remote Battery Charger Post with Caps Details
- Convenient Battery Access
This remote battery terminal provides a simplified and accessible solution for various battery-related tasks. The battery post allows for easy charging, jump-starting, or other battery maintenance, eliminating the need to access the battery directly.
- Durable and High-Capacity
Crafted from heavy-duty brass, this battery charger post boasts a robust 250A rating at 12V. The 3/8″ stud design accommodates larger gauge wires, ensuring safe and efficient current flow for demanding applications.
- Versatile Mounting Options
This battery charging post is designed for flexible installation. It can be mounted on panels up to 0.3″ thick through a 1-1/4″ hole, making it suitable for various vehicle and equipment setups.
- Enhanced Safety and Protection
The included protective caps cover the exposed contacts on the battery jumper terminals. This prevents dust and water contamination and reduces the risk of accidental contact, enhancing safety when the post is not in use.
- Wide Application Compatibility
This car charging jump post is ideal for a wide range of vehicles and equipment, including cars, trucks, boats, marine vessels, ATVs, and more. Its versatile design and durable construction make it a reliable choice for various battery connection needs.
BCP-1 Remote Battery Charger Post Datasheet
| Part NO | BCP-1 |
| Connection Type | Red for Positive, Black for Negative |
| Terminal Studs | M10 (3/8″) |
| Max Voltage | 48V DC |
| Max Continuous Amperage | 250 AMP @ 12V |
| Overall Dimension (with Cover) | 45mm x 45mm x 68mm (LxWxH) |
| Features | Removable Plate Design Cover |
