BB600-T6M10-C 600A 48VDC 6 x M10 (3/8″) Stud Power Bus Bar Distribution Block

Part#BB600-T6M10-C

The 48VDC 600A power bus bar has 6 × M10 (3/8″) terminal studs and the power bus thickness of the pure copper plate is 20mm.

This product encompasses a positive and a negative power distribution block and both complete with protective covers.

Category :

Busbar

BB600-T6M10-C 600A 48VDC 6 x M10 (3/8″) Stud Power Bus Bar Distribution Block Details

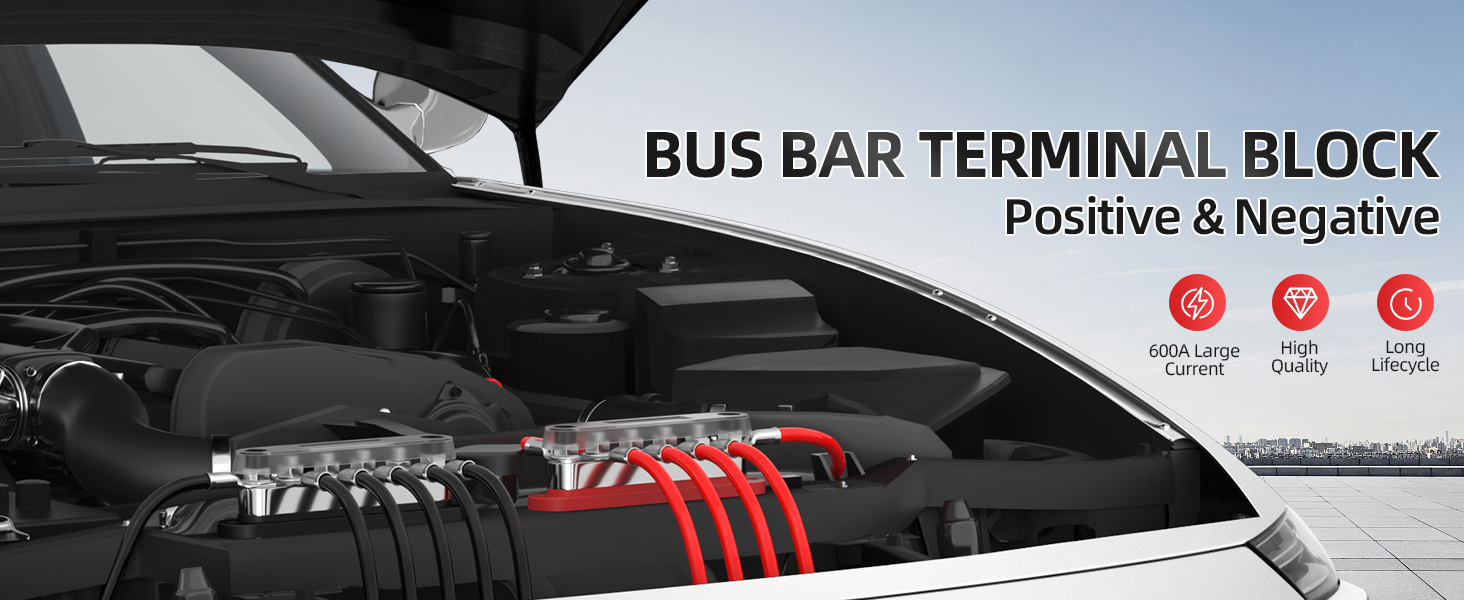

  • Power Distribution Set

This product encompasses a positive and a negative power distribution block, each capable of handling up to 600A, effectively streamlining power supply management.

  • Impressive Voltage Compatibility

Functioning effectively in 12V supply circuits, this battery distribution block exhibits a remarkable 600A rating. The maximum power handling capacity extends up to 48V, ensuring versatile usage.

  • Sturdy Terminal Connections

 Featuring six 3/8″ stud terminals, the battery bus bar facilitates the accommodation of large-sized terminal connectors and wires, providing a robust connection and stable power flow.

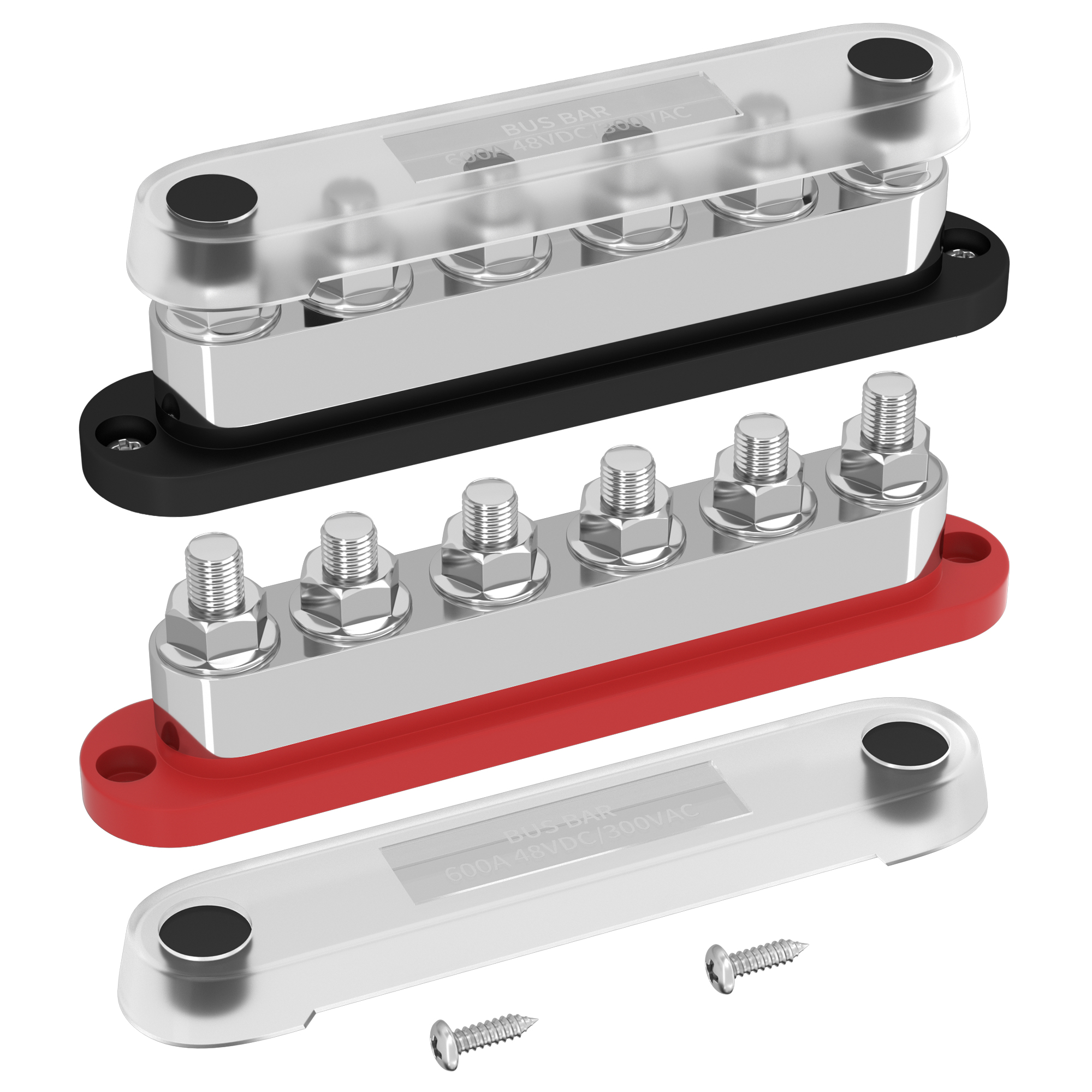

  • Protective Accessories Included

Each power bus bar unit is accompanied by a protective cover and two nuts. These accessories serve as a shield, effectively minimizing exposed areas, reducing the potential risks of accidental contact, and preventing short circuits, thereby enhancing overall circuit safety.

  • Versatile Applications

Ideal for various settings, this 12-volt bus bar, complete with a protective cover, aims to streamline and organize circuit wiring, preventing tangled harnesses from causing electrical short circuits. Suitable for a wide array of uses, including automotive, cars, RVs, trucks, marine vessels, boats, and solar energy applications.

BB600-T6M10-C Power Bus Bar Datasheet

Part NO BB600-T6M10
Connection Type Red for Positive
Black for Negative
Terminal Studs 6x M10 (3/8”)

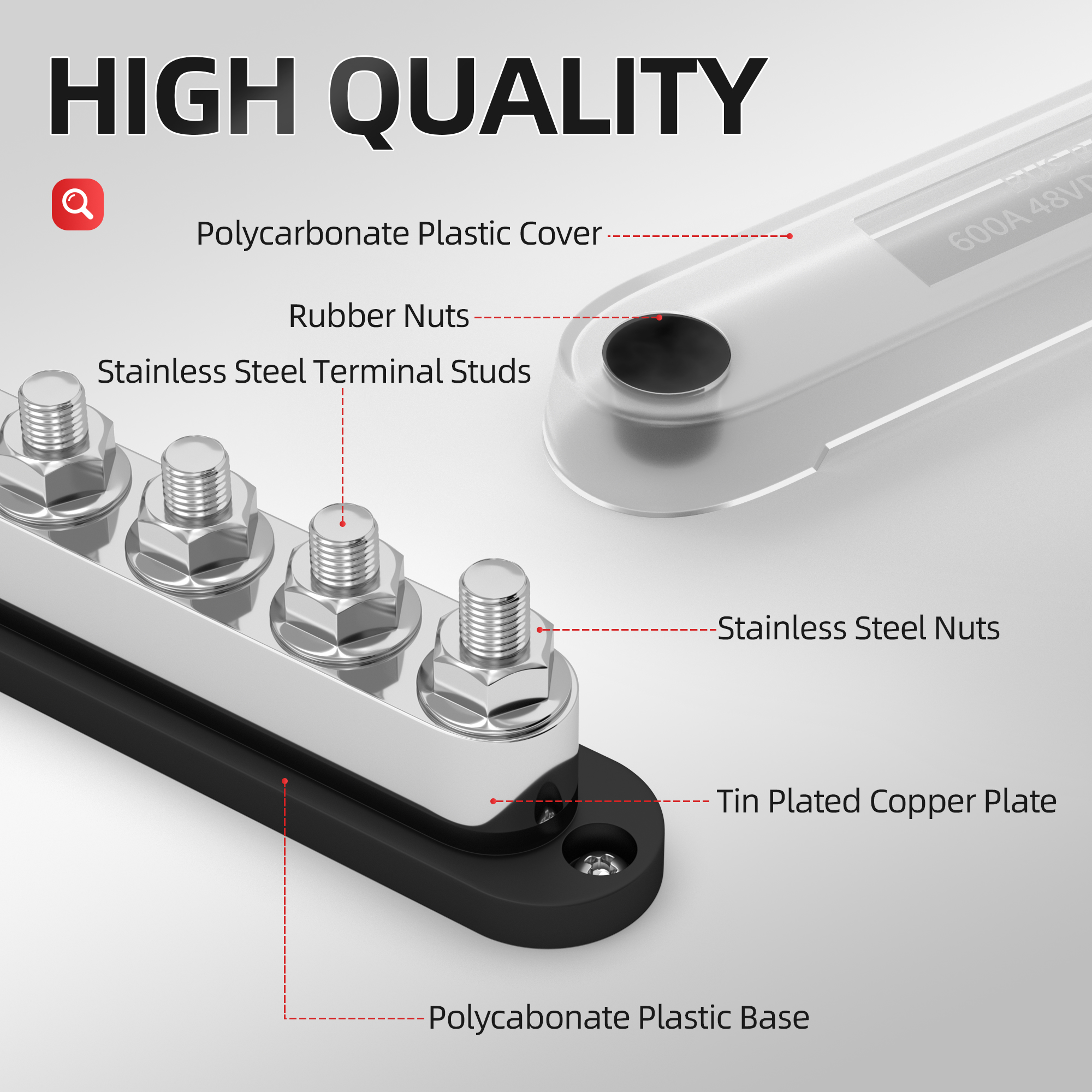

Base & Cover Material Nylon
Bus Material Copper
Bus Thickness 20mm
Terminals Material Stainless Steel
Max Voltage 48V DC
Max Continuous Amperage 600 AMP 48VDC/300V AC

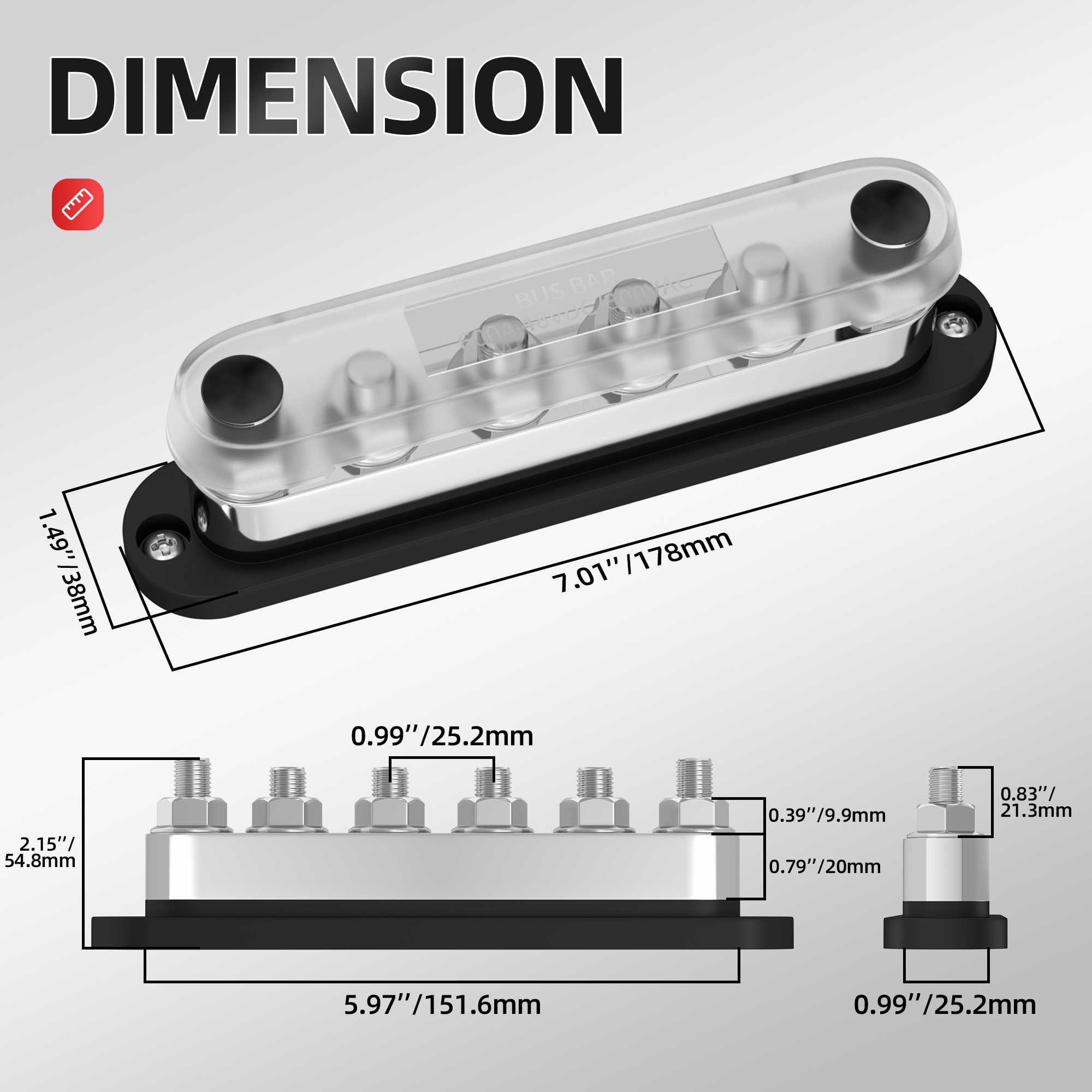

Overall Dimension 178mm x 37.8mm x 56.2mm (LxWxH)

If you have any questions about the product or would like more information, we encourage you to contact us via email at sales1@chinadaier.com or through our live chat. We are here to help you and give you the information you need.
