BB300-T4M10-C-BOX1 Heavy Duty 12V Distribution Block

Part#BB300-T4M10-C-BOX1

The 12V distribution block is rated for 300A in 48V DC / 300V AC, with 4 terminal studs size M10.

The power distribution board is dust-proof and waterproof to ensure the safety of use.

Category :

Busbar

BB300-T4M10-C-BOX1 Heavy Duty 12V Distribution Block Details

  • Easy Installation

It is installed on the panel surface with screw mounting holes for installation in any direction.

  • Stable Performance

Nickel-plated brass contact plate has low resistance and good conductivity to ensure the flow and stability of current.

  • Sturdy Construction

All power distribution connection blocks are manufactured with high-quality materials, ensuring mechanical strength and durability.

  • Safety Protection

The base is made of flame retardant plastic to protect the safety of equipment and people.

  • Wide Application

It is suitable for cars, RVs, trucks, boats, solar energy, and other electrical equipment, etc.

BB300-T4M10-C-BOX1 Datasheet

Product Size (L*W*H) 138 x 68 x 44 mm
Terminal Studs Size 4 * M10 (3/8”)
Stud Material Stainless steel
Base Material Nylon, fiberglass
Max Operating Voltage DC 48V
Continuous Current DC 300A
Color Red/Black

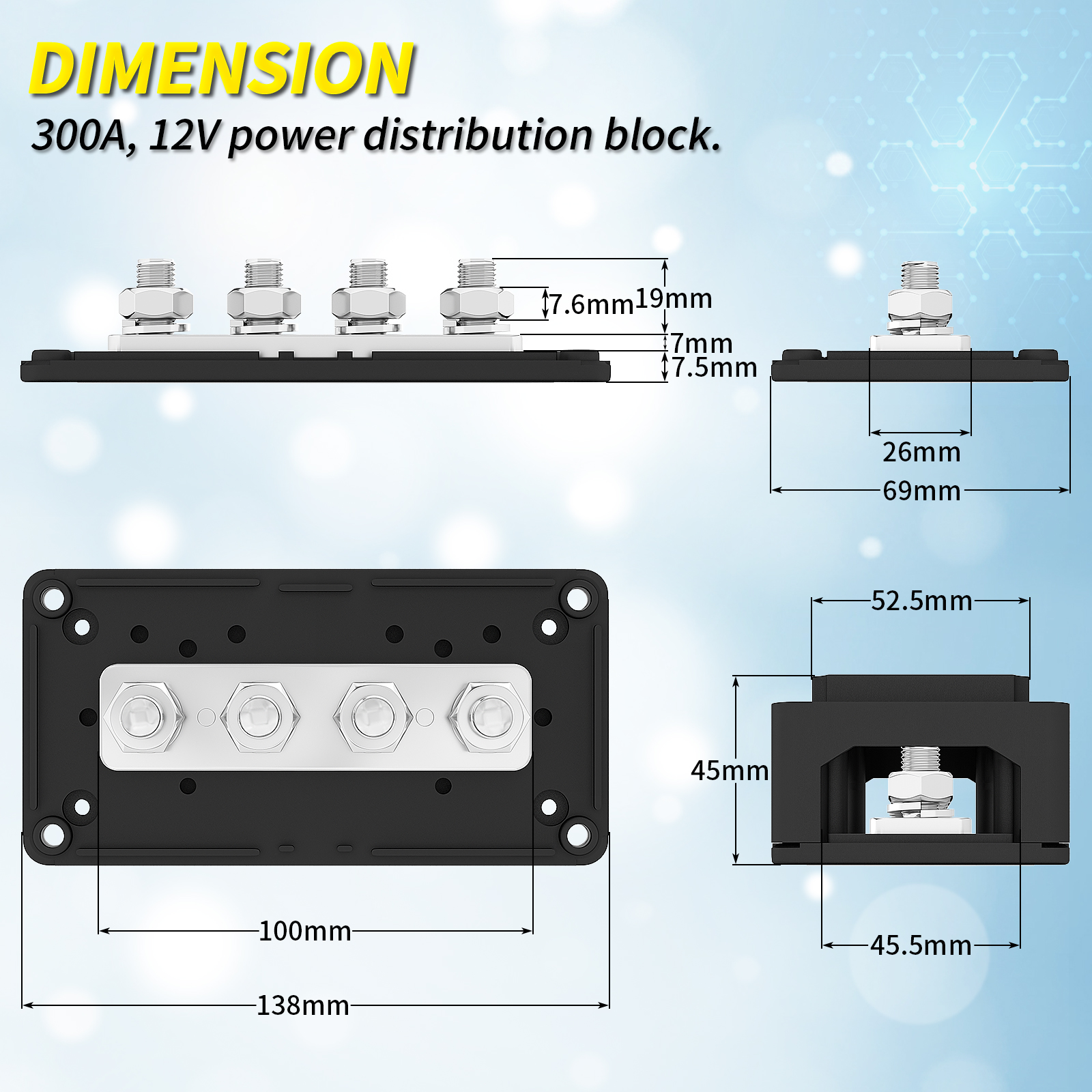

BB300-T4M10-C-BR-BOX1 Dimension

Similar Busbar Models: BB300-T4M8-C-BOX1

Still, have a question about the BB300-T4M10-C-BOX1 that wasn’t answered on this page? Please contact us at sales1@chinadaier.com!
