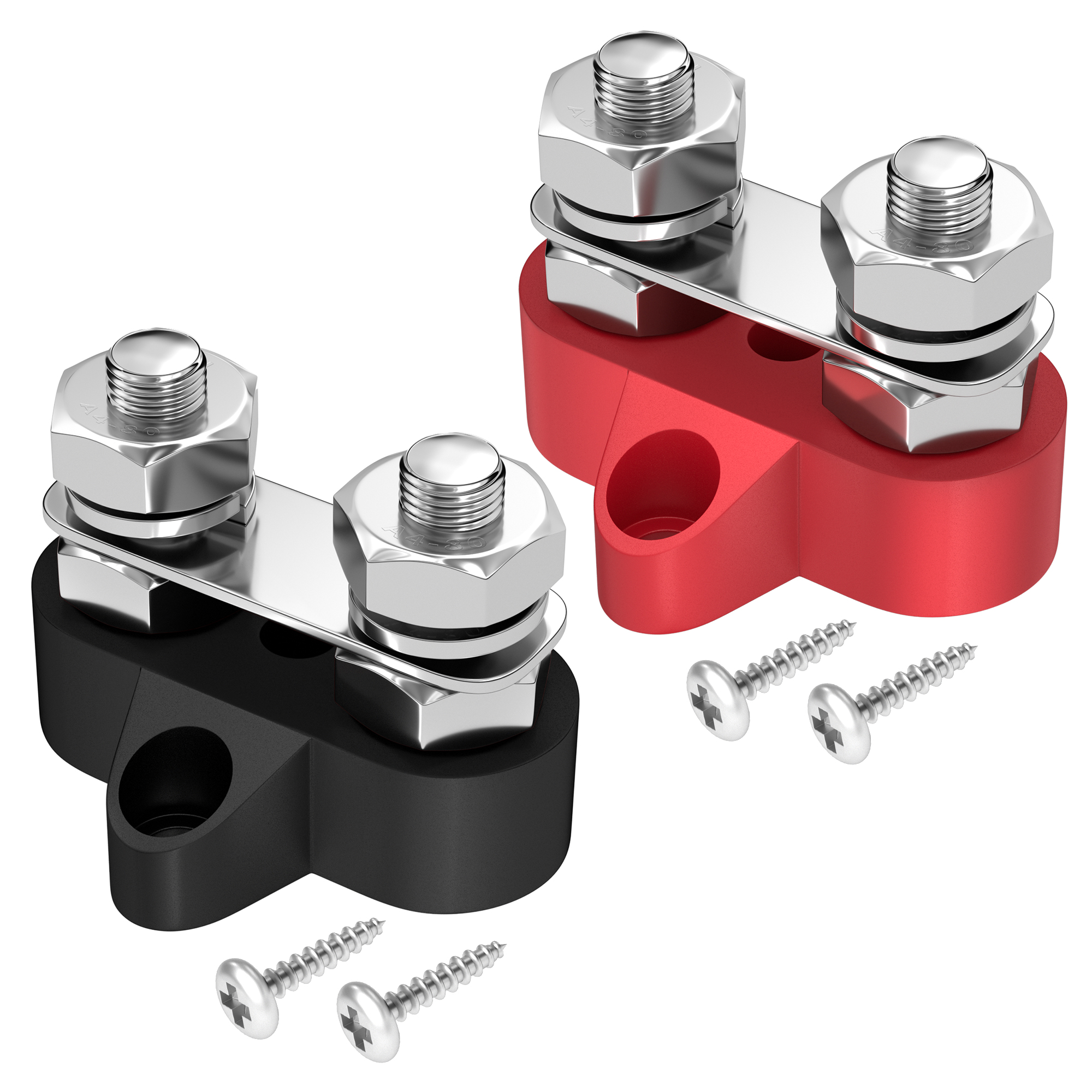

BB2-1 80A 12V- 48V DC M10/M8/M6 Dual Stud Power Distribution Terminal Block
Part#BB2-1
The 80A dual stud power distribution terminal block is designed for reliable power distribution in 12-48V DC applications.
Available with a choice of M6, M8, or M10 studs for secure connections, ideal for automotive, industrial, and marine use.
Category :
Busbar
BB2-1 12V- 48V DC M10/M8/M6 Dual Stud Power Distribution Terminal Block Details
- Reliable Power Distribution for Diverse Applications
The dual stud power distribution terminal block offers a reliable and versatile solution for your automotive, marine, RV, and industrial power distribution needs. Built with robust construction and high-quality materials, this durable design is built to handle a wide range of voltage and amperage requirements, making it a suitable choice for diverse applications.
- Flexible Configurations for Customized Wiring Needs

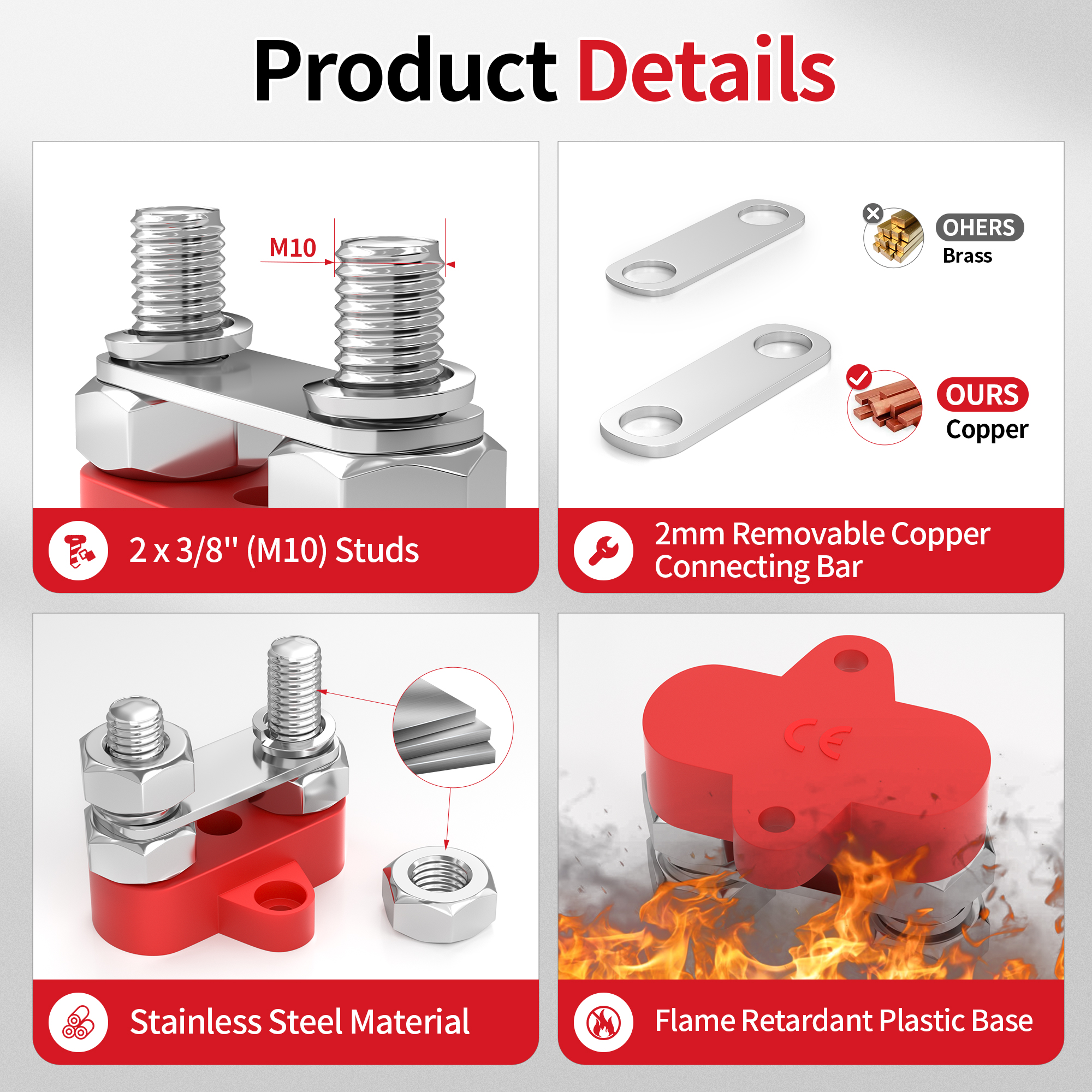

This dual stud terminal block offers flexibility for your specific wiring needs, featuring dual terminal studs available in M10 (3/8″), M8 (5/16″), or M6 (1/4″) configurations. Its high-quality nickel-plated brass contact plate ensures low resistance and excellent conductivity, guaranteeing a stable and efficient flow of current.
- Durable Construction for Harsh Environments

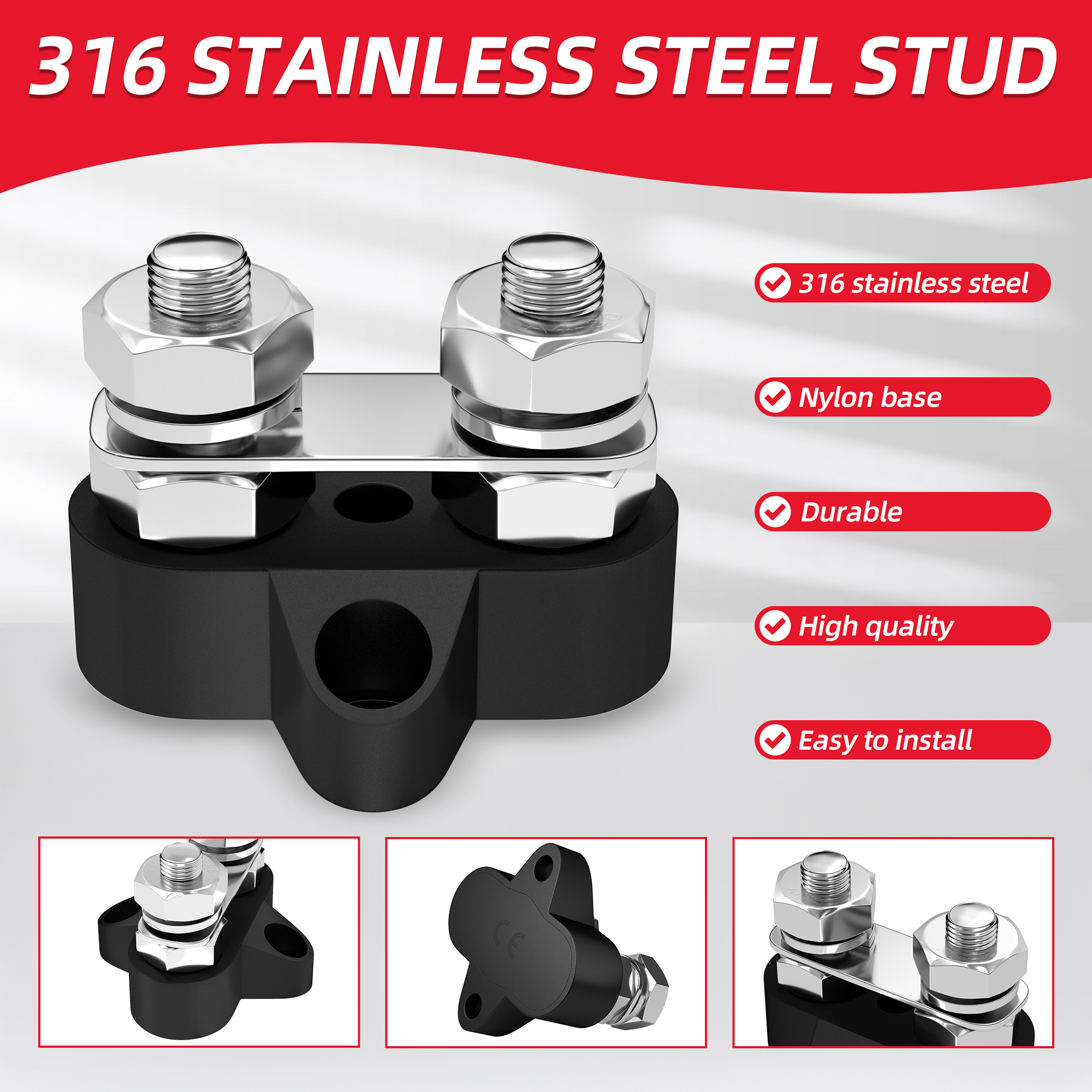

The terminal block is engineered for long-lasting performance and safety, constructed with flame-retardant plastic and 316 stainless steel to withstand demanding environments. The corrosion-resistant stainless steel construction ensures reliability and longevity, making it ideal for marine applications.
- Efficient Power Distribution with Customization Options
A 2mm removable copper connecting bar allows for customization based on your specific wiring requirements, further enhancing the terminal block’s already robust construction and exceptional reliability and durability. Compatible with 12V, 24V, and up to 48V systems, the terminal block can handle a continuous amperage of up to 80 amps, making it suitable for a broad range of power distribution needs.
- CE and UL Certified for Confidence and Performance
The terminal block is backed by CE and UL certifications, ensuring its safety and compliance with industry standards. Contact us today to learn more about this versatile and durable product and to find the perfect configuration to meet your specific needs. We offer the terminal block in various configurations, including those with dual M10, M8, or M6 studs, ensuring a perfect fit for your application.
BB2-1 Dual Stud Power Distribution Terminal Block Datasheet
| Part NO | BB2-1 |
| Connection Type | Red for Positive Black for Negative |
| Terminal Studs | 2 x M10 (3/8″) or 2 x M8 (5/16″) or 2 x M6 (1/4”) |
| Max Voltage | 48V DC |
| Max Continuous Amperage | 80 AMP @ 12V |
| Base Material | Nylon |
| Plate Material | Copper |
| Terminals Material | Stainless Steel |

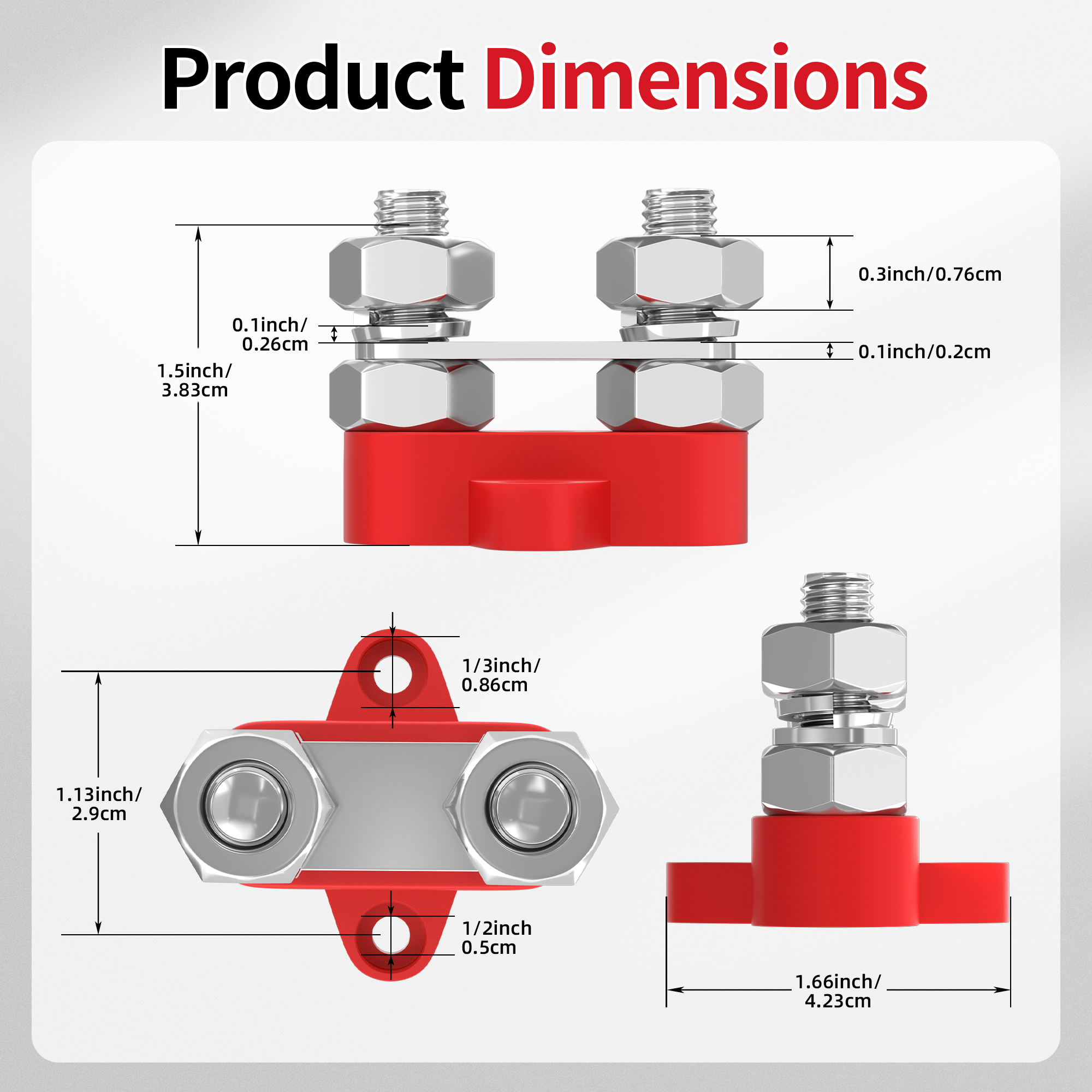

| Overall Dimension | 46mm x 43mm x 32.7mm (LxWxH) 1.77″x1.69″x1.26″ |
| Features | Removable Junction Block & Superior Corrosion Resistance |
If you have any questions about the product or would like more information, we encourage you to contact us via email at sales1@chinadaier.com or through our live chat. We are here to help you and give you the information you need.
