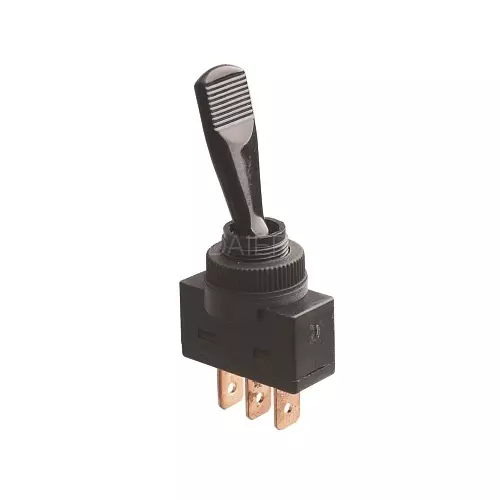

ASW-13-101 Auto Toggle Switch

ASW-13-101 Auto Toggle Switch


Part # ASW-13-101


ASW-13-101 Car Toggle Switch with Extended Handle, without LED

ASW-13-101 Auto Toggle Switch:

  • Simple Operation:Simply toggle the handle to select different functions according to the position. Rated voltage 12V DC; Rated current: 30A DC.


  • Sturdy Construction:Plastic and metal, exquisite appearance, rust prevention, corrosion resistance, safety and durability.


  • Great Compatibility:Control the on-off of AC and DC power supply circuit can stand alone or be locked together with other switches.


  • Wide Application:Widely used in automotive, commercial, RV, truck, and industrial applications.


For more details, pls contact me here

ASW-13-101 Auto Toggle Switch related product:

ASW-13-101: SPST    2 Pin   ON-OFF

ASW-13-111:  SPST    2 Pin   (ON)-OFF

ASW-13-102: SPDT   3 Pin   ON-ON

ASW-13-103: SPDT   3 Pin   ON-OFF-ON

ASW-13-101 CarToggle Switch datasheet below:

Rating: 20A 12VDC/10A 125VAC Contact Resistance: 50mΩ max
Electrical Life: ≥ 10,000 Cycles Mechanical Life: ≥ 100,000 Cycles
Dielectric strength: 1500VAC 1 minute Operating Temperature: -25℃~+85℃
Insulation Resistance: 100mΩ min (500VDC) OEM or ODM: Available
