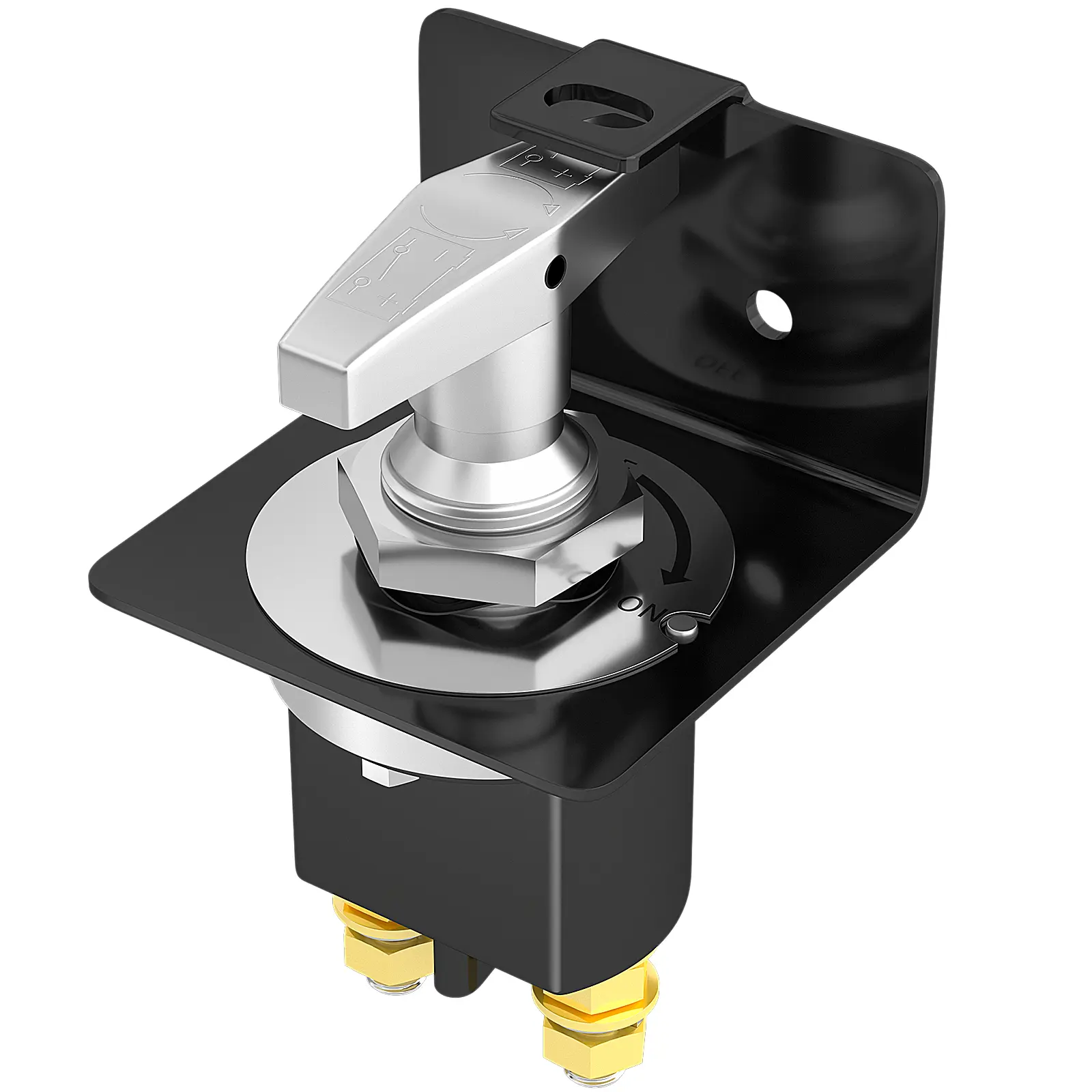

ASW-A808 500A 12VDC Heavy Duty Kill Battery Disconnect Switch with Lockout Plate

ASW-A808 Heavy Duty Kill Battery Disconnect Switch Details

• High-Capacity Power Handling

This heavy-duty battery disconnect switch is designed for high-current applications. Rated at 500A continuous and 5000A instantaneous current, it’s built to handle the demands of various vehicles and electrical systems. The switch is compatible with 12V, 24V, and 36V systems, offering versatile use.

• Durable and Weatherproof Construction

This disconnect switch is crafted from premium silver-plated copper and metal components for maximum conductivity and corrosion resistance. The sealed, waterproof design and heavy-duty die-cast handle ensure reliable performance in any environment, providing long-lasting durability and protection against the elements.

• Secure Lockout Feature for Added Safety

This battery disconnect switch features a built-in lockout plate. This plate allows you to securely lock the switch in the OFF position, preventing accidental activation and enhancing safety during maintenance or storage.

• Easy Installation and Operation

This 12V battery cut-off switch is designed for straightforward installation. It includes two 3/8″ (M10) threaded studs with nuts for easy connection to the negative battery cable. Operation is simple—just turn the switch handle to the ON or OFF position. The switch dimensions are compact, measuring 3.51″ x 2.53″ x 3.53″ (89.2 mm x 64.3 mm x 89.7 mm) with a mounting hole distance of 2.64″ (67mm), making it easy to integrate into various setups.

• Wide Range of Applications

This heavy-duty battery disconnect switch is suitable for various vehicles and applications. Its robust design and high current capacity make it ideal for use in cars, boats, RVs, yachts, trucks, and other vehicles where a reliable and heavy-duty disconnect is required.

ASW-A808 Heavy Duty Kill Battery Disconnect Switch Datasheet

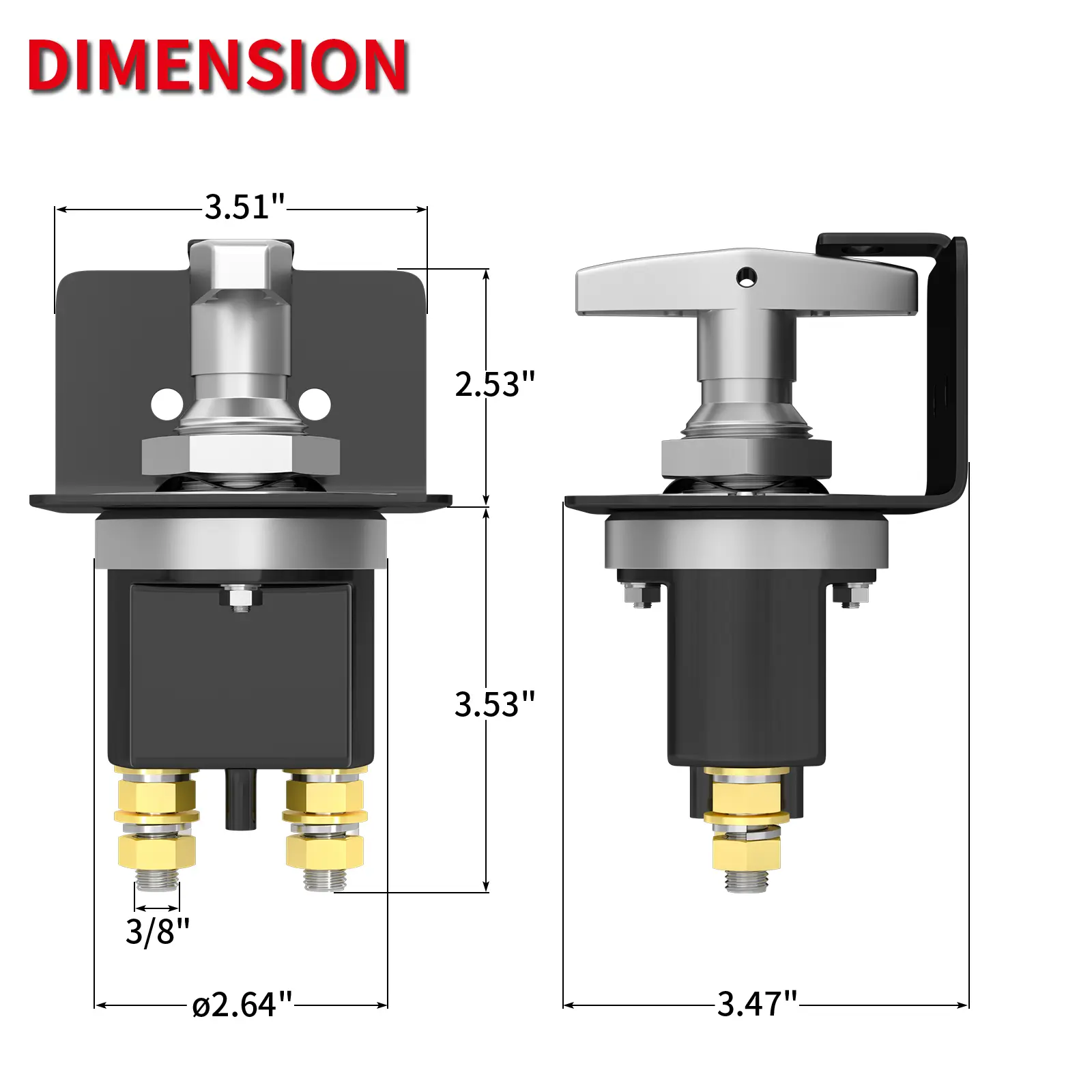

ASW-A808 Dimension
