ASW-23-103A 3 Position Toggle Switch ON OFF ON
Part # ASW-23-103A
ASW-23-103A 3 Position Toggle Switch ON OFF ON is used for 125VAC and 250VAC systems, 15A and 10A, SPDT, and 3P with screw terminals.
The connection terminals are made from brass to help resist corrosion.
Category :
Automotive Toggle Switch
ASW-23-103A 3 Position Toggle Switch ON OFF ON
-
Simple Operation
Simply toggle the handle to select different functions according to the position. Rated voltage: 125V AC and 250V AC; Rated current: 15A and 10A.
-
Sturdy Construction
Plastic and metal, exquisite appearance, rust prevention, corrosion resistance, safety and durability.
-
Great Compatibility
Control the on-off of AC and DC power supply circuit can stand alone or be locked together with other switches.
-
Wide Application
Widely used in automotive, commercial, RV, truck, and industrial applications.
ASW-23-103A Toggle Switch Detailed Information Below
Still have a question about the ASW-23-103A that wasn’t answered on this page? Please contact us at sales1@chinadaier.com!

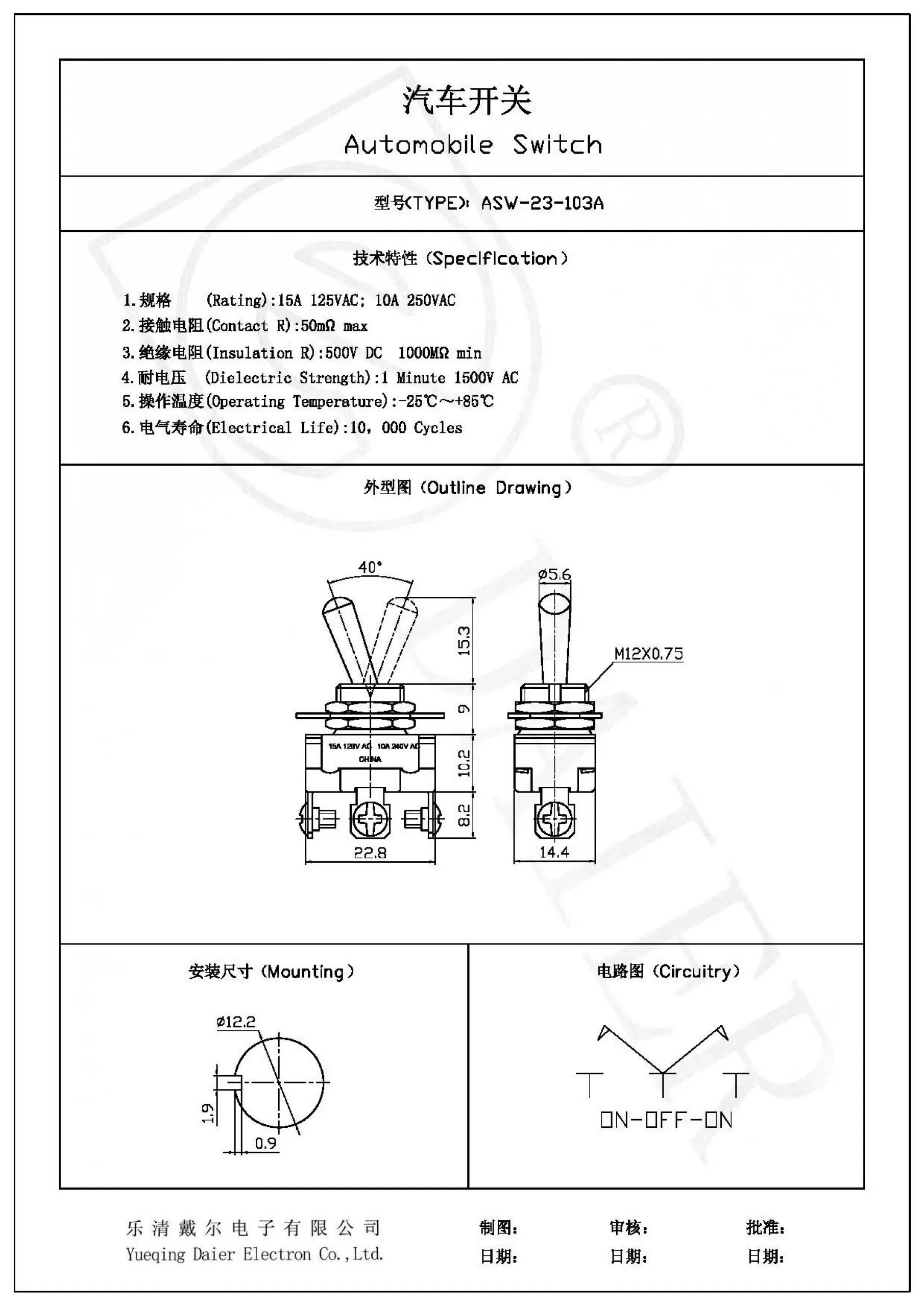

ASW-23-103A 3 Position Toggle Switch ON OFF ON Datasheet Below:
| Rating: | 15A 125VAC/10A 250VAC | Contact Resistance: | 50mΩ max |
| Electrical Life: | ≥ 10,000 Cycles | Mechanical Life: | ≥ 100,000 Cycles |
| Dielectric Strength: | 1500VAC 1 Minute | Operating Temperature: | -25℃~+85℃ |
| Insulation Resistance: | 1000mΩ min (500VDC) | OEM or ODM: | Available |
