ASW-23-101 Metal Low Voltage Toggle Switch
Part # ASW-23-101
ASW-23-101 Metal Low Voltage Toggle Switch is used for 125VAC and 250VAC systems, 6A and 3A, SPST, ON-OFF, and 2P with screw terminals.
These toggle switches have a threaded mounting stem with retaining nuts for panel mounting.
Category :
Automotive Toggle Switch
ASW-23-101 Metal Low Voltage Toggle Switch
-
Simple Operation
Simply toggle the handle to select different functions according to the position. ASW-23-101 Rated voltage: 125V AC and 250V AC; Rated current: 6A and 3A. ASW-23-101A Rated voltage: 125V AC and 250V AC; Rated current: 15A and 10A.
-
Sturdy Construction
Plastic and metal, exquisite appearance, rust prevention, corrosion resistance, safety and durability.
-
Great Compatibility
Control the on-off of AC power supply circuit can stand alone or be locked together with other switches.
-
Wide Application
Widely used in automotive, commercial, RV, truck, and industrial applications.
ASW-23-101 Toggle Switch Related Product
| ASW-23-101 | 6A 125VAC/3A 250VAC |
| ASW-23-101A | 15A 125VAC/10A 250VAC |
ASW-23-101 Toggle Switch Detailed Information Below
Still have a question about the ASW-23-101 Toggle Switch that wasn’t answered on this page? Please contact us at sales1@chinadaier.com!
ASW-23-101 Toggle Switch Datasheet Below:
| Rating: | 6A 125VAC/3A 250VAC | Contact Resistance: | 50mΩ max |
| Electrical Life: | ≥ 10,000 Cycles | Mechanical Life: | ≥ 100,000 Cycles |
| Dielectric Strength: | 1500VAC 1 Minute | Operating Temperature: | -25℃~+85℃ |
| Insulation Resistance: | 1000mΩ min (500VDC) | OEM or ODM: | Available |

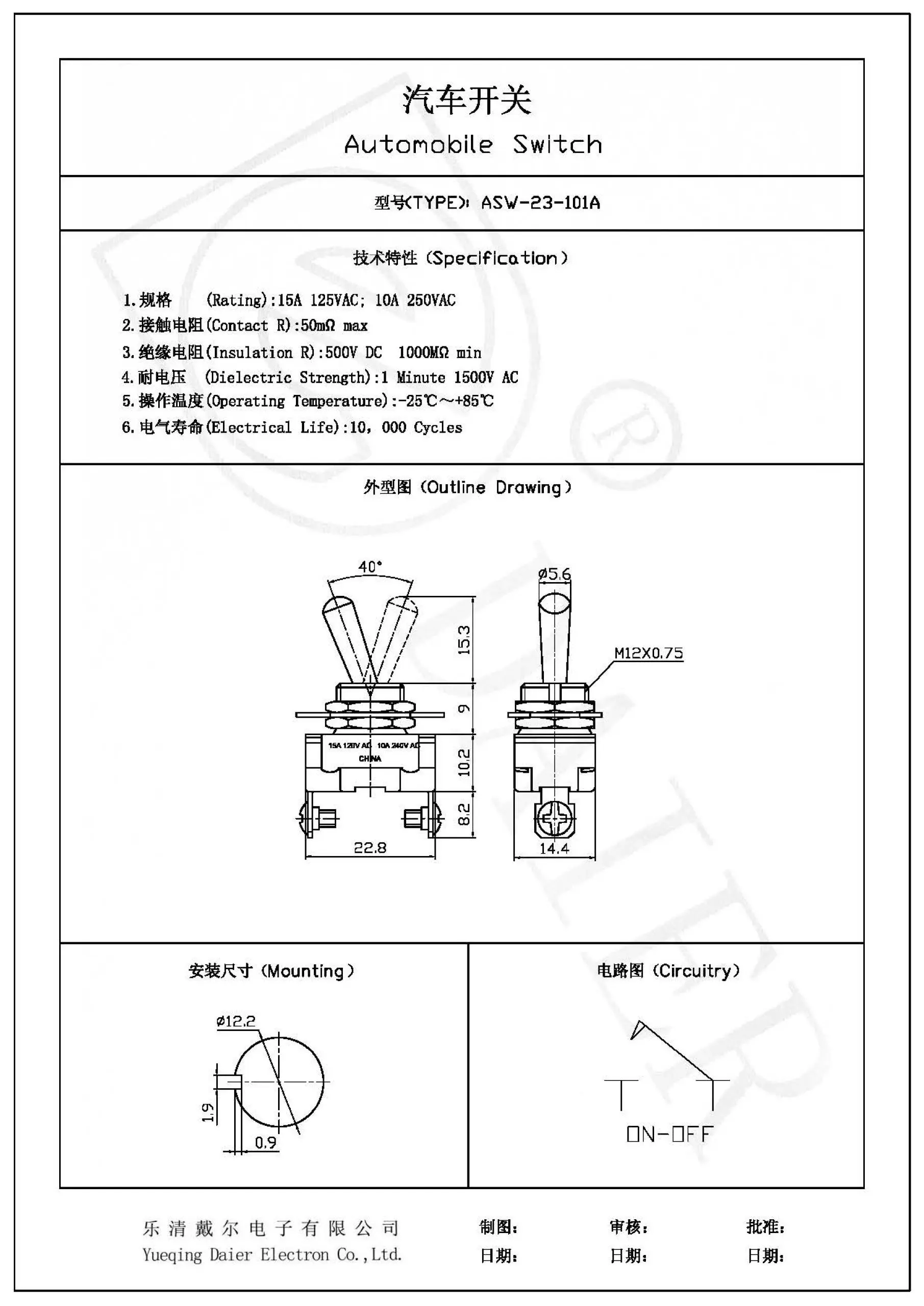

ASW-23-101A Toggle Switch Datasheet Below:
| Rating: | 15A 125VAC/10A 250VAC | Contact Resistance: | 50mΩ max |
| Electrical Life: | ≥ 10,000 Cycles | Mechanical Life: | ≥ 100,000 Cycles |
| Dielectric Strength: | 1500VAC 1 Minute | Operating Temperature: | -25℃~+85℃ |
| Insulation Resistance: | 1000mΩ min (500VDC) | OEM or ODM: | Available |
