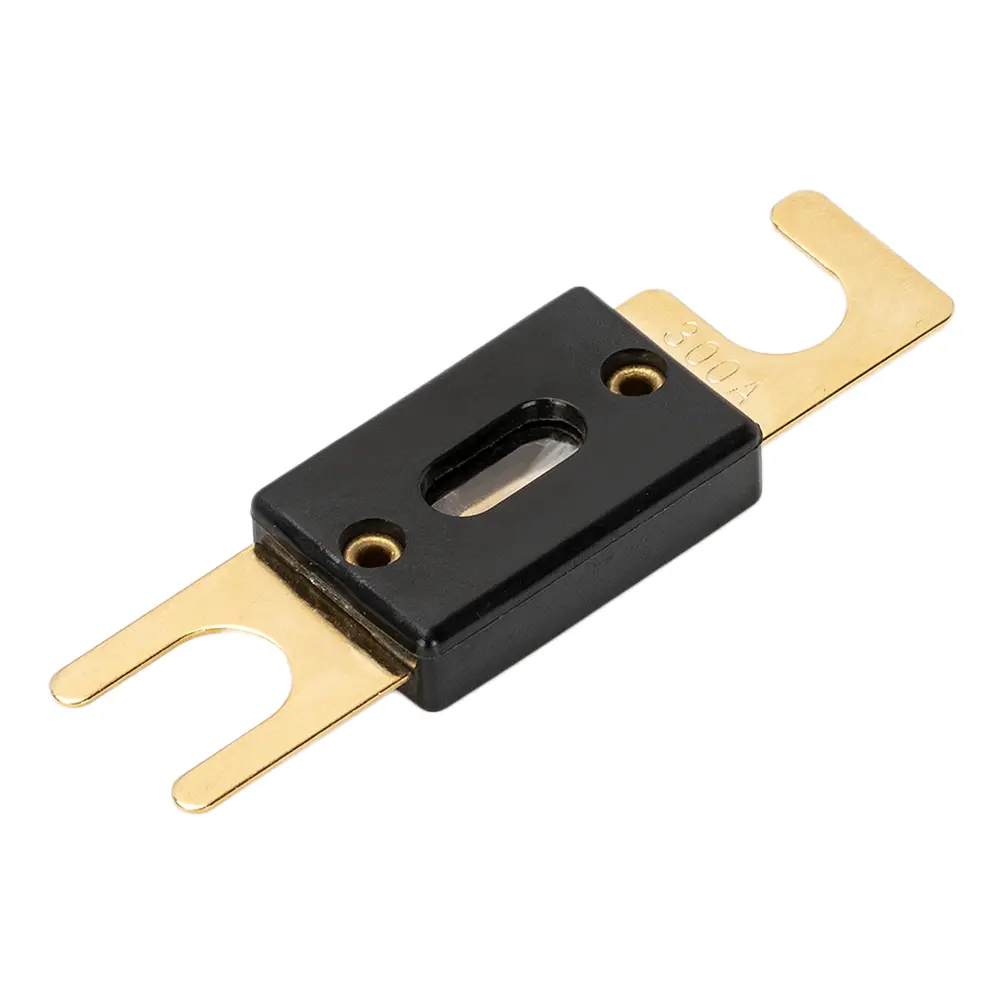

ANLF1 Automotive ANL Fuse – 35 to 750A
Part#ANLF1
The ANL fuse is available for systems up to 32V DC, rating current is 35 to 750A, is waterproof, and has a protective non-conductive resistant cover.
Each fuse is marked with a current specification number on the top for easy identification and to avoid incorrect use.
Category :
FuseANLF1 Automotive ANL Fuse – 35 to 750A Details
- High-quality Material
ANL fuses are made from copper, durable and reliable in use, heat resistant, fusible and conductive, a good material will ensure a long life.
- Easy Identification
Each fuse is marked with a current specification number on the top to make it easy to identify the current specification and avoid using the wrong fuse specification.
- Widely Application
Fuses protect circuits and electrical equipment, facilitate the addition of extra circuits to cars, CD players, fax machines, etc., and provide protection for amplifiers, speakers, stereos and other components.
ANLF1 Datasheet
| Maximum Voltage | 32V DC |
| Rating Current | 35 A to 750 A |
| Interrupt Capacity | 2000A @ 32V DC |
| Minimum Operating Temperature | -40° C |
| Maximum Operating Temperature | 125° C |
| Terminals Materials | Copper |
| Housing Material | PPA |
