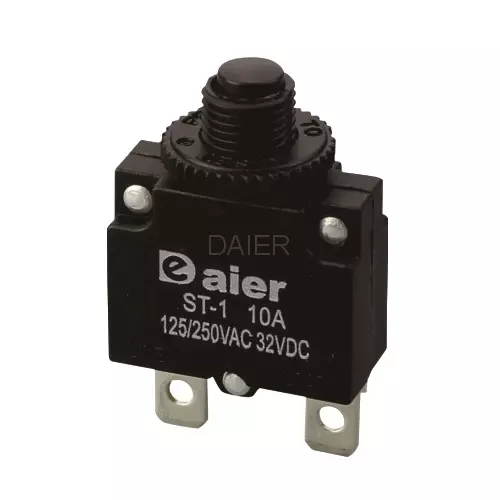

ST-1 amp circuit breaker:

Thermal push button circuit breakers are single-pole, push-to-reset breakers with a compact design that protects your equipment and applications. The push button breakers utilize a simple and precise design that features few moving parts.

The design allows the thermal circuit breaker to be extremely cost-effective while remaining durable and reliable. A push button breaker is a great choice for reliable circuit protection that also needs resistance against shock and vibration. Each push button breaker provides a consistent trip point over temperatures ranging from -10°C to +60°C. Select a low amp or high amp thermal circuit breaker for your household and commercial applications, transportation equipment, marine, audio-visual, medical, and other power supplies.

The quick connect design of the push button breaker makes installation simple and provides an easy to use thermal circuit breaker for your application. Get the perfect combination of easy to use, highly protective, and cost-effective protection with amp circuit breaker.

Pls check the datasheet below:


Rating Current: 3-25A Working Voltage: min. 12V, max. 250V (Double usage of DC and AC)
Insulated Resistance: ≥100MΩ Dielectric Strength: ≥1500VAC (1mini)
Electrical Life: ≥10,000 times OEM or ODM: Available
