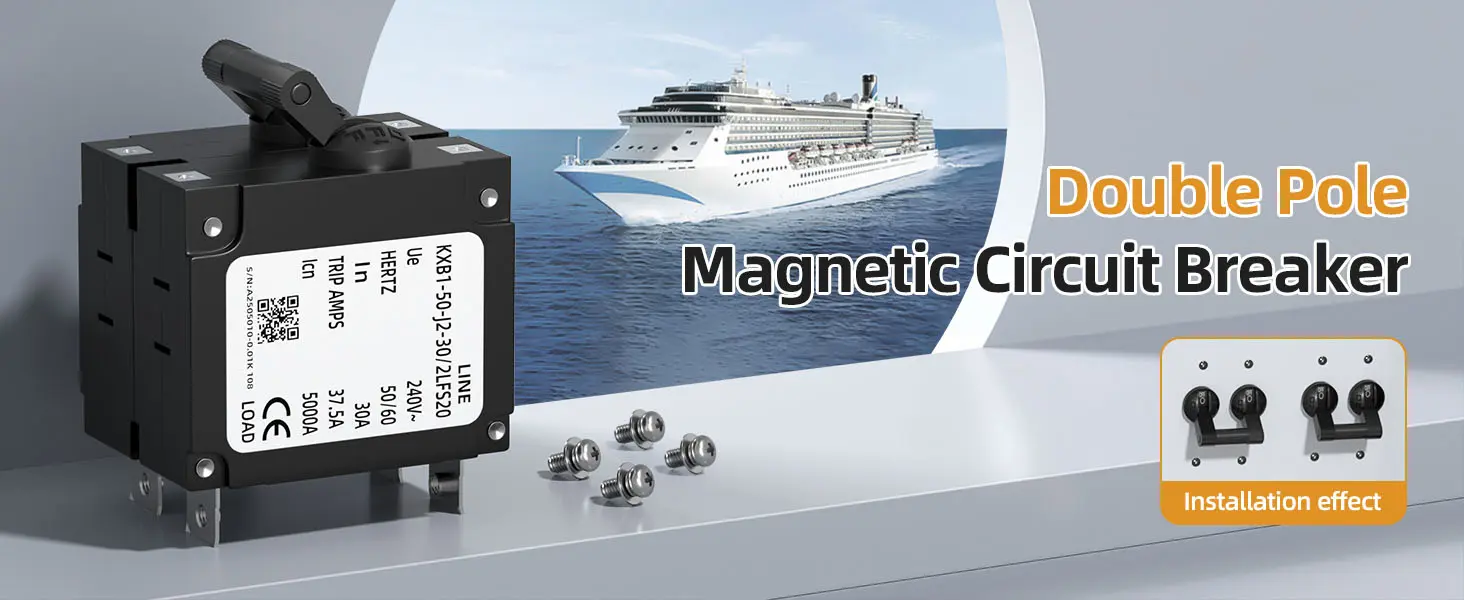

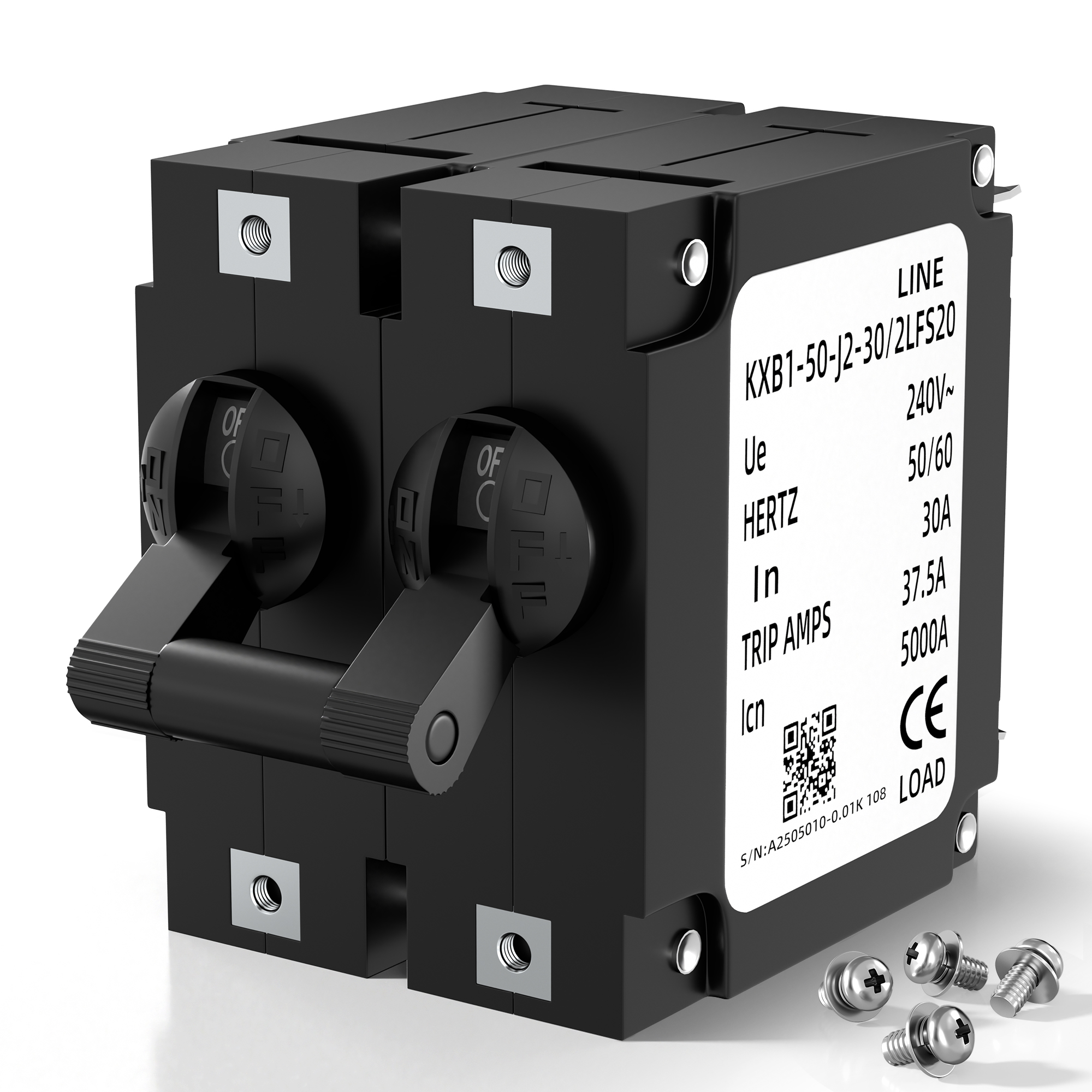

ST-3-AC220V30A-UL 80V DC / 240V AC 30A Double Pole Hydraulic Magnetic Circuit Breaker with Toggle – Panel Mount
Part#ST-3-AC220V30A-UL
This 80V DC / 240V AC 30A double pole hydraulic magnetic circuit breaker offers robust overload and short-circuit protection with CE & UL certification.

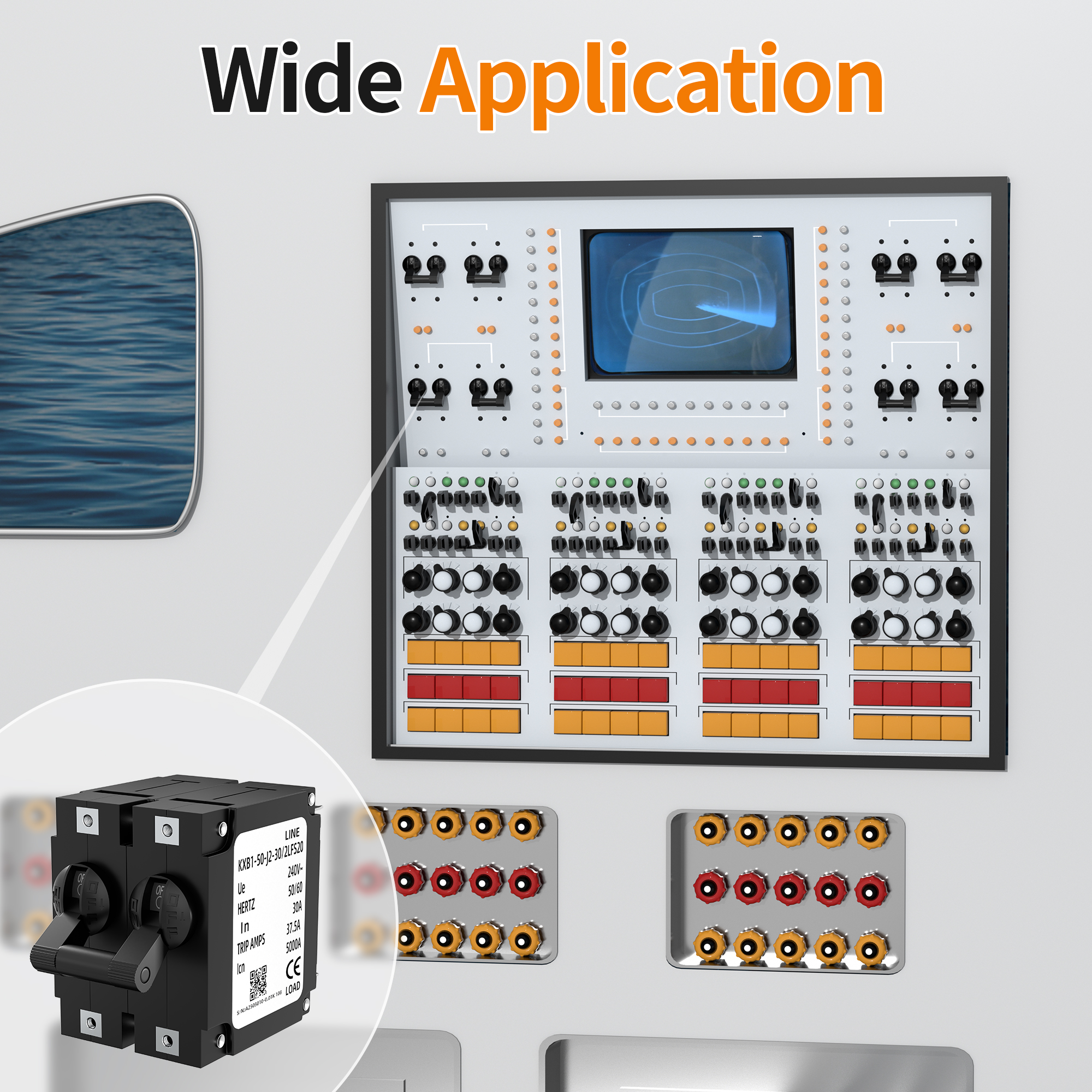

Featuring a panel-mount design with a toggle switch, this hydraulic magnetic circuit breaker is ideal for control panels, marine applications, and industrial equipment requiring precise overcurrent defense.

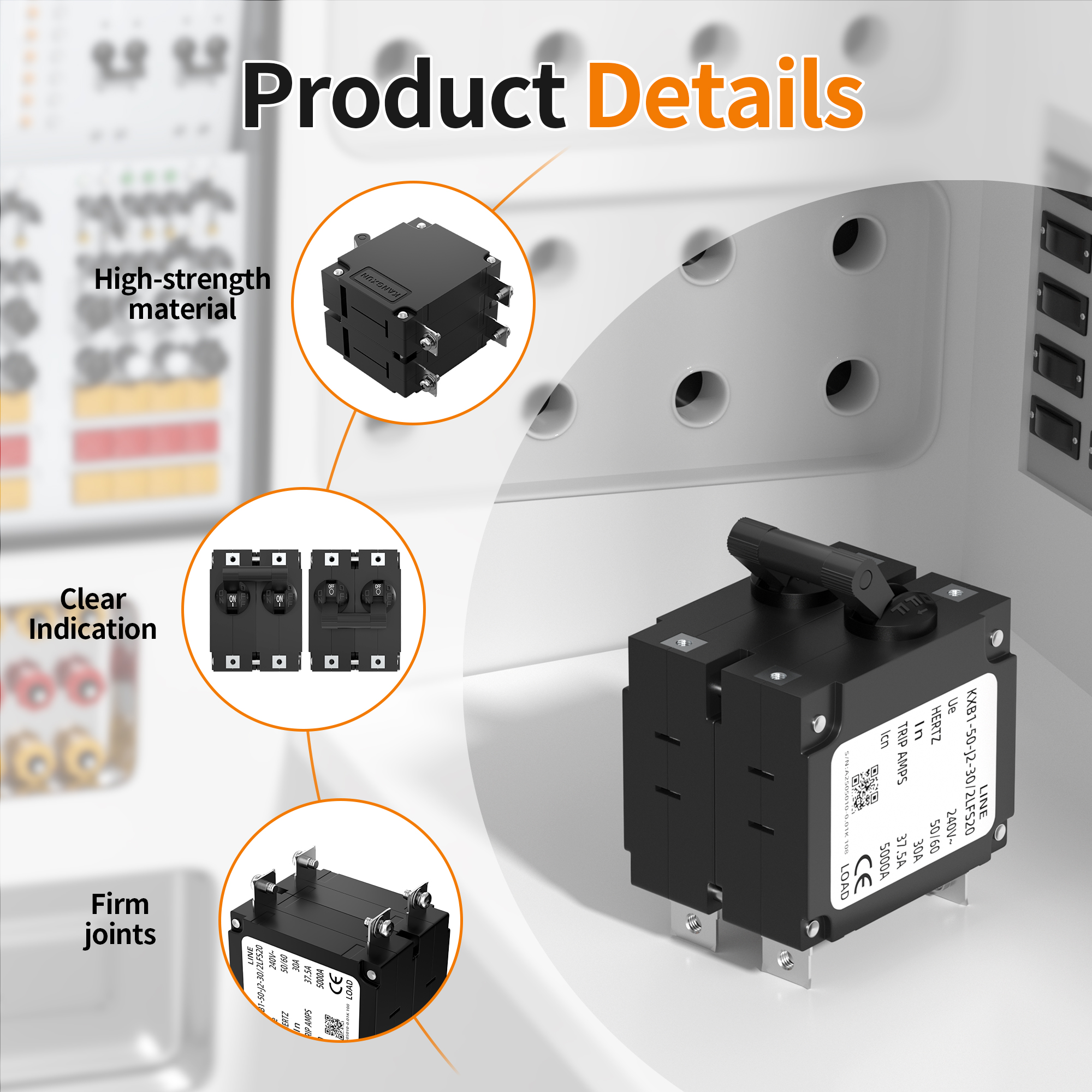

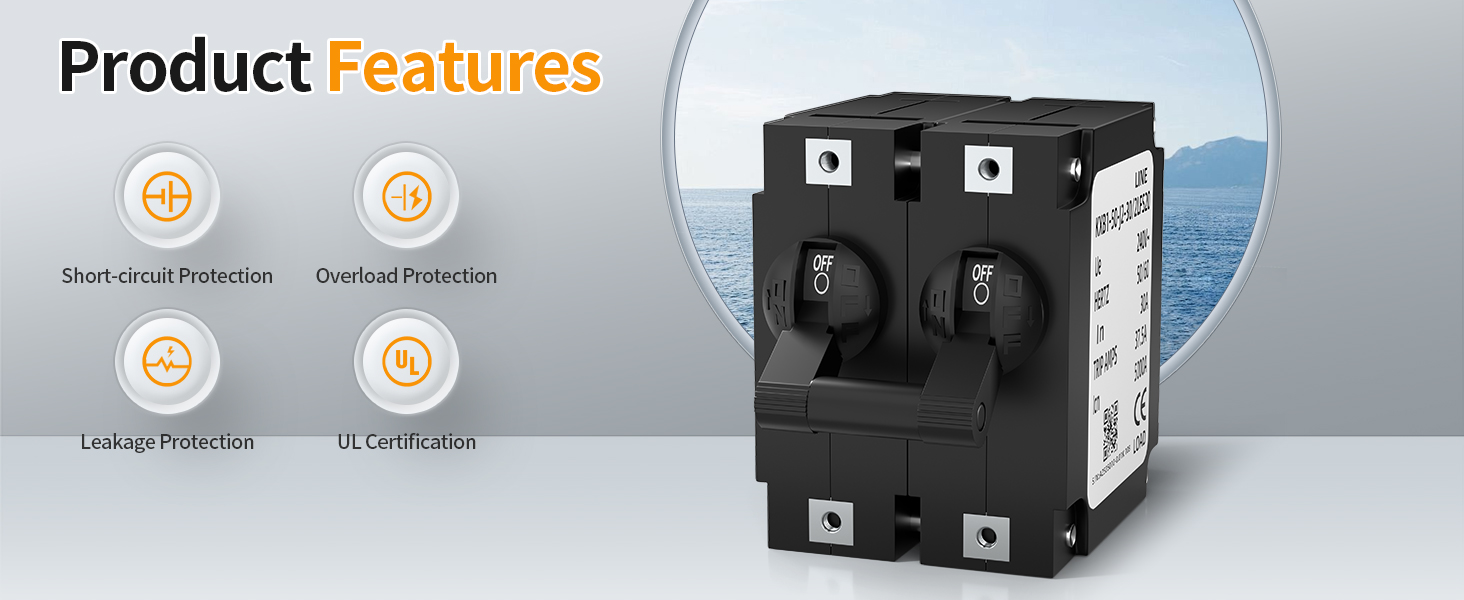

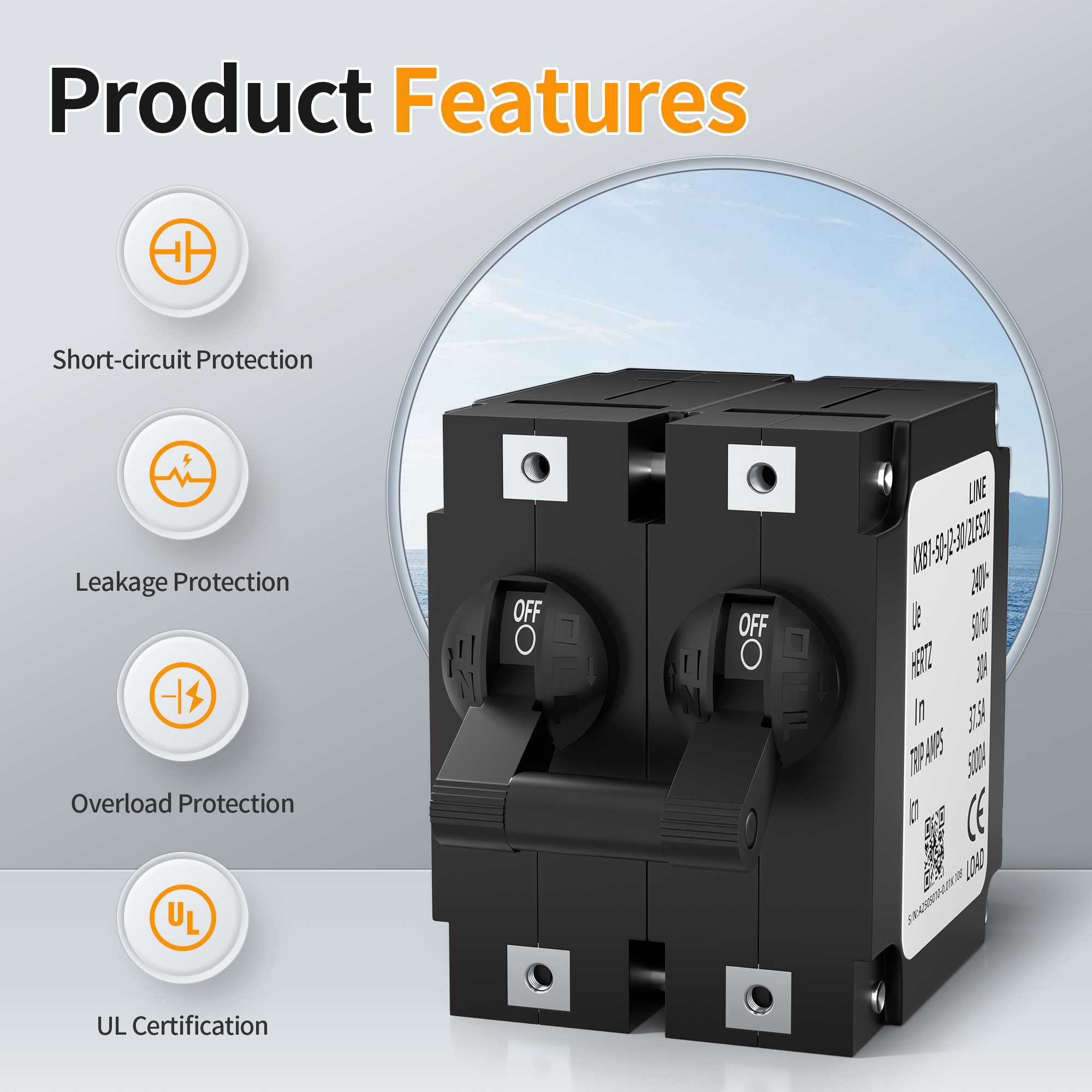

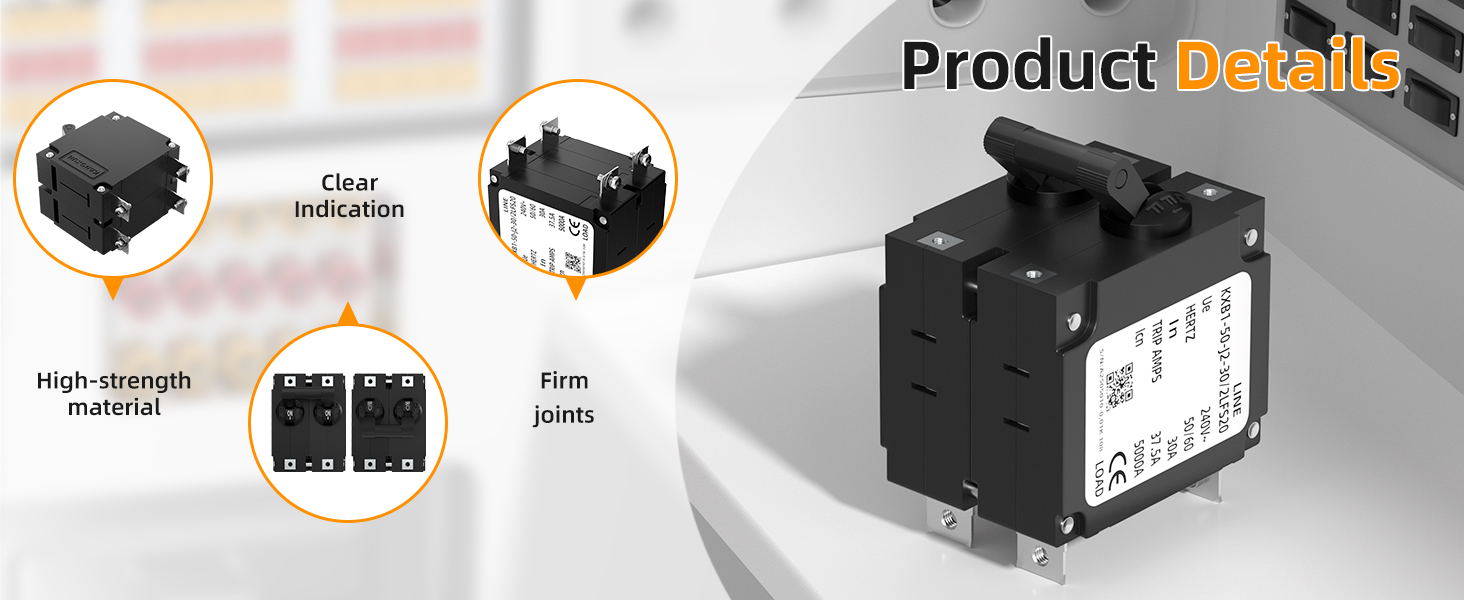

ST-3-AC220V30A-UL 30A Double Pole Hydraulic Magnetic Circuit Breaker Features
- Versatile Dual-Voltage Protection
This double-pole circuit breaker is expertly engineered for robust performance in both DC 80V and AC 240V electrical systems. The two-pole protective device provides synchronized interruption, safeguarding two circuits or a single 240V line with a reliable 3000A breaking capacity. This AC/DC compatible interrupter offers flexible application across diverse electrical setups.
- Internationally Certified Performance
Engineered for global compliance, this electrical safety switch adheres to stringent standards including GB17701, IEC60934, IEC60947-2, and UL1077. The certified circuit protector features a rated insulation voltage of 500V, ensuring enhanced safety and operational integrity. Its conformance to these recognized benchmarks makes it a trusted component for critical installations.
- Enhanced Operational Endurance
Designed for sustained reliability, this industrial-quality circuit breaker offers an impressive mechanical lifespan of 10,000 operations. The durable dual-toggle switch also ensures a significant electrical lifespan of 6,000 operations, providing consistent protection over extended use. A rated impulse withstand voltage of 4000V further underscores its resilience against electrical stresses.
- Broad Environmental Adaptability
This heavy-duty circuit protector is constructed to function dependably across a wide operating temperature range, from -40°C to +85°C. The resilient safety interrupter performs optimally at altitudes up to 2000 meters and in environments with relative air humidity up to 95%. Its design is suited for locations free from explosive atmospheres and corrosive elements.
- Predictable Overcurrent Response

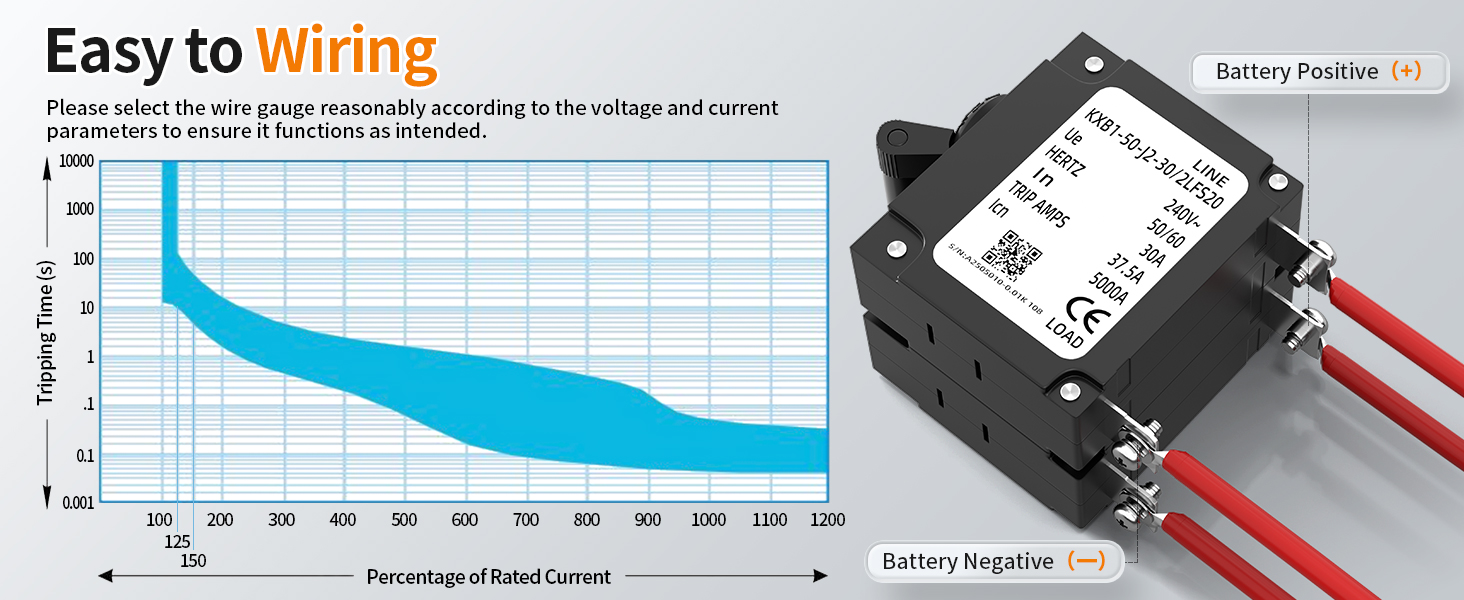

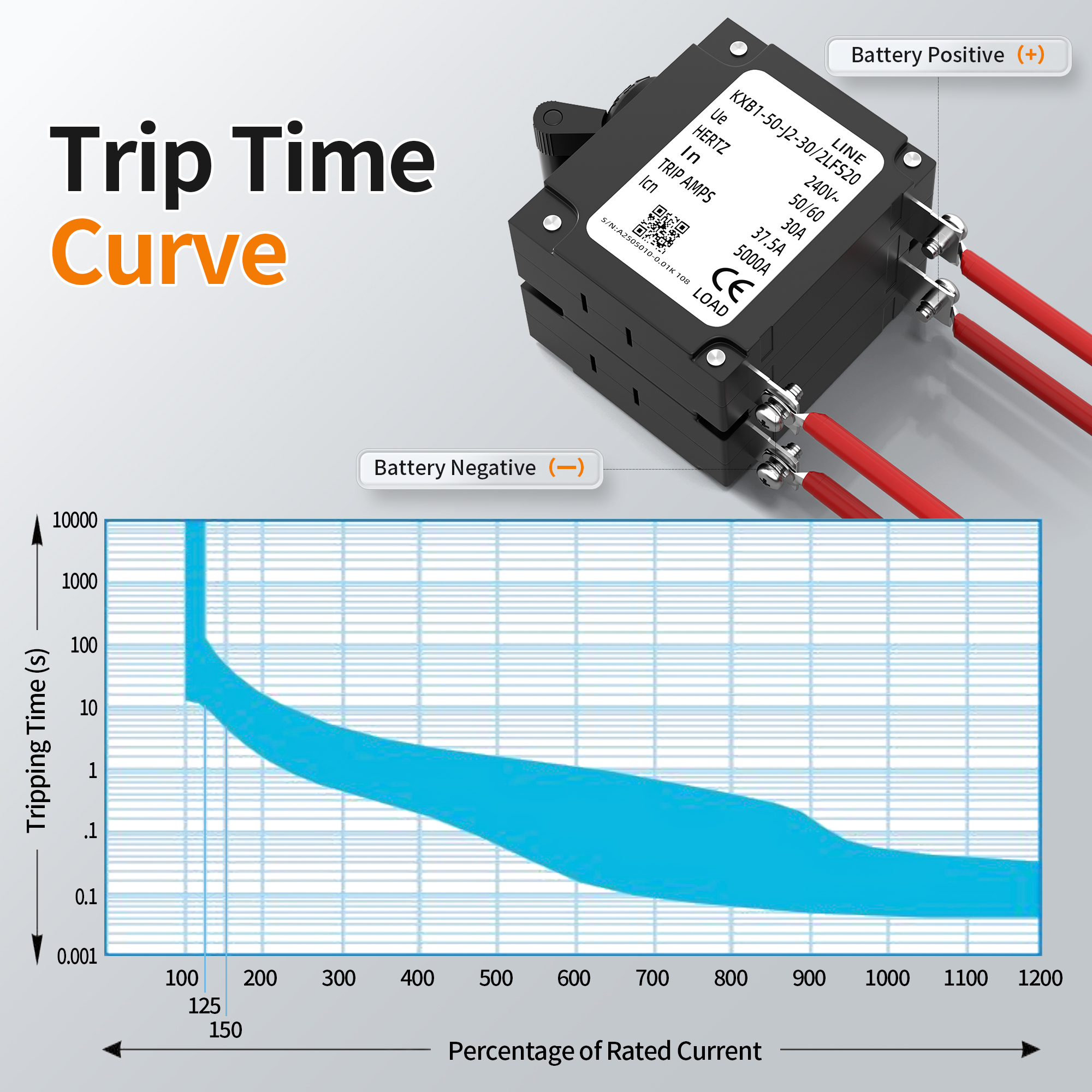

Utilizing a Z2/J2 characteristic trip curve, this protective toggle breaker delivers precise and predictable tripping action under overload conditions. For example, the safety cut-off device is designed to interrupt the circuit within 3 to 70.0 seconds when subjected to 135% of its rated current. This calibrated trip mechanism ensures tailored protection for connected electrical systems and equipment.

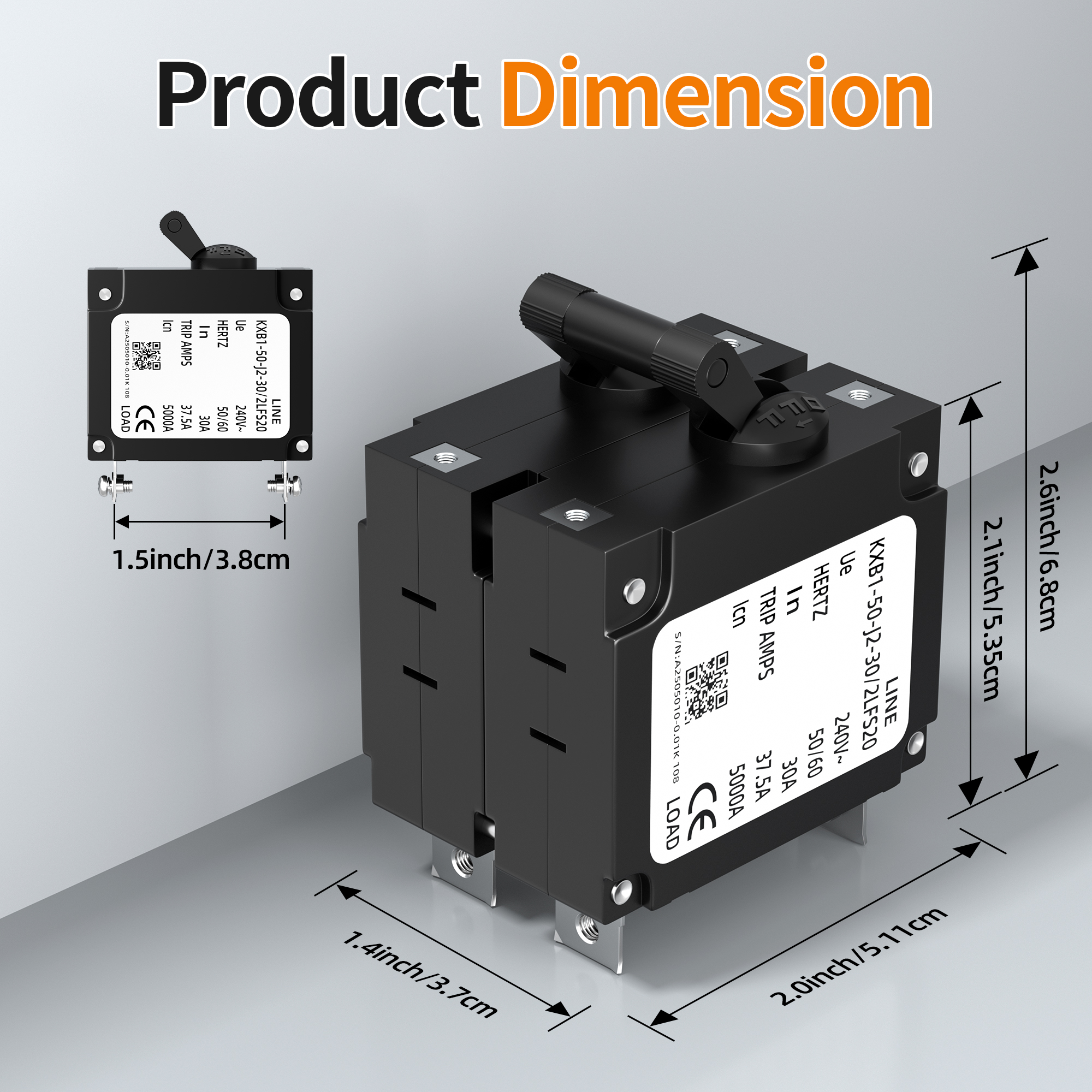

ST-3-AC220V30A-UL 30A Double Pole Hydraulic Magnetic Circuit Breaker Datasheet
| Part NO | ST-3-AC220V30A-UL |
| Rated Working Voltage | DC 80V / AC 240V |
| Rated Current Range | 30A |
| Number of Poles | 2 |
| Breaking Capacity | 3000A |
| Mechanical Lifespan | 10,000 operations |
| Electrical Lifespan | 6,000 operations |
| Rated Insulation Voltage | 500V |
| Rated Impulse Withstand | 4000V |
| Operating Temperature | -40°C to +85°C |
| Operating Altitude | ≤ 2000 meters |
| Relative Humidity | ≤ 95% |
| Compliant Standards | GB17701, GB/T14048.2, IEC60934, IEC60947-2, UL1077 |
| Trip Curve Type | Z2/J2 (example: 135% load trips in 3-70s) |
| Mounting Type | Panel Mount |
| Actuator Type | Toggle Switch |
