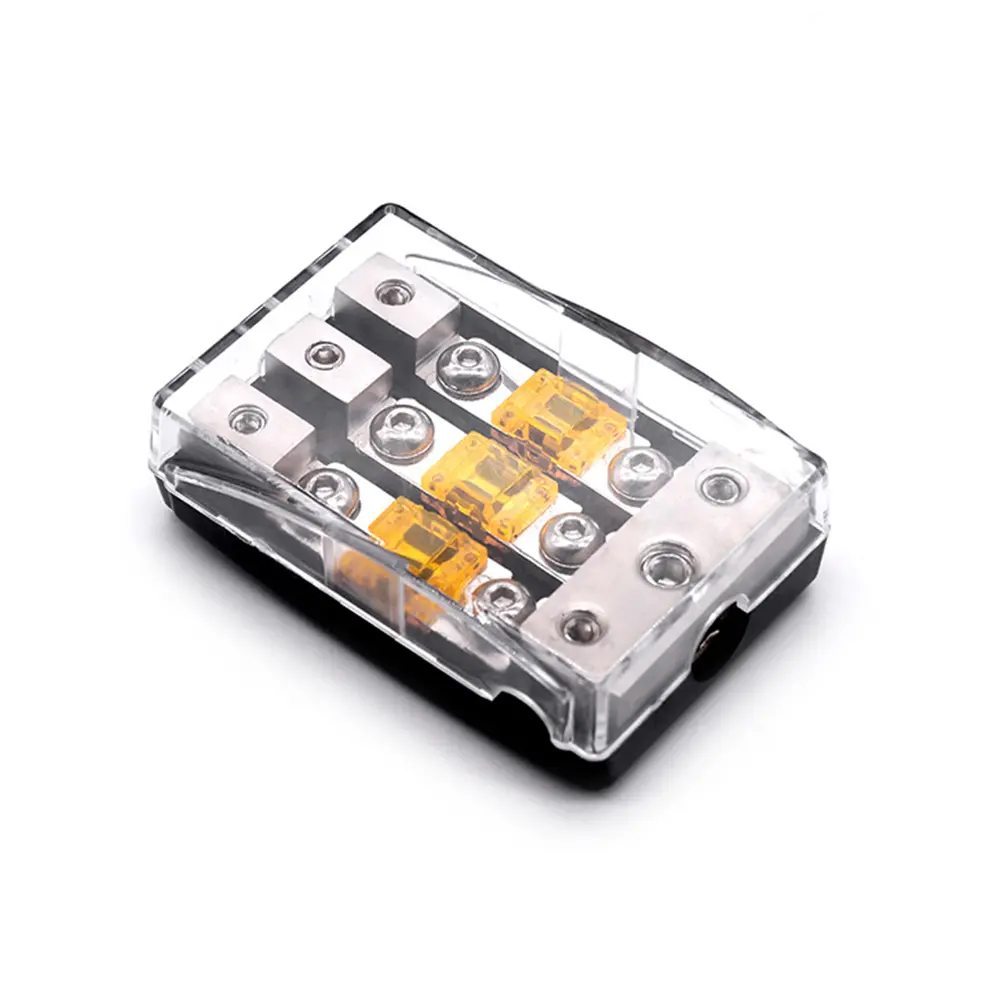

AFS-23 3 Way Fused Distribution Block
Part#AFS-23
The 3 way fused distribution block is available for systems up to 32 volts DC, rating current is 20 to 200A, and suitable for 2/4 ga in, 8 ga out.
The distribution block is made of a high-conductivity zinc alloy with good conductivity, strong craftsmanship, and resistance to high-temperature pressure.
AFS-23 3 Way Fused Distribution Block Details
- Reliable Material
The fuse holder is made of high-quality transparent PC material, the fuse holder has good dust resistance and durability, which can protect the fuse well.
- Safety Protection
This fuse holder will not enter water after being immersed in water for a short period of time, providing waterproof protection for the fuse, and also the material has a fire retardant effect as well.
- High Compatibility
It is suitable for input and output 4-gauge wire or 8-gauge wire, compatible with a rated current of 20-200A. This fuse holder can well protect the circuit from overload and short circuit.
- Widely Application
ANL (AFS) fuse holders are ideal for inverters, car audio amplifiers, and other 20-200A current applications to protect your electronic devices.
AFS-23 Datasheet
| Fuse Type | Mini ANL Fuse |
| Material | Transparent PC and Zinc Alloy |
| Rating Voltage | 32V DC |
| Rating Current | 20 A to 200 A |
| Wire Size | In: 1X2 Ga + 2X4 Ga, Out: 3X8 Ga Out |
