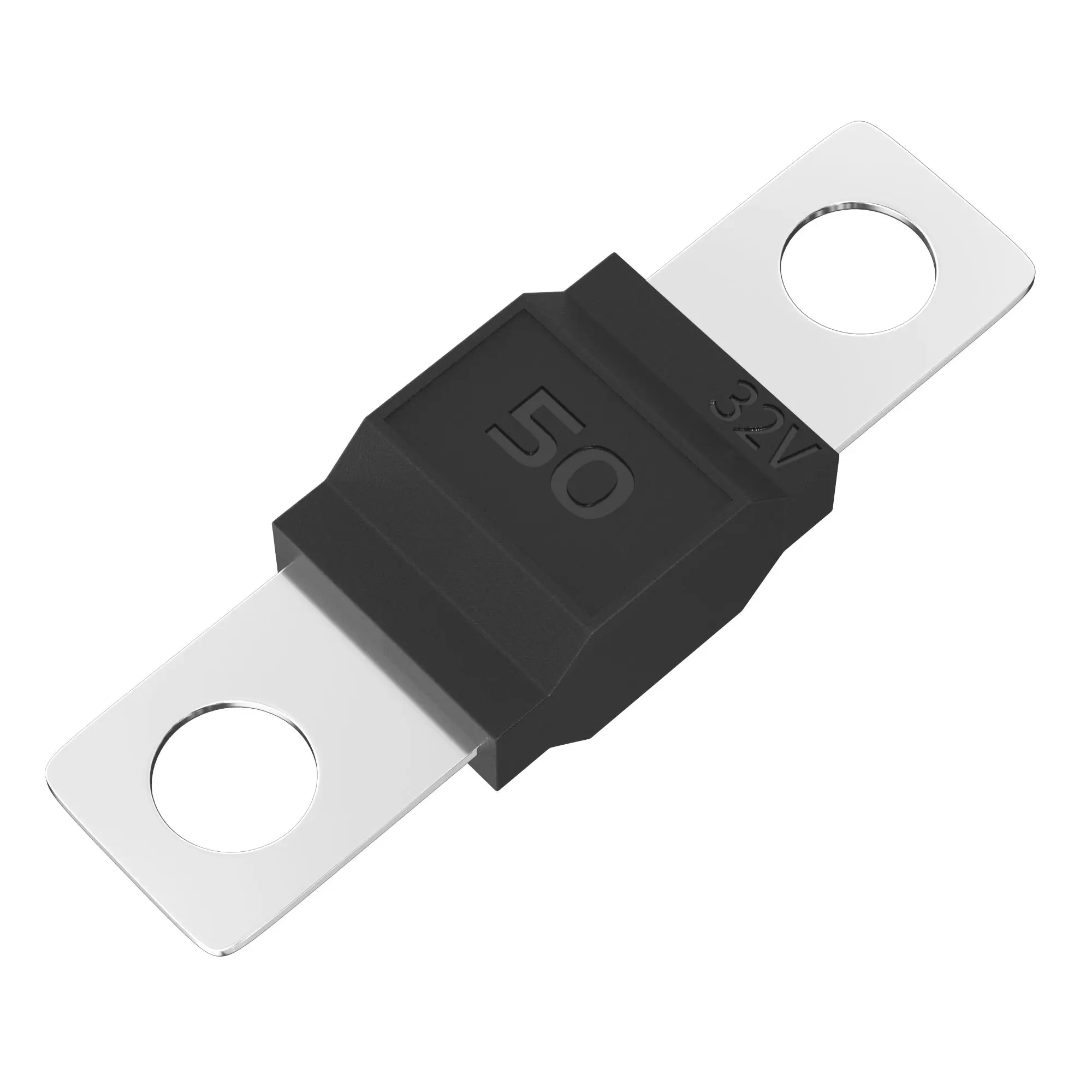

ABF-405 Black Bolt-Down MIDI AMI Fuse – 30 to 200A
Part#ABF-405
The black bolt-down MIDI AMI fuse is available for systems up to 32 DC, rating current is 30 to 200A and is made with Tin-plated copper terminals.
Fast-acting type fuses use color-coded ampere labels to aid in identification, and clear covers make it easier to see when fuses are blown.
Category :
Fuse
ABF-405 Black Bolt-Down MIDI AMI Fuse – 30 to 200A Details
- Material
High-quality plastic insulator, resistant to high temperatures and fusing, prevents sparking when fuses react. Terminals are made of tinned zinc with high conductivity, so that current can be combined quickly and accurately.
- Durable Use
High contact safety due to reinforcement material on the holes, less deformation, less wear and tear, and long service life.
- Easy Identification
Each current specification is distinguished by a different color, and each fuse is marked with a current specification number on the top for easy identification.
- Widely Application
High-current screw-type fuses are suitable for cars, trucks, construction vehicles, agricultural machinery, buses and caravans.
ABF-405 Datasheet
| Style | Bolt-on Type |
| Maximum Voltage | 32V DC |
| Rating Current | 30 A to 200 A |
| Interrupt Capacity | 5000A @ 16V DC; 2000A @ 32V DC |
| Minimum Operating Temperature | -40° C |
| Maximum Operating Temperature | 125° C |
| Blade Material | Tin-Plated Copper CDA 110/UNS11000 |
| Maximum Torque | 40 in-lb (4.52 Nm) |
Still, have a question about the ABF-405 that wasn’t answered on this page? Please get in touch with us at sales1@chinadaier.com or live chat!
