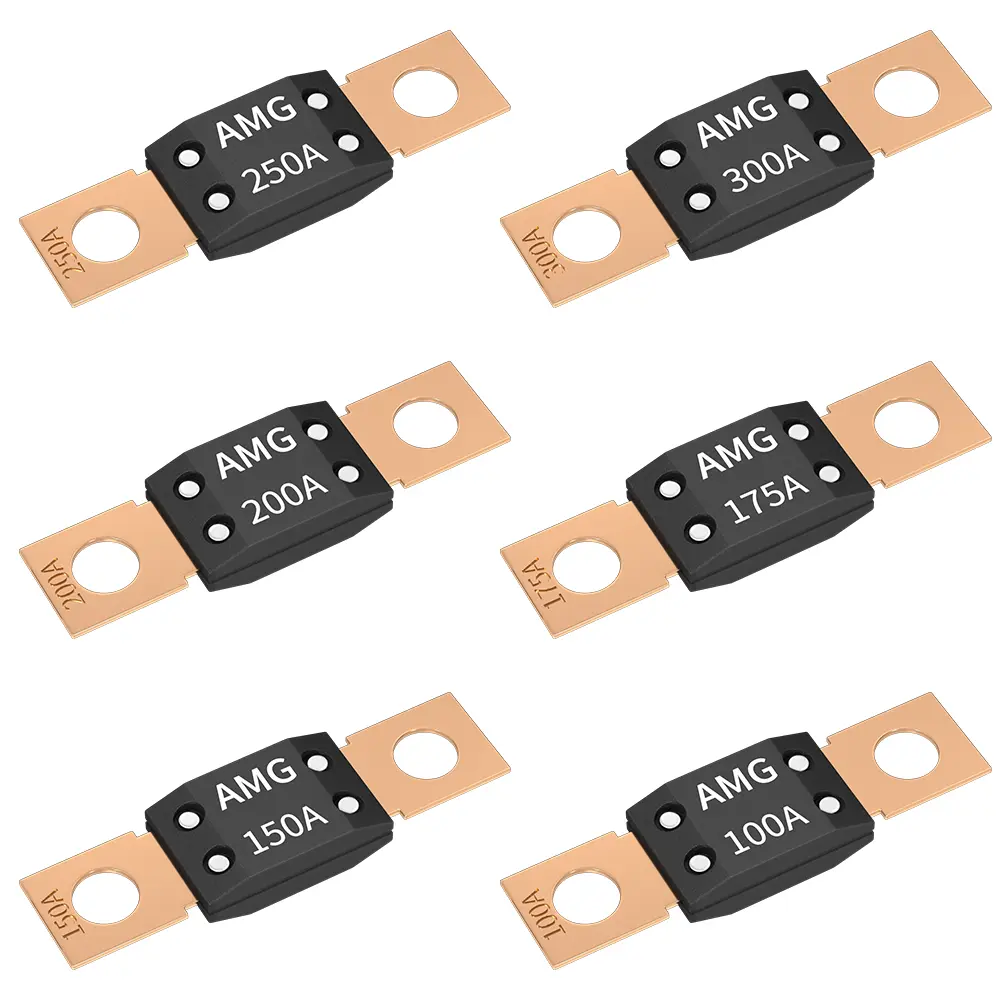

ABF-406 Automotive Bolt-Down MEGA Fuse – 100 to 300A


The MEGA fuse is available for systems up to 32V DC, rated current is 100 to 300A, and is ideal for battery and alternator protection applications.

MEGA fuses are designed for the protection of high-current circuits up to 300 amps, using diffusion pill technology, and also have a time-delay feature.

Category :


ABF-406 Automotive Bolt-Down MEGA Fuse – 100 to 300A Details

  • Material

High-quality plastic insulator, resistant to high temperatures and fusing, prevents sparking when fuses react. Terminals are made of tinned zinc with high conductivity, so that current can be combined quickly and accurately.

  • Durable Use

High contact safety due to reinforcement material on the holes, less deformation, less wear and tear, and long service life.

  • Easy Identification

Each current specification is distinguished by a different color, and each fuse is marked with a current specification number on the top for easy identification.

  • Widely Application

High-current bolt-down type fuses are suitable for cars, trucks, construction vehicles, agricultural machinery, buses, and caravans.

ABF-406 Datasheet

Style Bolt-down Type
Maximum Voltage 32V DC
Rating Current 100 A to 300 A
Interrupt Capacity 2000A @ 32V DC
Minimum Operating Temperature -40° C
Maximum Operating Temperature 125° C
Terminals Materials Copper (Silver plated copper available)
Housing Material PPA

Do you have a question about the ABF-406 that is not answered on this page? Please contact us at sales1@chinadaier.com or live chat!
