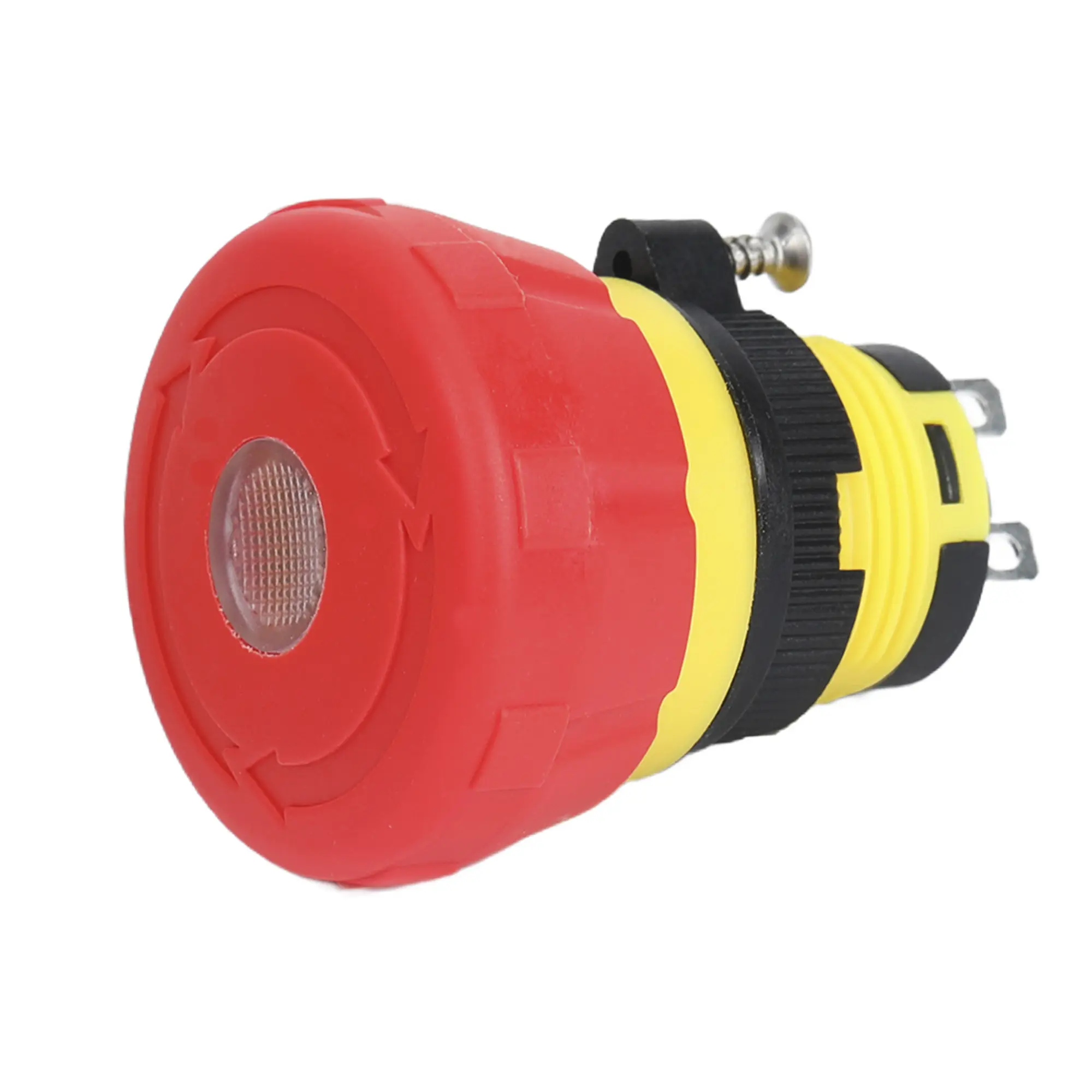

A16-16SHORT-N 16mm Illuminated Emergency Stop Switch | LED Luminous 5A E-Stop Button
P/N: A16-16SHORT-N
This 16mm illuminated emergency stop switch features an integrated center LED indicator, silver alloy contacts, and an IP65 or IP67 waterproof housing.
The luminous latching mushroom button provides highly visible status feedback and 5A 250V safety control for low-light industrial environments.
Category :
Industrial Push Button Switch
A16-16SHORT-N 16mm Illuminated Emergency Stop Switch Features & Benefits

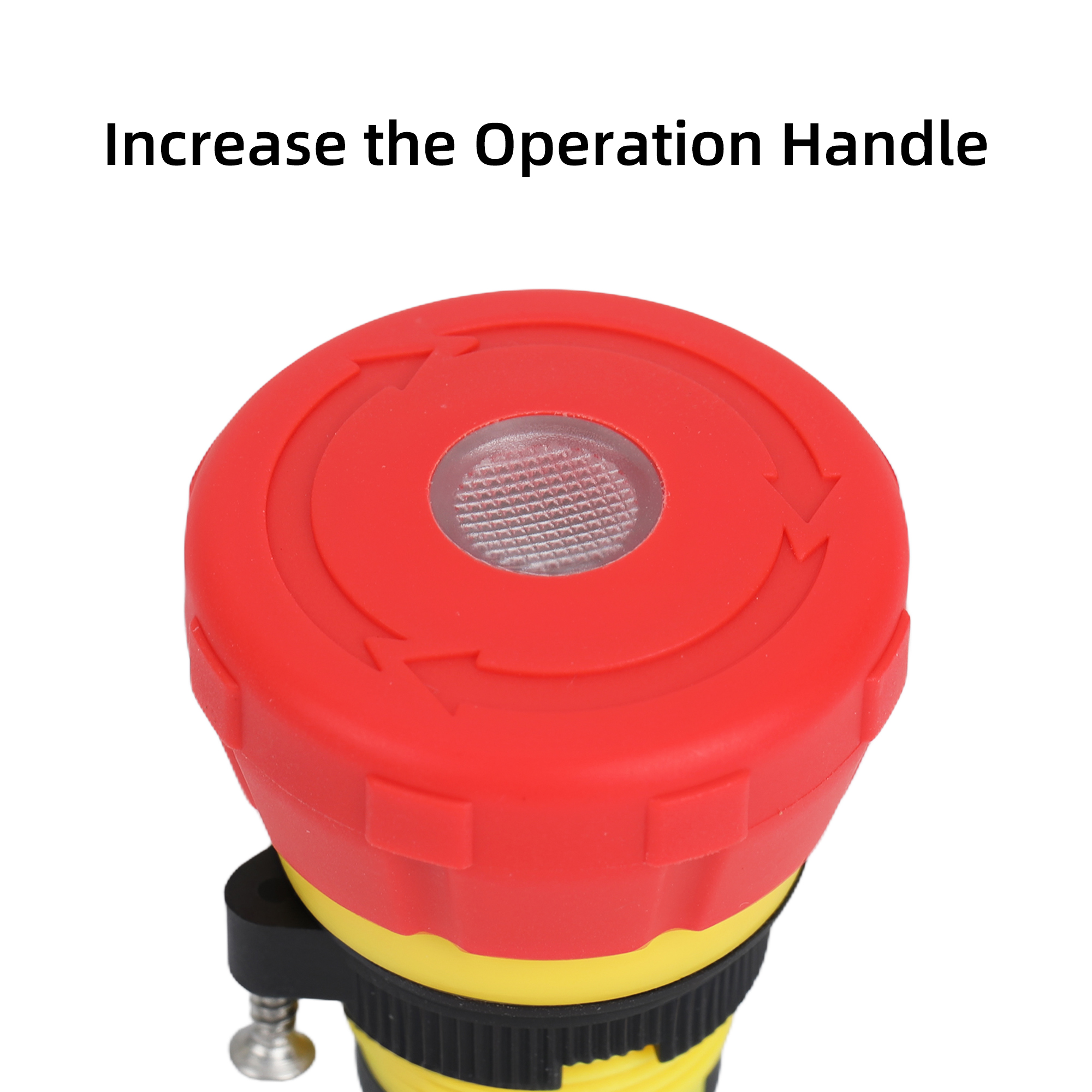

- LED Luminous Indication
An integrated LED indicator illuminates the center of the red mushroom cap for immediate status visibility in dark workshops. The luminous status light supports standard control voltages to provide clear active-power confirmation for machinery operators.

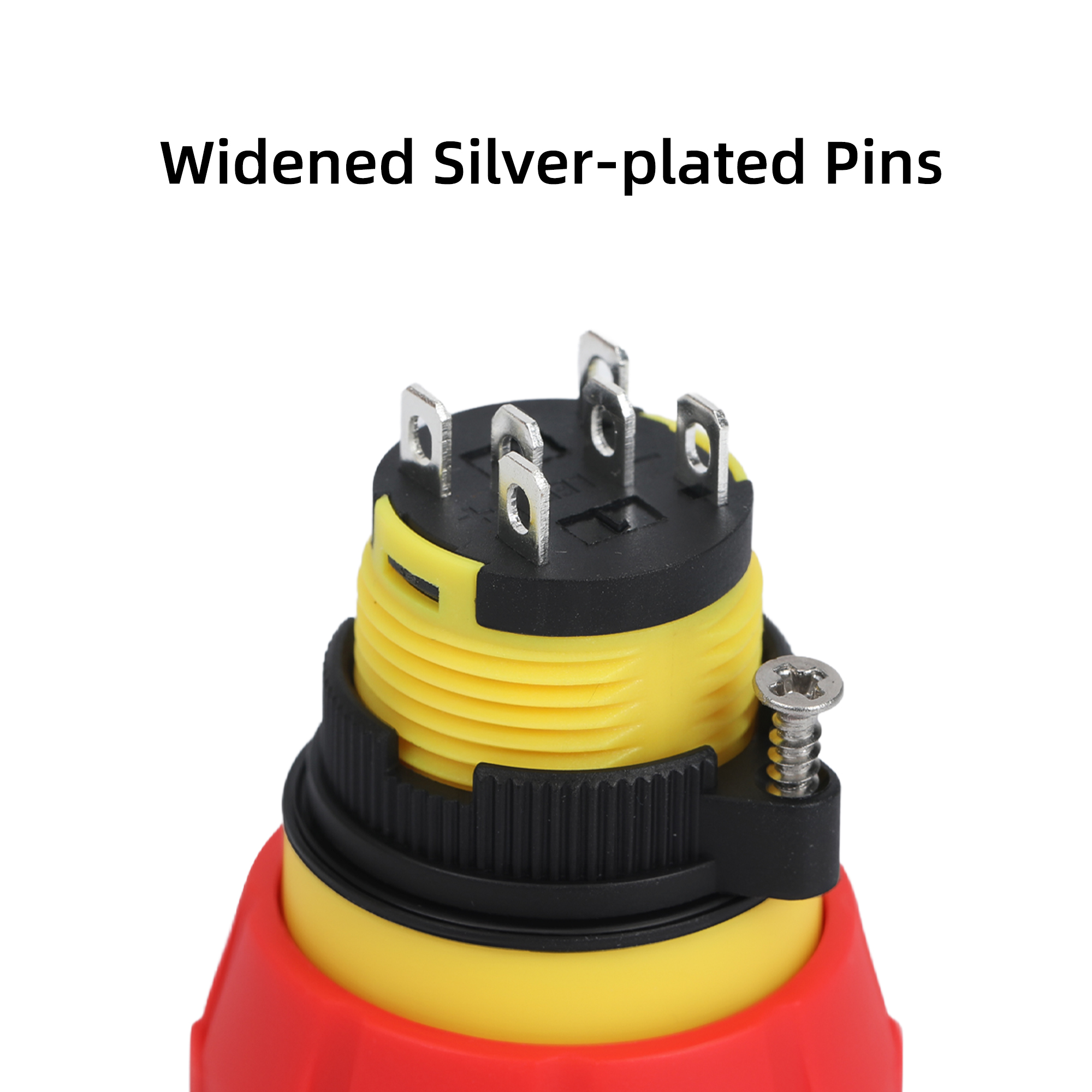

- Silver-Alloy Power Terminals
High-performance silver alloy terminal contacts deliver reliable electrical conductivity and minimize circuit resistance. This durable switch contactor safely manages current loads of up to 5A at 250V AC/DC for industrial automation setups.

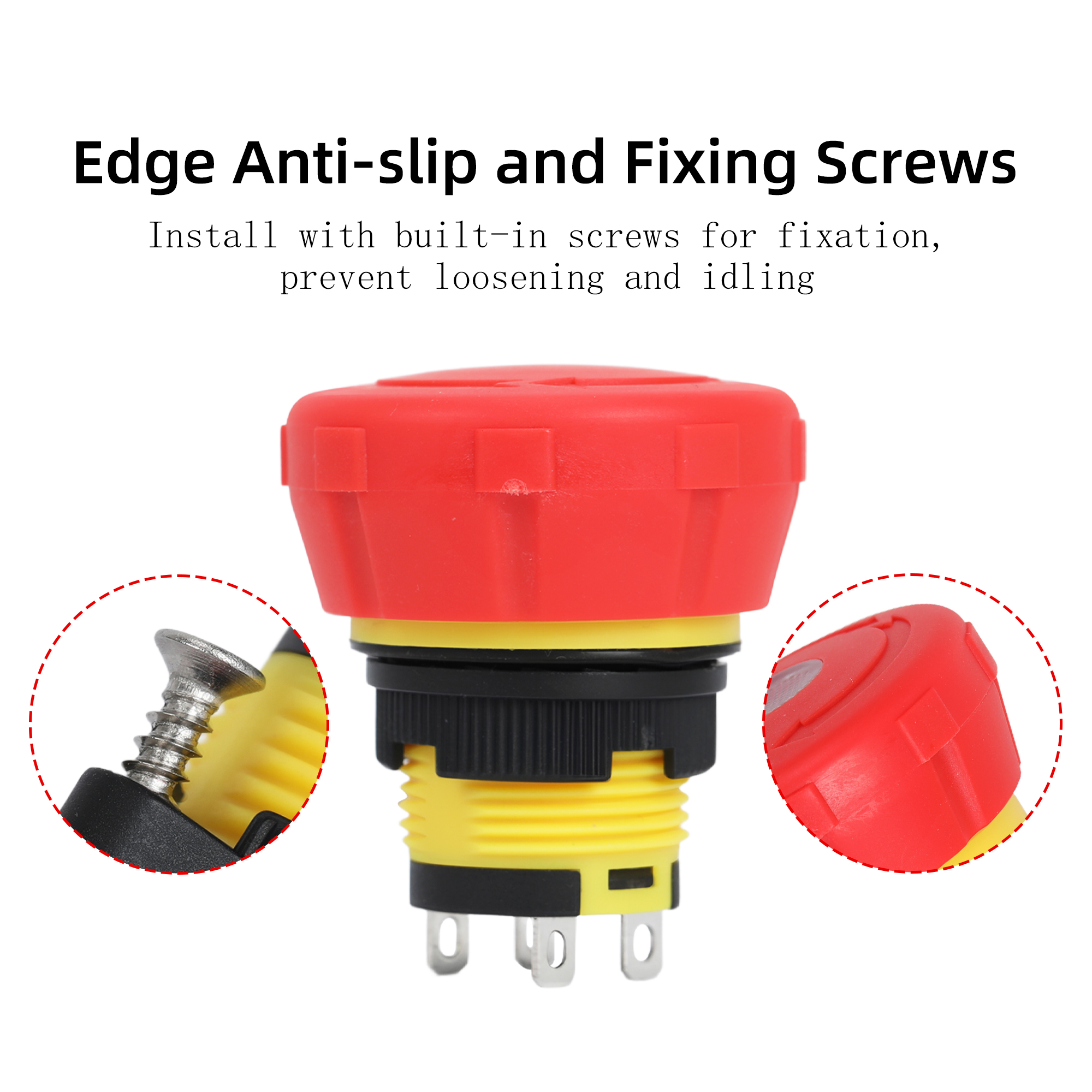

- Anti-Spin Panel Stabilization
A lateral locking metal screw anchors the switch body to prevent rotating or loosening inside the mounting panel. This rigid thread stabilization maintains a secure orientation under constant heavy machinery vibrations.

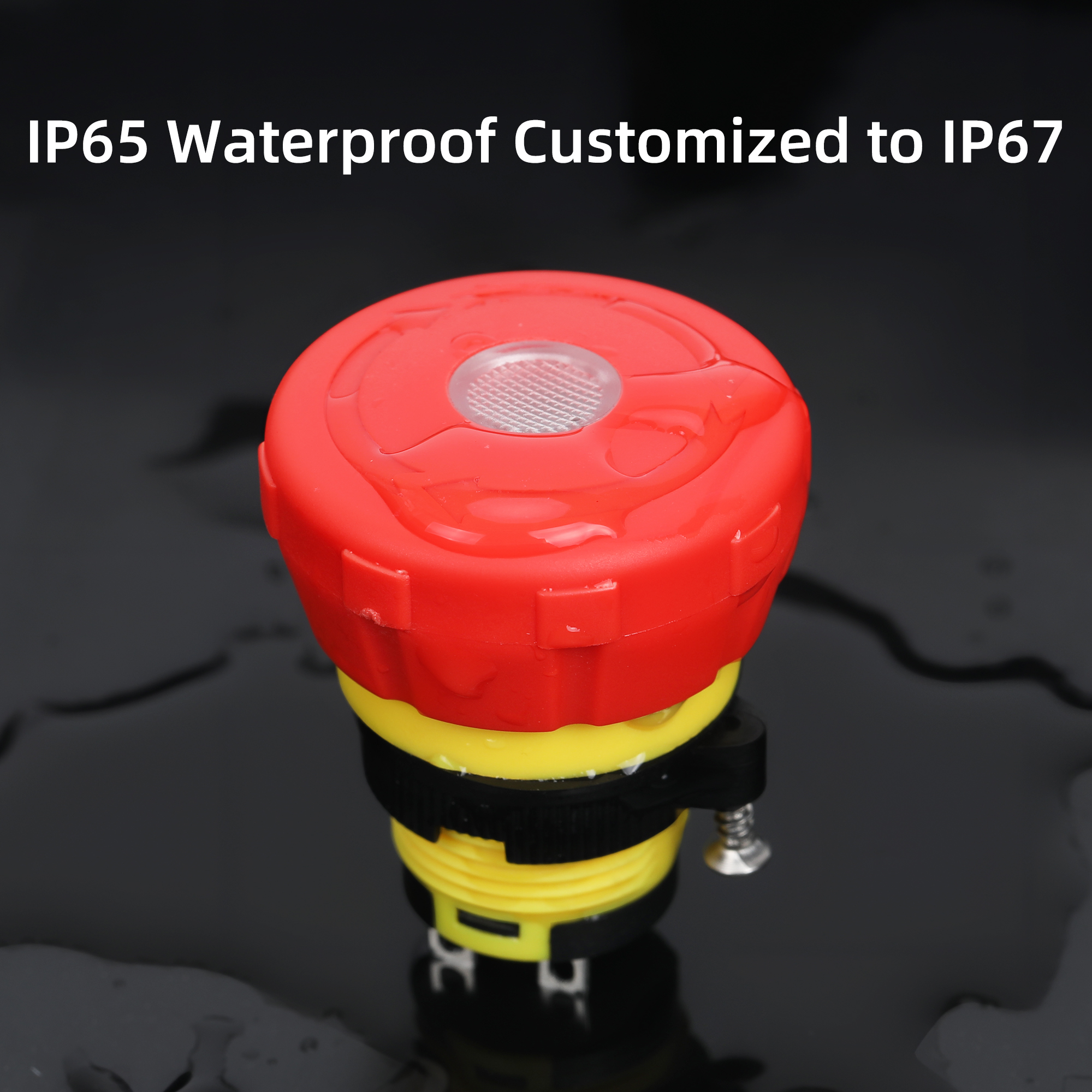

- Waterproof Mechanical Protection
The IP65 silicone rubber seal guards the internal electrical contacts against heavy dust and low-pressure water splashes. This robust environmental housing is customizable to IP67 specifications for wet processing plants or outdoor marine panels.
- Compact 16mm Footprint
A standard 1NO1NC terminal layout includes dedicated wiring terminals for the independent LED circuit. The compact 16mm mounting thread maximizes space efficiency on crowded control consoles and custom project boxes.
A16-16SHORT-N 16mm Illuminated Emergency Stop Switch Specifications
| Model Series | 16mm Industrial Safety Switch Series (Illuminated Version) |
| Illumination Source | Built-in High-Visibility Center LED |
| LED Voltage Options | 12V / 24V / 110V / 220V AC/DC |
| Action Type | Latching (Push-Lock, Turn-to-Release) / Momentary (Optional) |

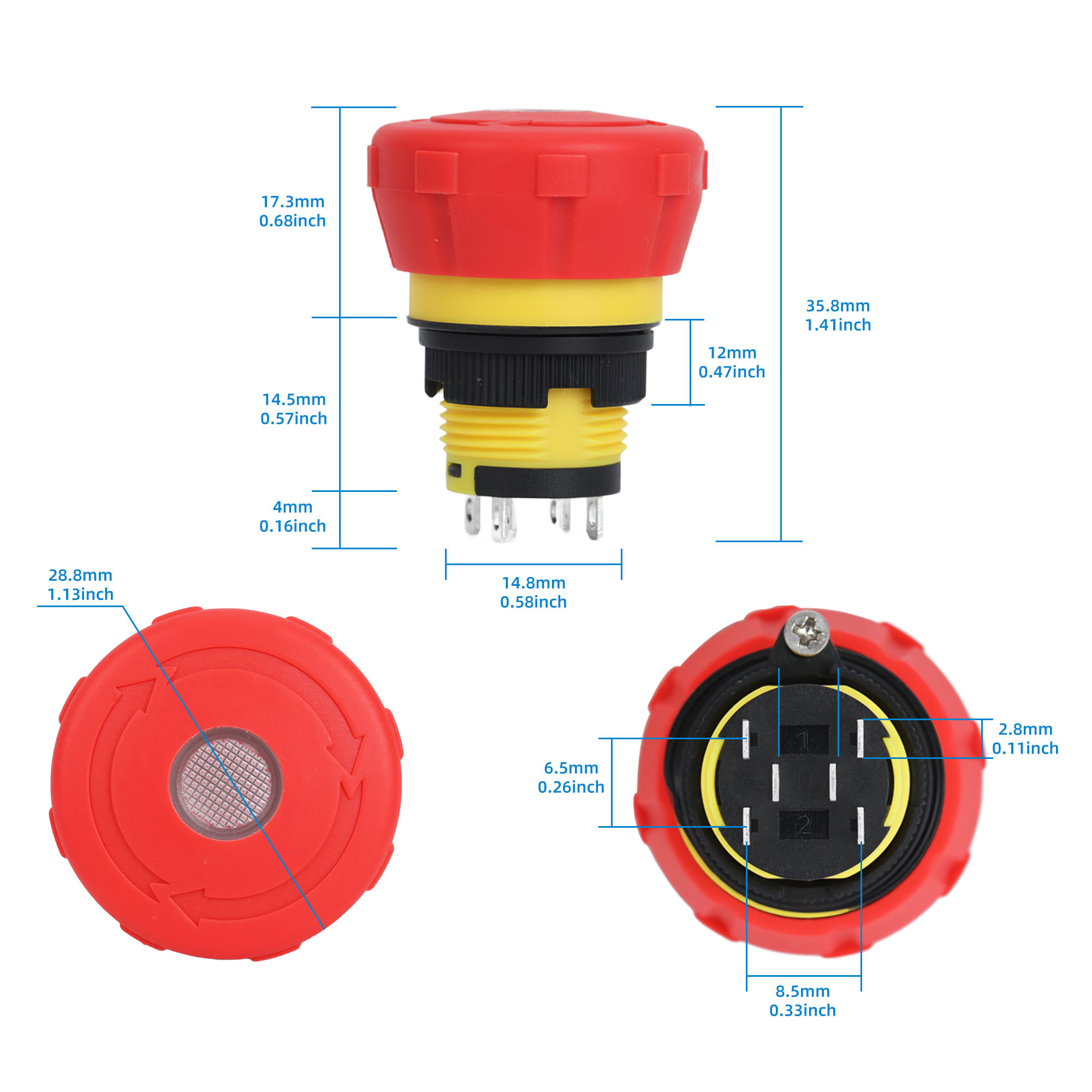

| Mounting Hole Cutout | 16 mm (0.63 inches) |
| Switch Rated Voltage | 1.5V – 250V AC/DC |
| Switch Rated Current | 5 Amps |
| Contact Material | Silver Alloy |
| Contact Combination | 1NO1NC (Dedicated LED Terminals Included) |
| Waterproof Rating | IP65 Standard (Upgradable to IP67) |
