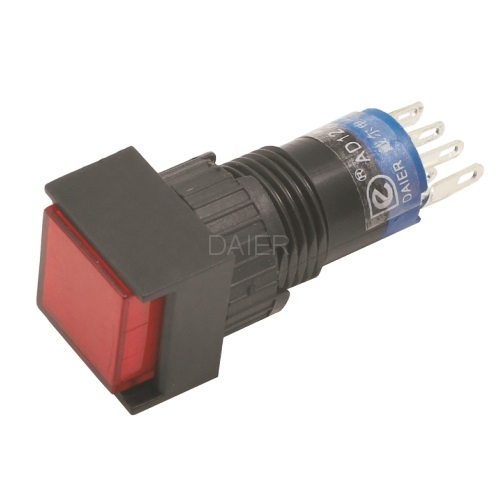

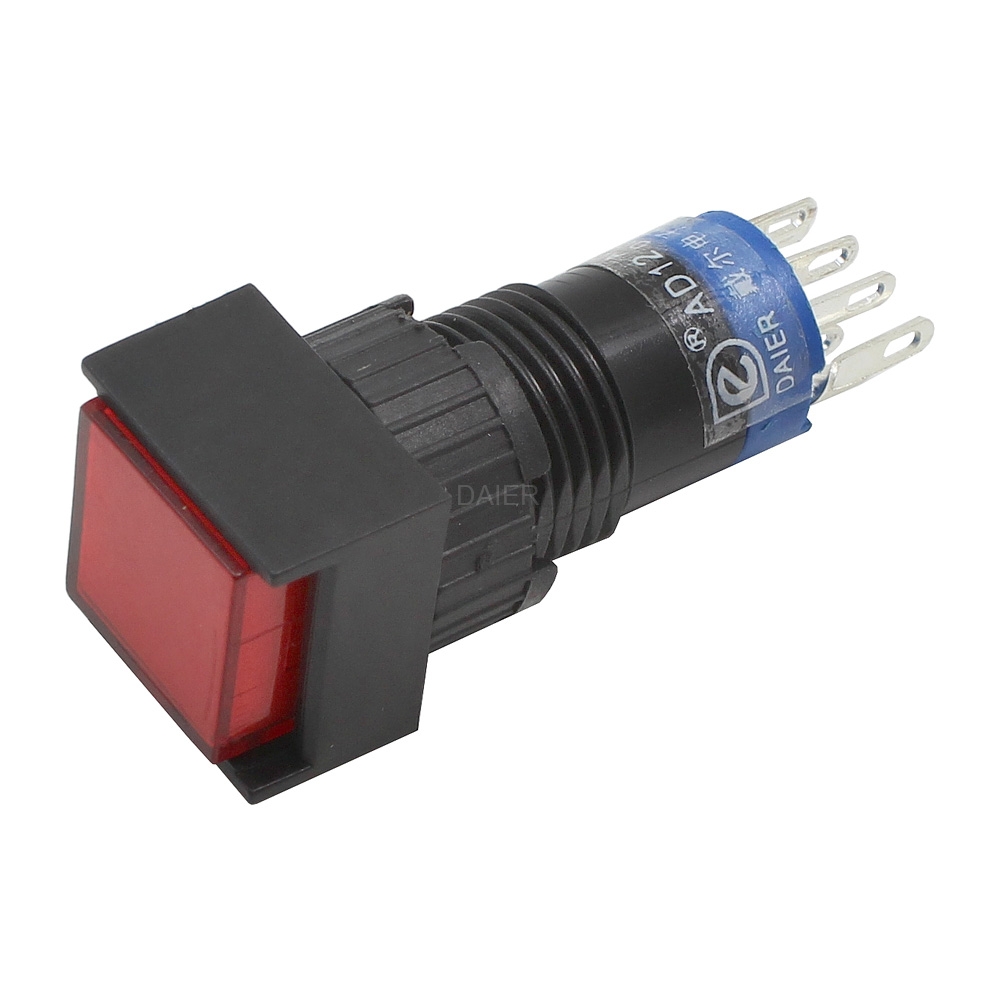

A12-11SF Square Momentary Push Button Switch

A12-11SF Square Momentary Push Button Switch

A12-11SF Square Momentary Push Button Switch

Push button switch is one of the most easy and quick to operate.

The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers.

It is widely used in industrial automation.

Many colors of button and light are available.


For more details, pls contact us here

A12-11SF Square Momentary Push Button Switch related product, pls check the detailed information as below:

A12-11SF: ON-(ON) without light
A12-11ZF: ON-ON without light
A12-11SF-N: ON-(ON) with light
A12-11ZF-N: ON-ON with light

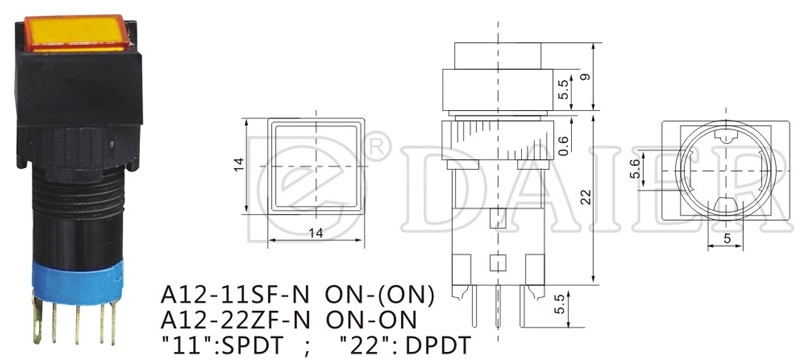

A12-11SF datasheet below:


Rating: 3A 250VAC Contact Material: Silver
Light Voltage: 3, 6, 12, 24, 48, 110, 220V Contact Configuration: Single Pole, Double Pole
Electrical Life: ≥ 10,000 Cycles Function: ON-(ON) or ON-ON
Dielectric strength: 500VAC 1 minute Operating Temperature: -25℃~+85℃
Insulation Resistance: 100mΩ min (500VDC) OEM or ODM: Available
A series plastic push button switch
