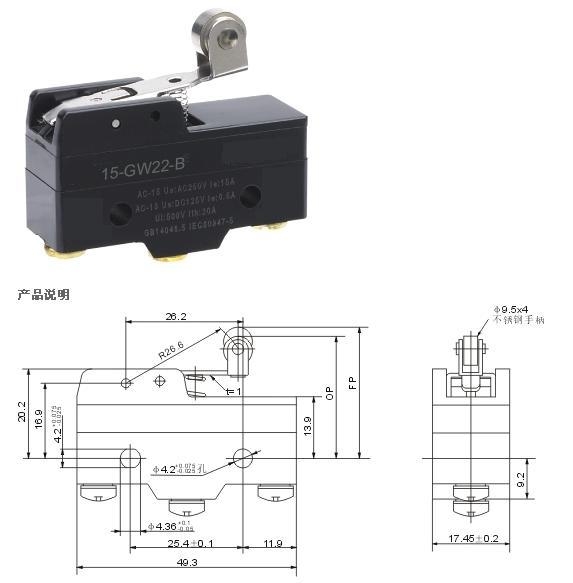

Z-15GW22-B Micro limit switch:
The Z-15GW22-B Micro limit switch of basic switches in plastic housing provide the same electrical and mechanical switching capability and lifetime as standard limit switches.
A large switching capacity of 15 A with high repeat accuracy.
A wide range of variations in contact form for your selection: basic, split-contact, maintained-contact, and adjustable contact gap types.
A series of standard models for micro loads is available.
A series of molded terminal-type models incorporating safety terminal protective cover is available.
Pls check the datasheet below:
|Housing:||Nylon 66||Lever:||Hinge roller lever|
|Contact Configuration:||SPDT||Switch Operation:||OFF – momentary ON|
|Rating:||15A 125V/250V||Operating Temperature:||-25℃~+80℃|
|Contact Resistance:||≤30mΩ||Electrical Life:||≥ 100,000 Cycles|
|Insulation Resistance:||≥100mΩ (500VDC)||Mechanical Life:||≥ 1,000,000 Cycles|
|Degree of protection:||IP00||OEM or ODM:||Available|
