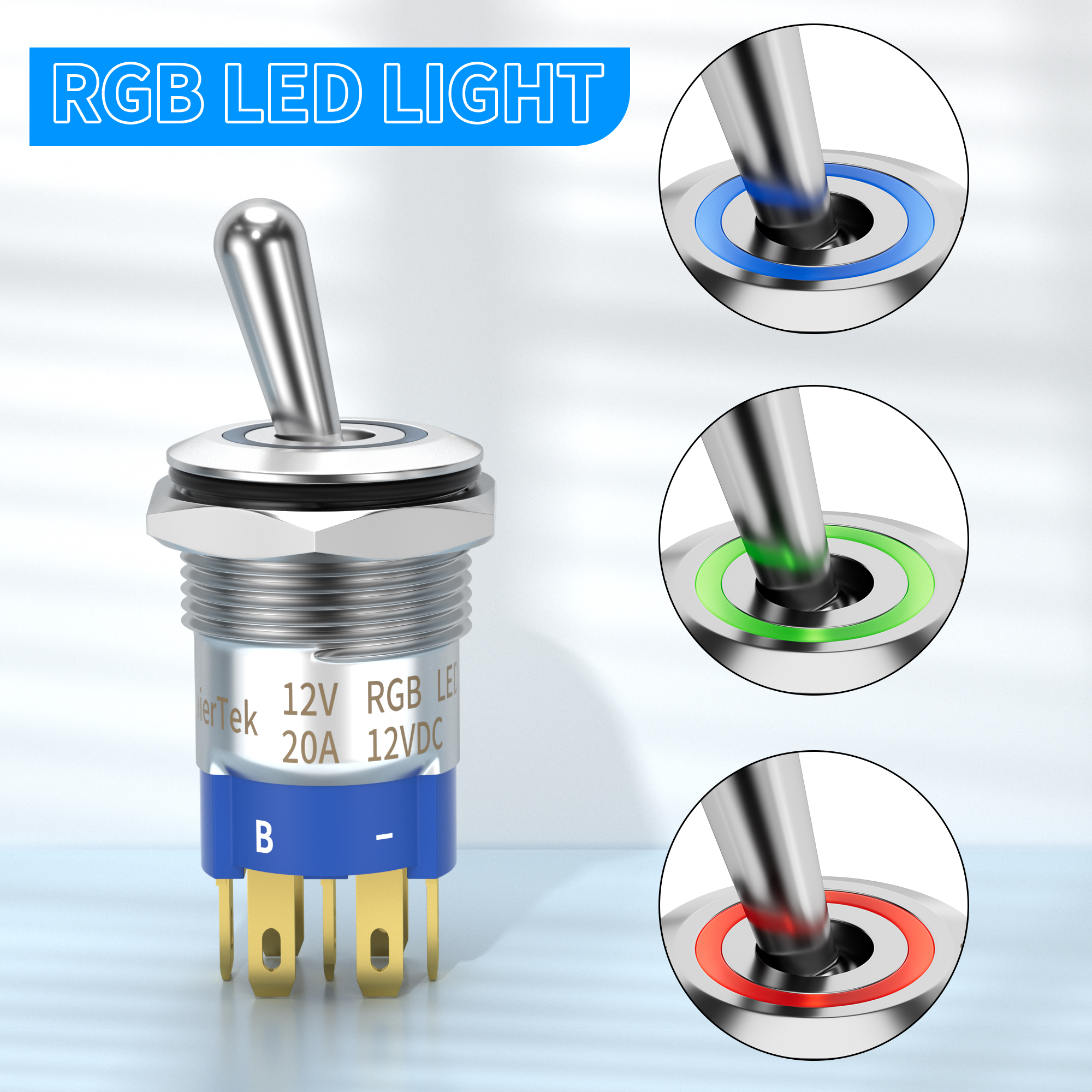

TS16-11EL 16MM 12V ON-ON 7-Pin RGB Waterproof Lighted Toggle Switch
Part # TS16-11EL
The 7-pin RBG waterproof lighted toggle switch is used for 12 VDC 20A and 125VAC 15A systems, ON-ON, and the mounting hole is 16mm.
This upgraded version features a 12-24V RGB triple LED, allowing for dynamic and customizable light styles, perfect for various indoor and outdoor applications.
Category :
Automotive Toggle SwitchTS16-11EL TS16-11EL 16MM 12V ON-ON 7-Pin RGB Waterproof Lighted Toggle Switch Details
-
Simple Operation
Simply toggle the handle to select different functions according to the position. Rated voltage: 12V DC; Rated current: 50A. SPDT, ON-OFF-ON and 3P with screw terminals.
-
Sturdy Construction
Plastic and metal, exquisite appearance, rust prevention, corrosion resistance, safety, durability and IP65.
-
Great Compatibility
Control the on-off of AC and DC power supply circuit can stand alone or be locked together with other switches.
-
Visual Feedback
Illuminated toggle switches operate at 12 volts DC and light up to provide visual feedback of your circuit operation.
-
Wide Application
Widely used in automotive, commercial, RV, truck, and industrial applications.
TS16-11EL 16MM 12V ON-ON 7-Pin RGB Waterproof Lighted Toggle Switch Related Product
TS16-10EL | ON/ON |
TS16-11EL | ON/OFF |
TS16-11EL Toggle Switch Detailed Information Below
If you have any unanswered questions about the product or would like more information, we encourage you to reach out to us via email at sales1@chinadaier.com or through our live chat. We are here to assist you and provide the information you need.
TS16-11EL And TS16-10EL Toggle Switch Datasheet Below:
Rated Insulation Voltage: | AC/DC 3-250V |
Rated Thermal Current: | 5A |
Operating Force: | Press 2.0 +0.2 N |
Ambient Temperature: | -25°C ~+55°C |
Endurance: | ≥6000 Cycles |
Insulated Resistance: | ≥100mΩ |
Contact Resistance: | ≤25mΩ |
LED Endurance: | ≤50000h |
IP Grade: | Ip67 |
Nut Torsion: | 16N·m |
