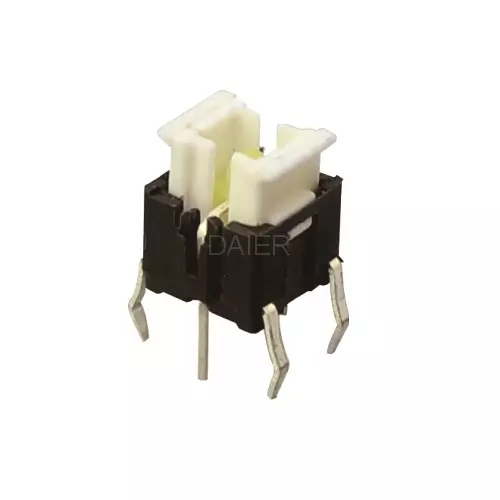

TSL-A063 tact switch 6×6:

TSL-A063 is an on/off smd tactile switch that is only on when the button is pressed or if there is a definitive change in pressure.
The Tactile Switch applications include: Low power, miniature devices, digital switching, anything where operator feedback is required (a switch confirmation coming from the switch being depressed) will find that the perfect choice is a Tactile switch.

Daier offers a broad range of miniature tactile, ultra-miniature tactile and micro miniature tactile switches for printed circuit board mounting.  Available in J bend, gull wing, illuminated, sealed, low-profile, low-noise, SMT and through hole versions, Daier’s tactile switches are designed for the most demanding applications.

Pls check the datasheet below:

LED voltage:2-3VOperating force:180/250±30gf
LED color:Red, Green, Yellow, Blue, WhiteTravel:0.25mm
Operating Direction:Top PushInitial contact resistance:100mΩ max.
Operating Life:Over 100,000 cyclesOperating Temperature:-25℃~+105℃
Rating (max.):50mA 12V DCRating (min.):10µA 1V DC
SPQ:1,000pcsOEM or ODM:Available
tact switch 6x6
