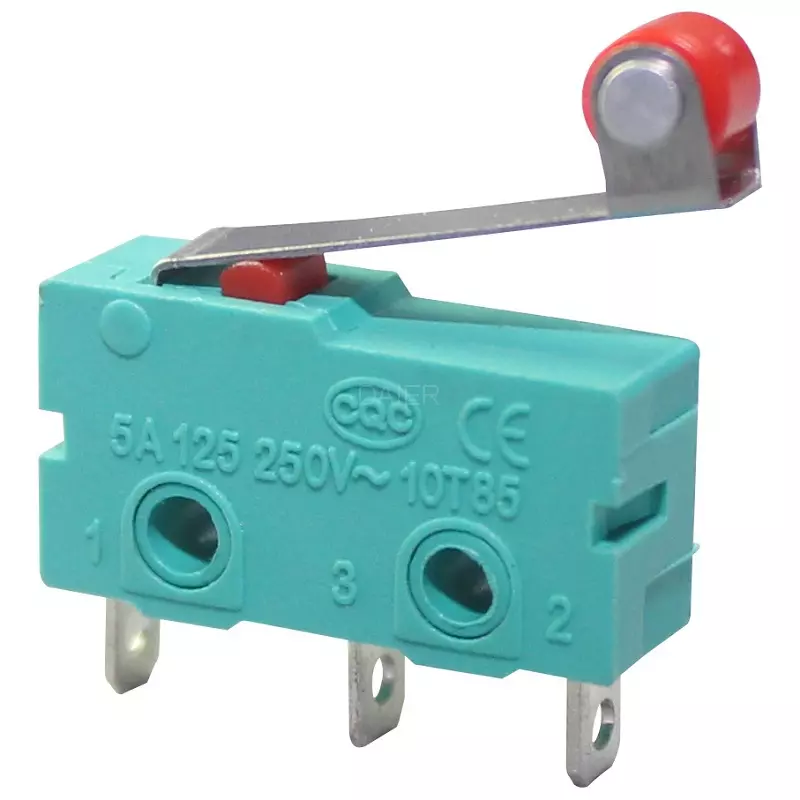

KW4-Z5F roller microswitch:

Although small in size, KW4-Z5F roller microswitch are rated for controlling electrical loads ranging from logic level (computer based circuits) to power duty switching (up to 16.1 A and 250 Vac). The package size of the subminiature switch is ideal for applications where space on the equipment is at a premium. The overall length of KW4-Z5F roller microswitch are less than 20 mm [0.78 in].

Pls check the datasheet below:


Housing: Nylon 66 Lever: Roller lever
Terminal Brass with sliver plated House color: Green or Black
Contact Configuration: SPDT Switch Operation: OFF – momentary ON
Rating: 5A 250VAC/10A 125VAC Operating Temperature: -25℃~+85℃
Contact Resistance: ≤30mΩ Ambient Temperature Used: 〈85% RH
Insulation Resistance: ≥100mΩ (500VDC) Electrical Life: ≥ 10,000 Cycles
Dielectric strength: 1500VAC 1 minute Mechanical Life: ≥ 100,000 Cycles
Certification: CE OEM or ODM: Available
KW4 micro switch
