RB-R3F3S-W 3-Way Pre-wired 12V Relay Fuse Box | 40A 3-Slot Distribution Block
P/N: RB-R3F3S-W
This 12V pre-wired relay fuse box features three 40A JD1912 relays and three assorted fuse slots (10A/20A/30A) housed in a sealed, waterproof enclosure.

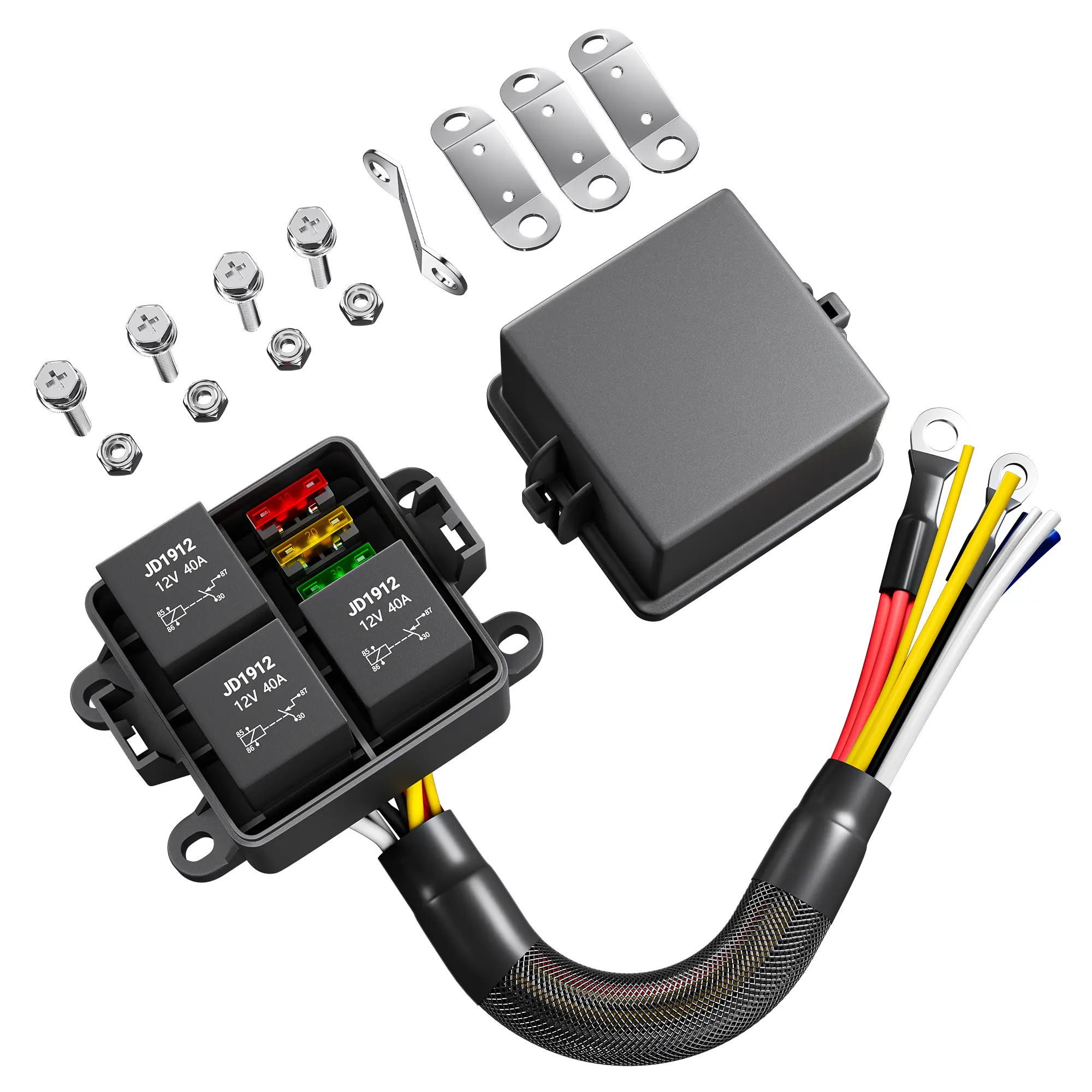

The complete power distribution kit includes a snap-on lid, mounting hardware, and a high-conductivity wiring harness for simplified integration into any automotive or marine system.
Category :
Relay & Relay Box
RB-R3F3S-W 3-Way Pre-wired 12V Relay Fuse Box Features
- 3-Circuit Power Distribution
This 3 way relay fuse box provides a centralized control hub for three independent electrical accessories simultaneously. The 3-slot distribution block is specifically designed to manage multiple lighting or power systems through a single, organized unit.

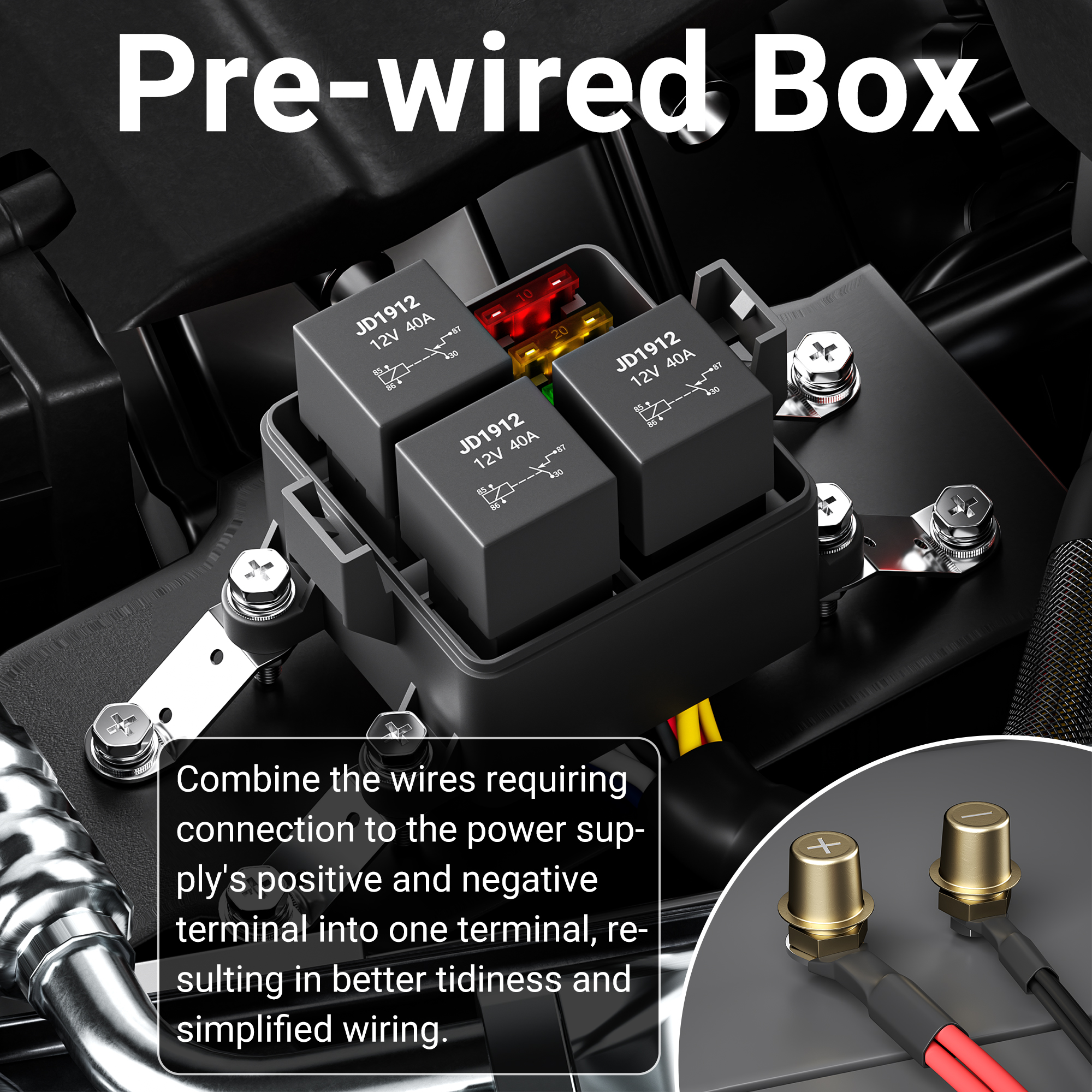

- Plug-and-Play Pre-wiring
A pre-wired relay box eliminates the time-consuming process of crimping terminals and manual wiring for a faster installation. The fully assembled harness allows for immediate connection to your power supply and accessories right out of the box.
- Tailored Multi-Layer Defense

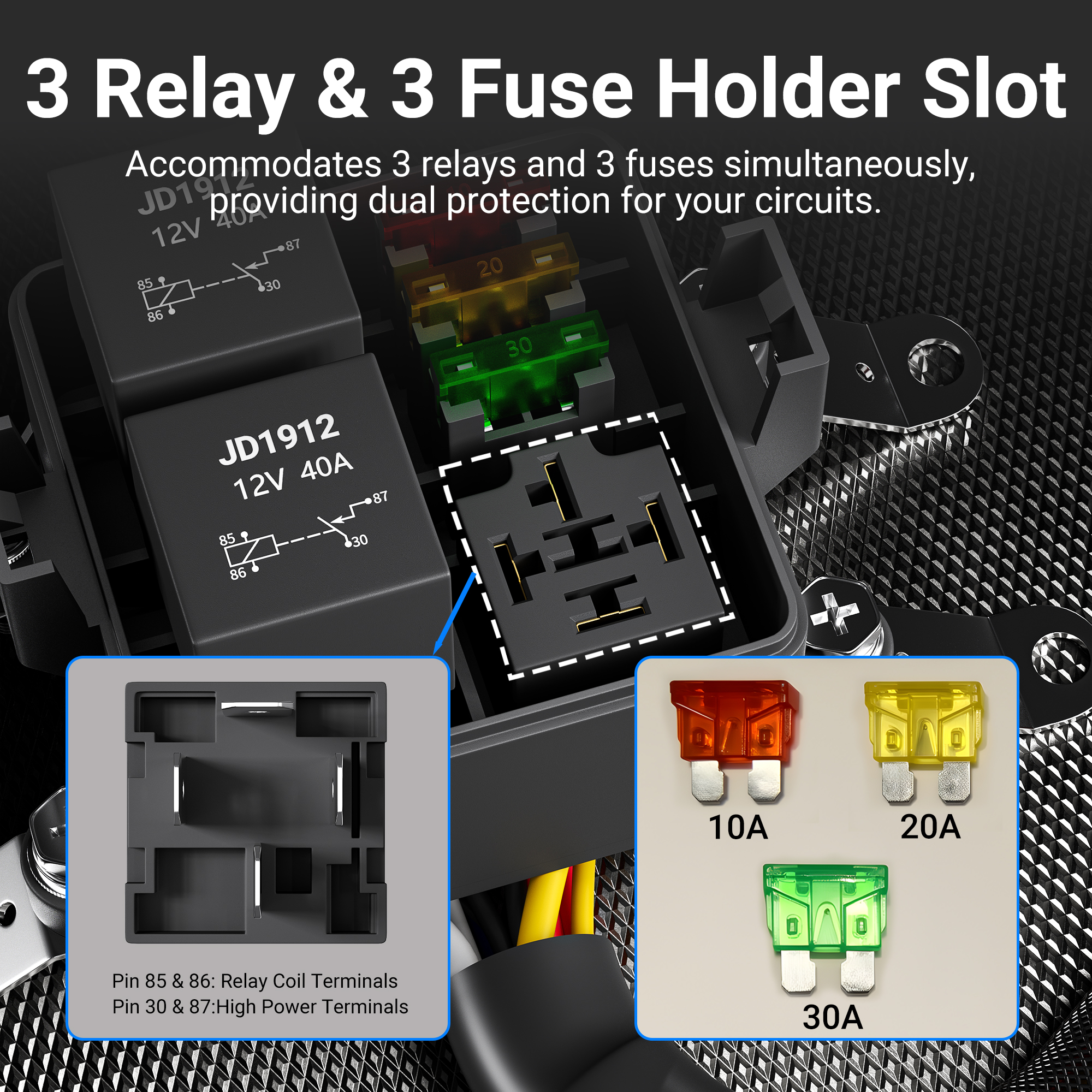

Three 40A 12V relays work in tandem with three assorted blade fuses (10A/20A/30A) to provide dedicated circuit protection. This fused relay kit ensures each of your three high-power devices is individually shielded against overcurrent and short circuits.

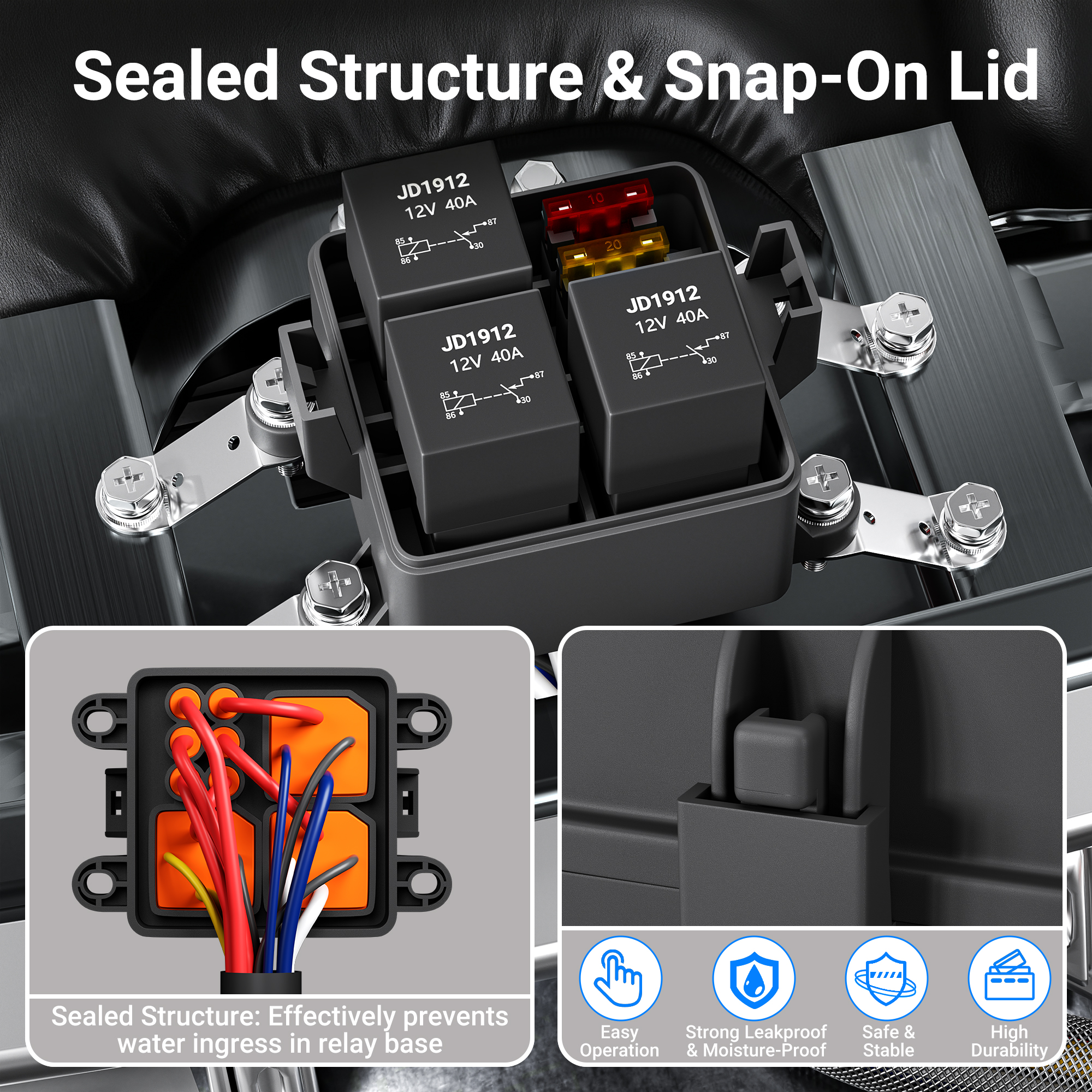

- Compact Environmental Protection
The waterproof relay enclosure features a snap-on lid and a sealed bottom to resist moisture and dust intrusion. This compact fuse box fits into tight engine bays or cabins, ensuring your 3-way circuitry remains stable in harsh automotive or marine conditions.
- Versatile Mounting Hardware

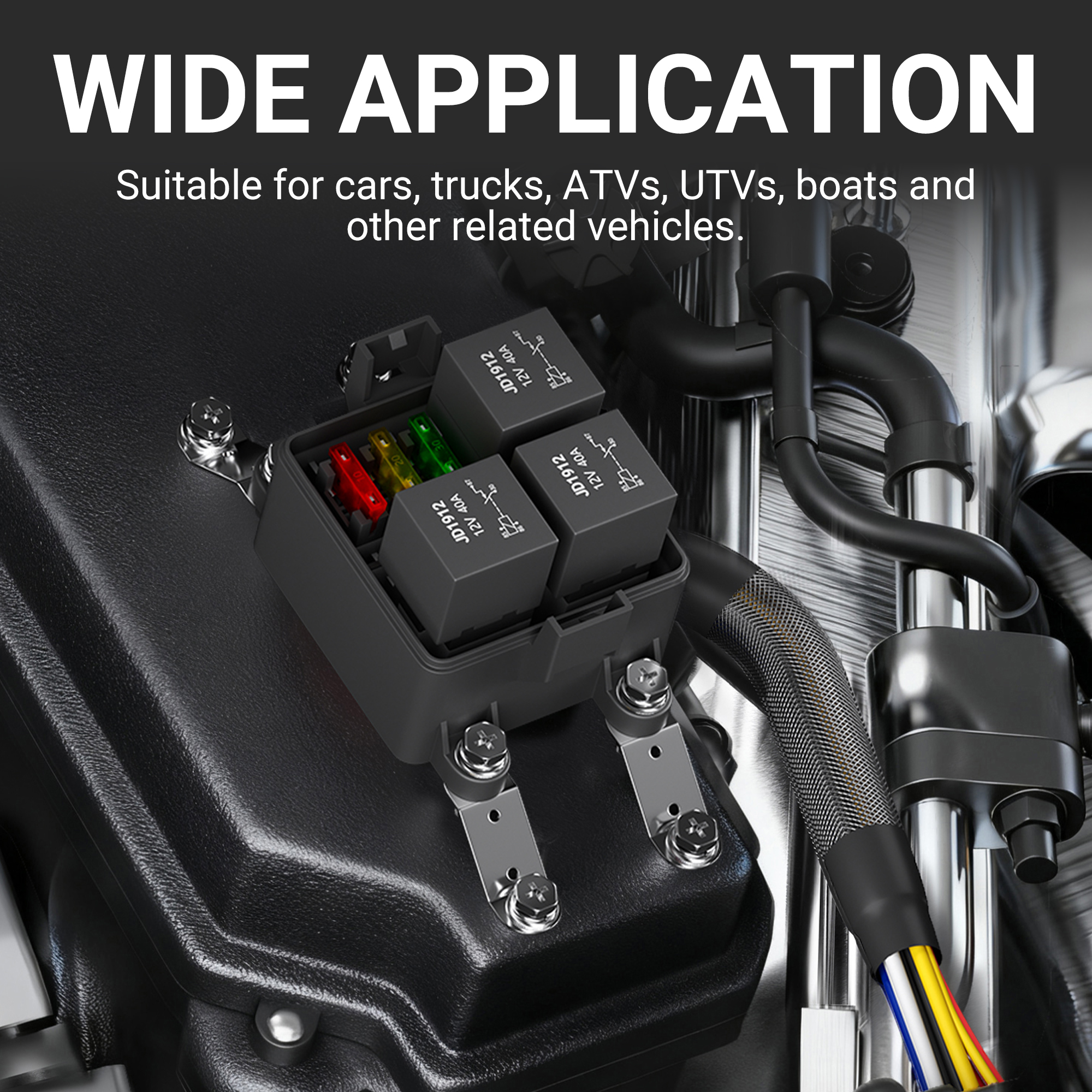

Included stainless steel L-brackets provide stable mounting options for cars, trucks, ATVs, and boat electrical systems. The complete mounting kit ensures a professional, vibration-resistant installation that maintains its structural integrity over time.
RB-R3F3S-W 3-Way Pre-wired 12V Relay Fuse Box Datasheet
| Part NO | RB-R3F3S-W |

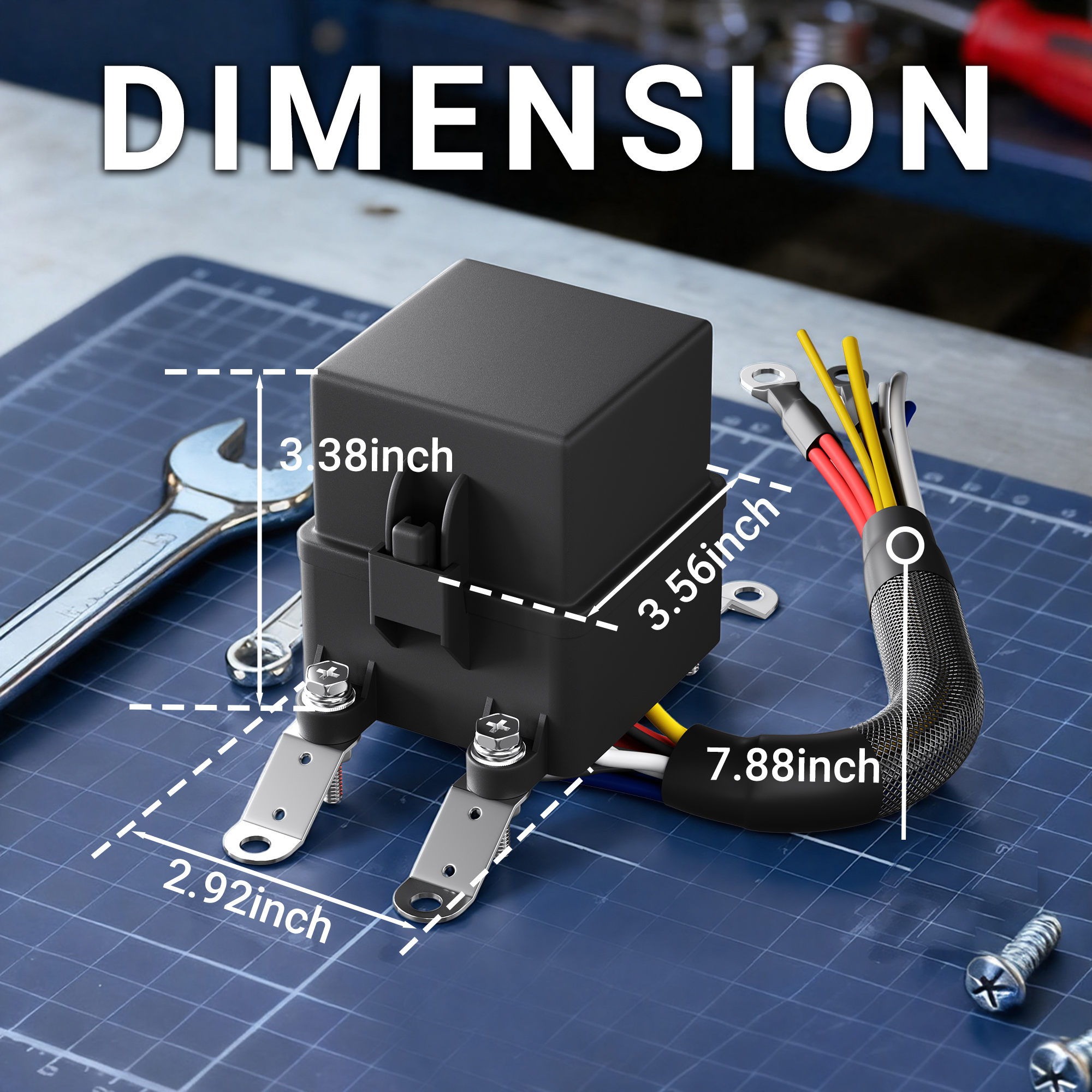

| Box Dimensions (L x W x H) | 3.56″ x 2.92″ x 3.38″ (90.4mm x 74.2mm x 85.9mm) |
| Circuit Capacity | 3-Way (Accommodates 3 Relays & 3 Fuses) |
| Operating Voltage | 12V DC |
| Relay Specifications | 3 x JD1912 (12V 40A, 4-Pin) |
| Fuse Type | ATO/ATC Blade Fuses |
| Included Fuse Ratings | 10A, 20A, 30A (One per slot) |
| Wiring Style | Pre-wired Pigtail Harness |
| Enclosure Material | High-Temperature Flame-Retardant Nylon |
| Protection Rating | Waterproof with Snap-On Lid |
| Mounting Hardware | Stainless Steel Brackets & Screws Included |
