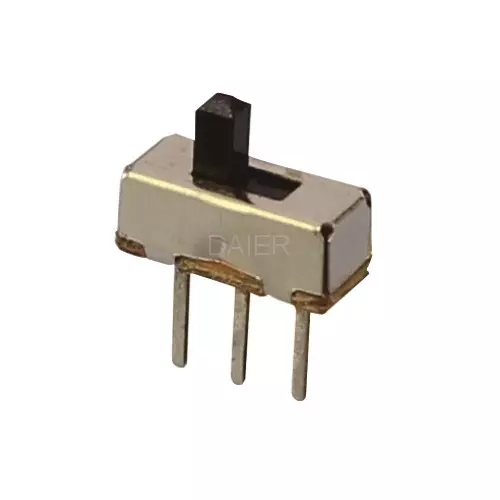

SS-12D00 power slide switch:
Featuring ultra-miniature, micro, miniature, standard, industrial and power versions, Daier has slide switches compatible for printed circuit board, surface mount and panel mount applications. Available in SPST, SPDT, SP3T, DPST, DPDT, 3PDT, 4PDT and 4P3T functions, Daier provides slide switches with positive detent, sealing, and shorting or non-shorting contacts options.
Daier’s many series of slide switches give engineers more design flexibility and options when it comes to size, mounting, actuation types, ratings and packages. Whether you develop controllers or consumer goods; headphones or HVAC controls; portable speakers or laptops; audio equipment or alarms, Daier slide switches quickly integrate into your next design.

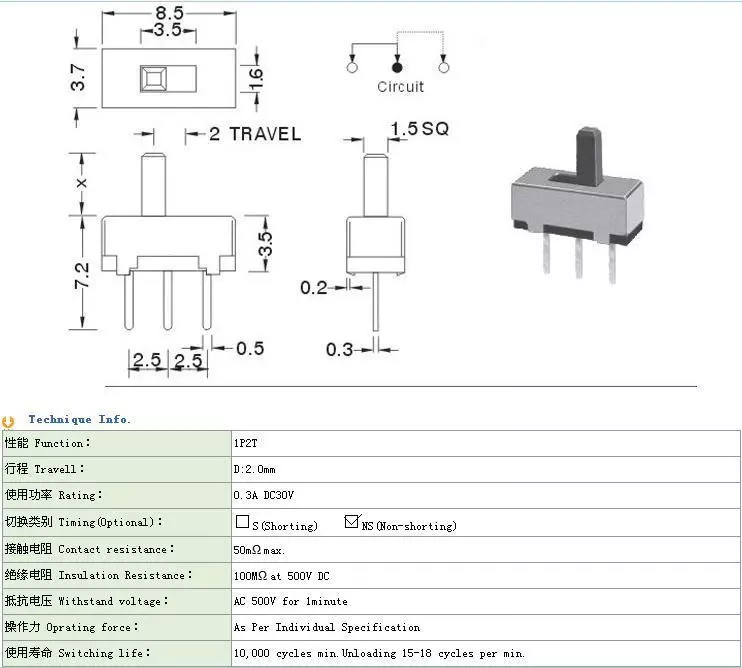

Pls check the datasheet below:
|Rating:||0.3A 30VDC||Electrical Life:||≥ 10,000 Cycles, Unloading 15-18 cycles per min|
|Contact Resistance:||10mΩ max. initial @2-4 VDC,100 mA||Insulation Resistance:||1000mΩ min|
|Dielectric strength:||1500VAC 1 minute||Operating Temperature:||-25℃~+85℃|
