POP-6 30A 125V/250V 6-Outlet Power Distribution Box | Weatherproof Spider Panel
P/N: POP-6

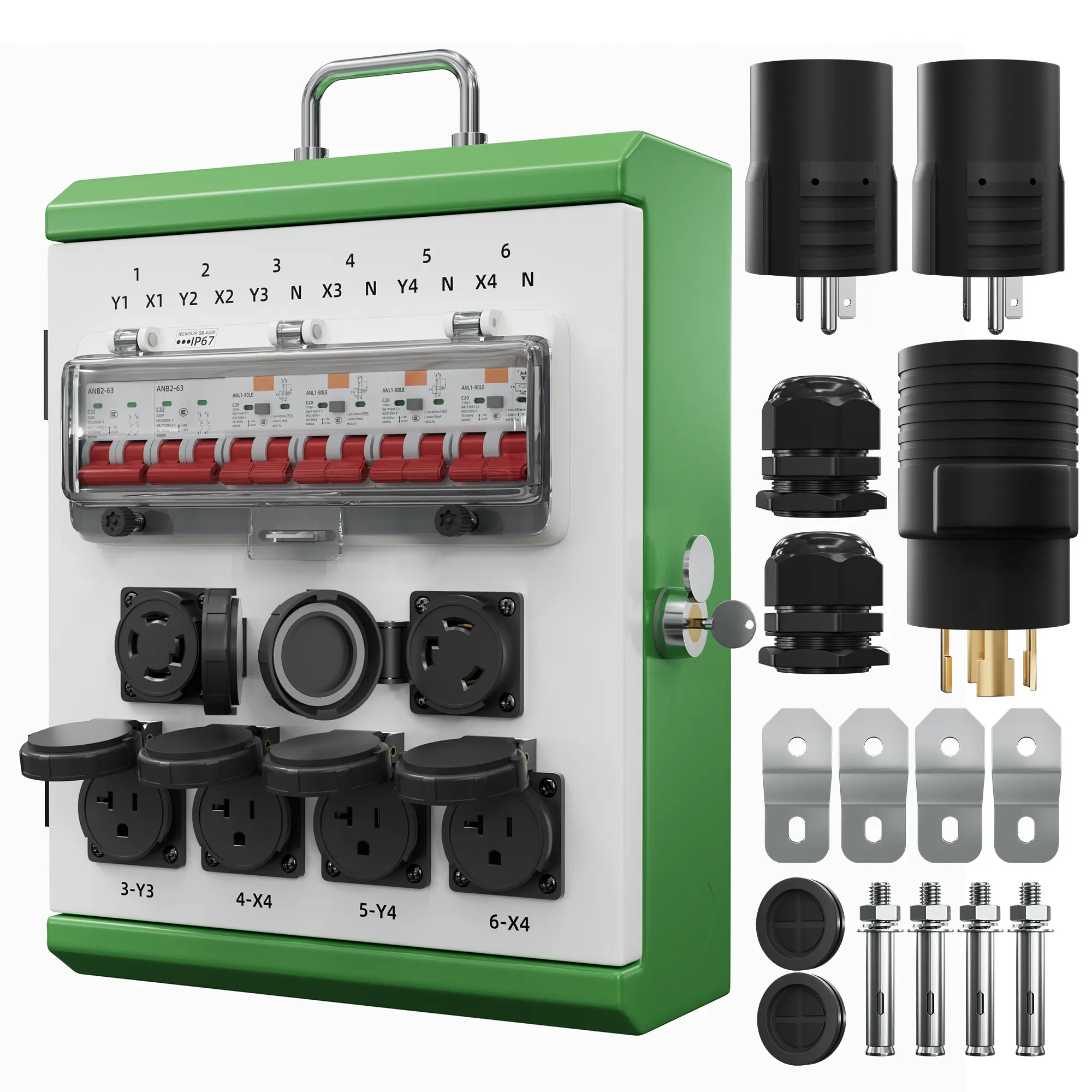

This heavy-duty 30A 125V/250V power distribution box integrates six circuit breakers, one NEMA L14-30R socket, one NEMA L6-30R socket, and four NEMA 5-20R outlets into a rugged steel housing.
Equipped with individual spring-loaded weatherproof covers and a complete kit of NEMA adapter plugs, this portable spider panel provides safe, code-compliant electricity management for job sites, warehouses, and RV campgrounds.
Key Features & Benefits
- Multi-Standard Socket Array
This industrial power distribution box features one NEMA L14-30R twist-lock socket, one NEMA L6-30R twist-lock socket, and four NEMA 5-20R standard outlets. The versatile outlet configuration simultaneously supports heavy-duty industrial machinery, emergency generators, and standard 125V utility appliances.
- Integrated Breaker Safeguards
Six dedicated miniature circuit breakers provide robust overload and ground-fault leakage protection for each output circuit. An IP67 transparent flip cover shields the safety switches from environmental dust while allowing instant visual status checks.
- IP67 Weatherproof Enclosure
Individual spring-loaded weatherproof receptacle covers protect unused outlets from water splashes, rain, and grit. The dust-resistant outdoor design operates reliably in extreme temperatures ranging from -20°C to 50°C.
- Heavy-Duty Metal Construction
A powder-coated steel alloy housing provides impact resistance in rugged construction zones, warehouses, and camper campgrounds. The welded top carrying handle combined with pre-drilled brackets allows for easy manual transport or secure wall-mounted installation.
- Comprehensive Adapter Kit
This complete spider box kit includes four heavy-duty NEMA adapter plugs, wall expansion anchors, and cable entry glands. The pre-drilled 1.19-inch bottom knockouts facilitate clean wiring runs for permanent or temporary job site power setups.
Selection Specifications
| Part NO | POP-4-20A-METER |
| Input Rated Voltage | AC 125V / 250V (Dual Voltage Support) |
| Maximum Rated Current | 30 Amps |
| Circuit Breakers | 6x Integrated Miniature Breakers (20A / 30A Overload & Leakage Protection) |
| Socket 1 (Whole-House/Gen) | 1x NEMA L14-30R (30A 125V/250V Twist-Lock) |
| Socket 2 (Heavy Industrial) | 1x NEMA L6-30R (30A 250V Twist-Lock) |
| Sockets 3-6 (Daily Appliances) | 4x NEMA 5-20R (20A 125V Duplex/Standard T-Blade) |
| Waterproof Rating (Window) | IP67 Sealing Level |
| Operating Temperature | -20°C to 50°C (-4°F to 122°F) |
| Cabinet Dimensions | 14.2″ H x 11.1″ W x 4.3″ D (36.0 x 28.0 x 11.0 cm) |
