KN116 Plastic Potentiometer Rotary Knob With Delta

KN116 Plastic Potentiometer Rotary Knob With Delta，have different size for your choice

Category :

Knob

inquiry now

Specification

Specification

KN116 Plastic Potentiometer Rotary Knob With Delta:

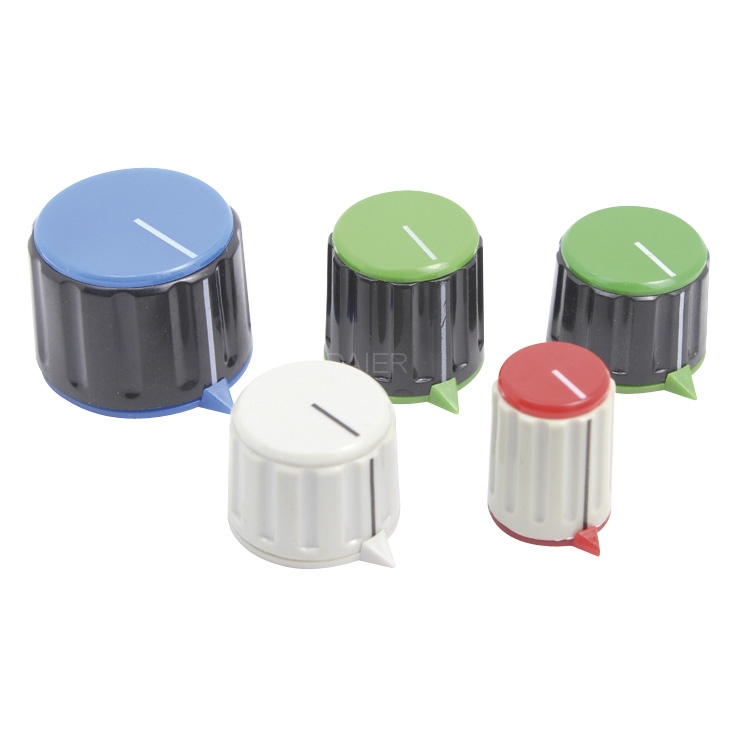

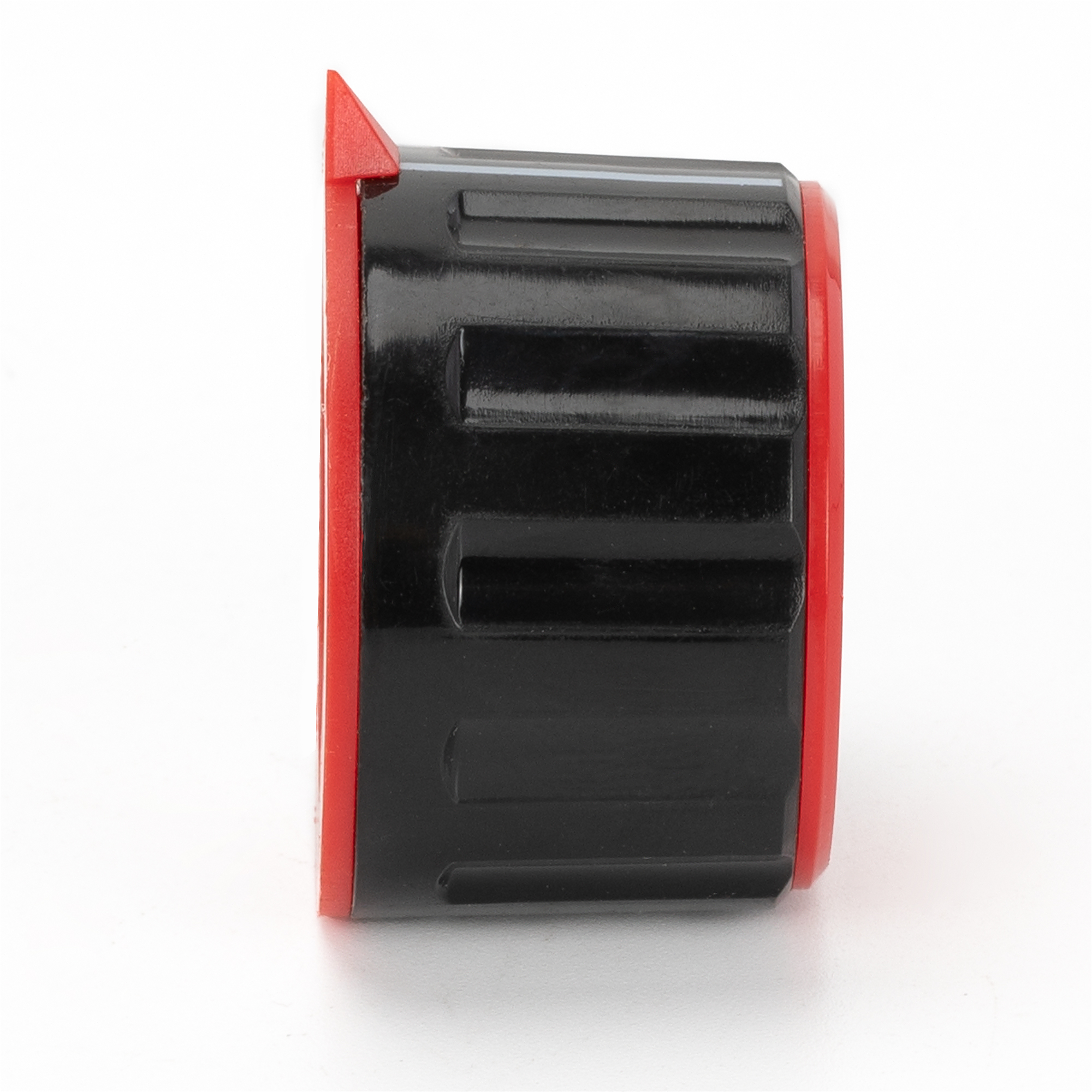

KN116 plastic switch knob with colorful top and housing. Have a small arrowhead indicator on housing.

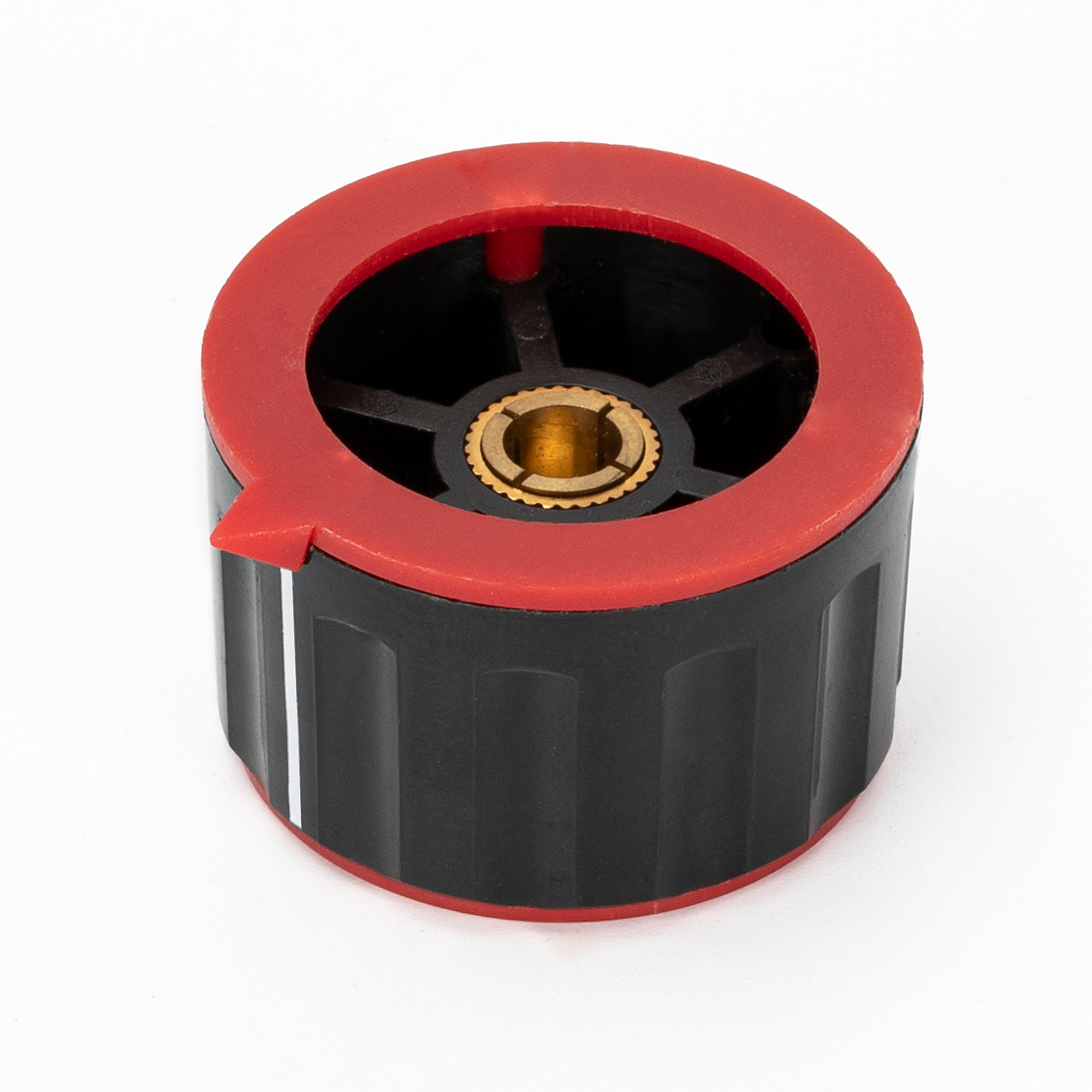

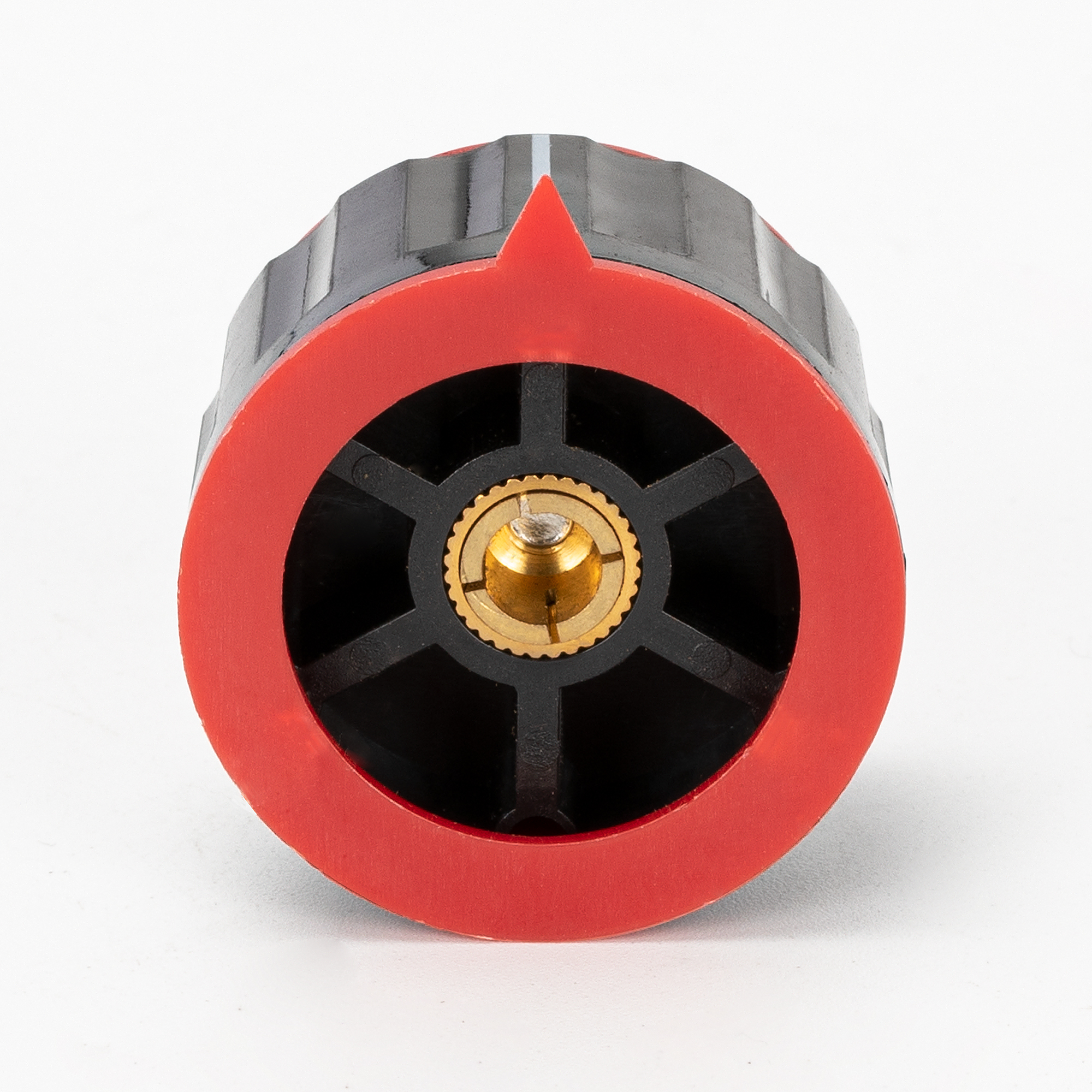

It’s ABS material with a brass and a small brass screw which allow it to fix to most sizes of potentiometer.
Ideal for guitar amplifiers effect units radios etc.
There are two kinds of shaft for this knob.
6.0mm and 6.4mm shaft.
It can be made into different housing and top color.
Housing color:grey, black
Top color:red, green, yellow, blue, black, grey.

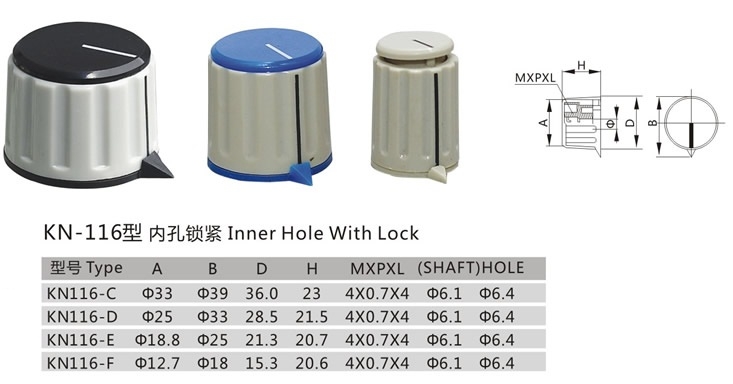

KN116 Plastic Potentiometer Rotary Knob With Delta datasheet below:

Material:	ABS	Shaft:	6.0mm/6.4mm
Color:	Black, Blue, Red, Green, Yellow,grey.	Height:	20.6mm~23mm
Diameter:	15.3mm~36mm	Body Diameter:	18mm~39mm
Operating Temperature:	-25℃~+85℃	OEM or ODM:	Available

KN116 6.0mm/6.4mm:
