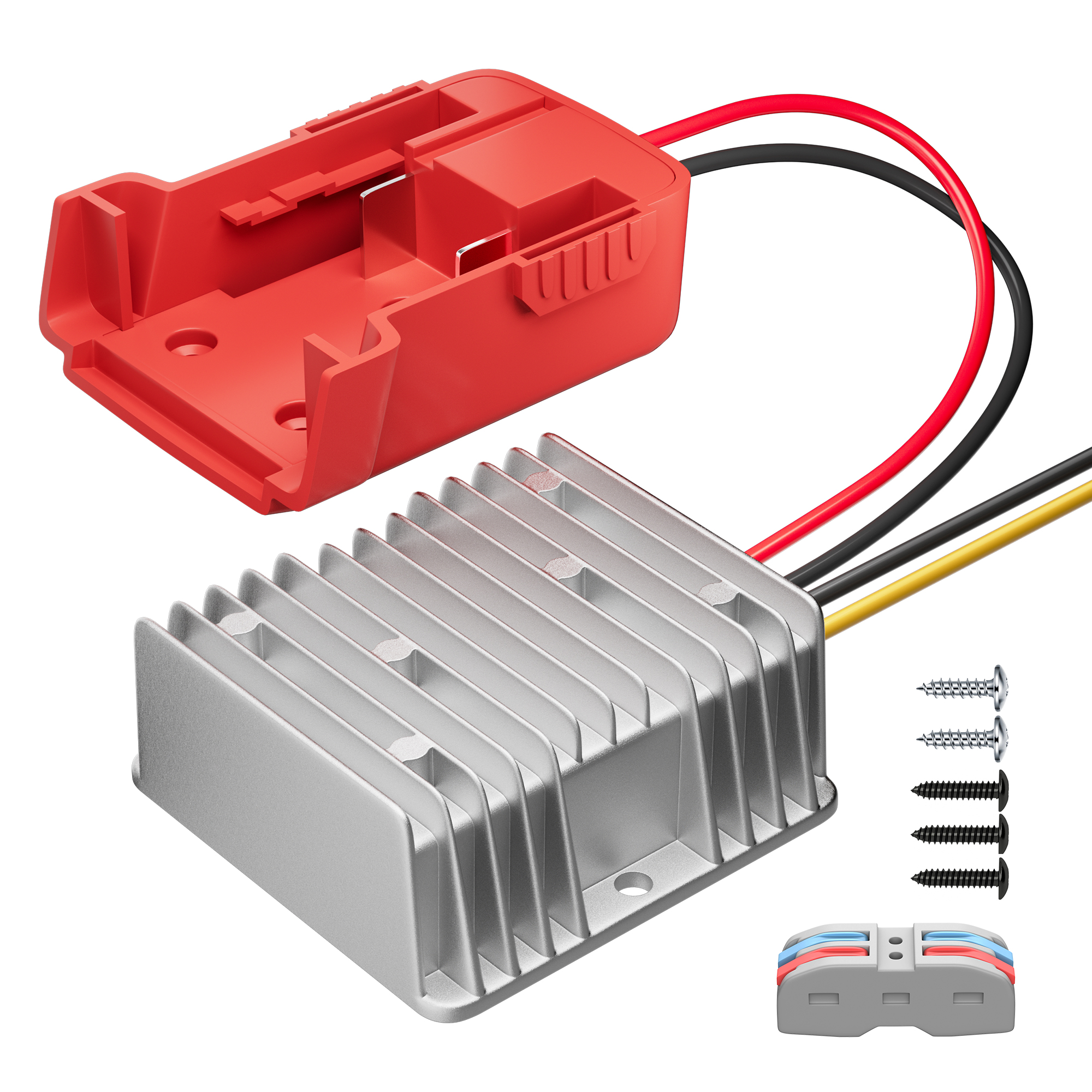

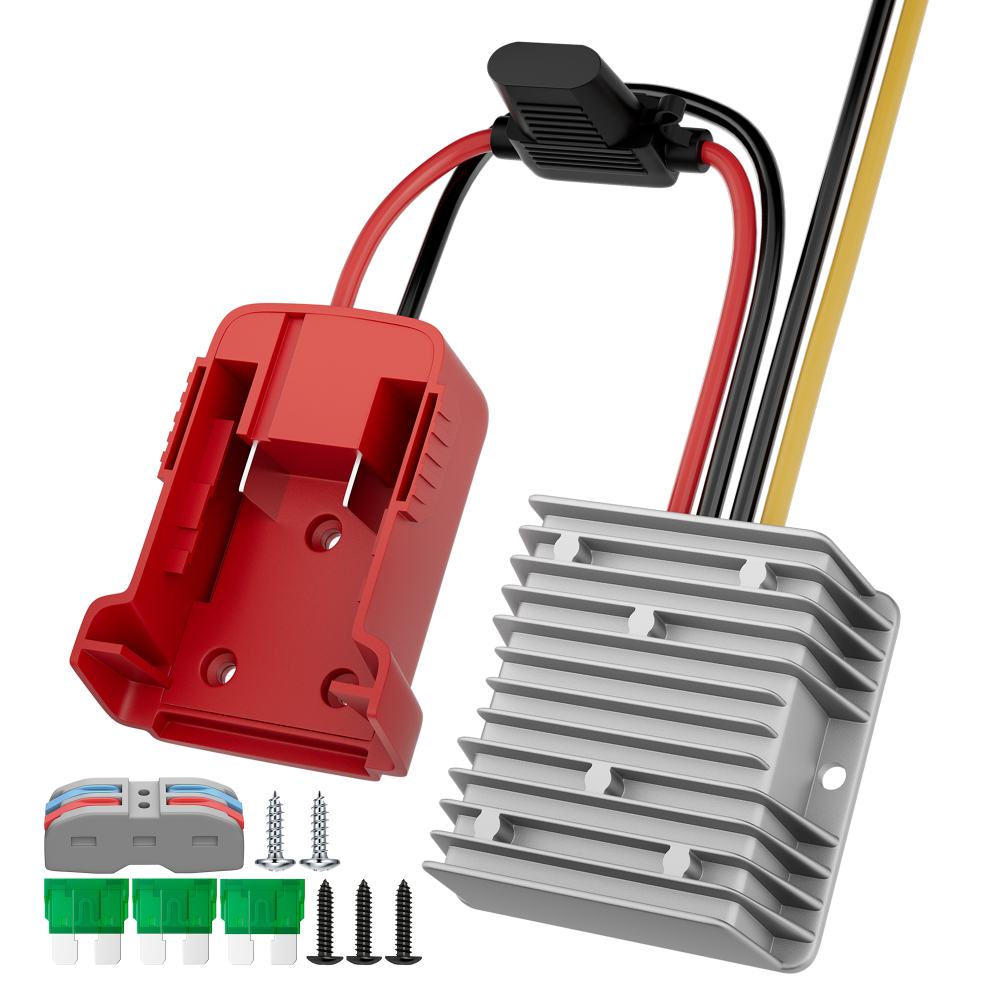

MWK-W1-12V20A Step Down DC 18V to 12V Converter Adapter Fit for Milwaukee M18 Batteries
Part#MWK-W1-12V20A
The step down DC 18V to 12V converter adapter is designed for Milwaukee M18 Batteries, boasts a remarkable 20A max output current, providing a high-power 240W output.
With perfect compatibility within the M18 Lithium-Ion series and comprehensive protection against overcurrent, overloading, overheating, and more, this adapter ensures safe and efficient voltage conversion.
Category :
Battery Holder & Adapters
MWK-W1 Step Down DC 18V to 12V Converter Adapter Fit for Milwaukee M18 Batteries Details
- High Output Current
Featuring a substantial 20A maximum output current, this converter efficiently steps down input voltages from 18V to 12V. This robust power supply supports a remarkable 240W of output power, enabling it to handle more substantial loads and power requirements compared to those with a mere 10A limit.
- Perfect Compatibility
Designed to perfectly complement the M18 Lithium-Ion series, this step-down converter is compatible with various models, including 48-11-1812, 48-11-1815, 48-11-1820, 48-11-1828, 48-11-1835, 48-11-1840, 48-11-1850, 48-11-1852, 48-11-1860, 48-11-1862, 48-11-1865, 48-11-1880, and more.
- Comprehensive Protection

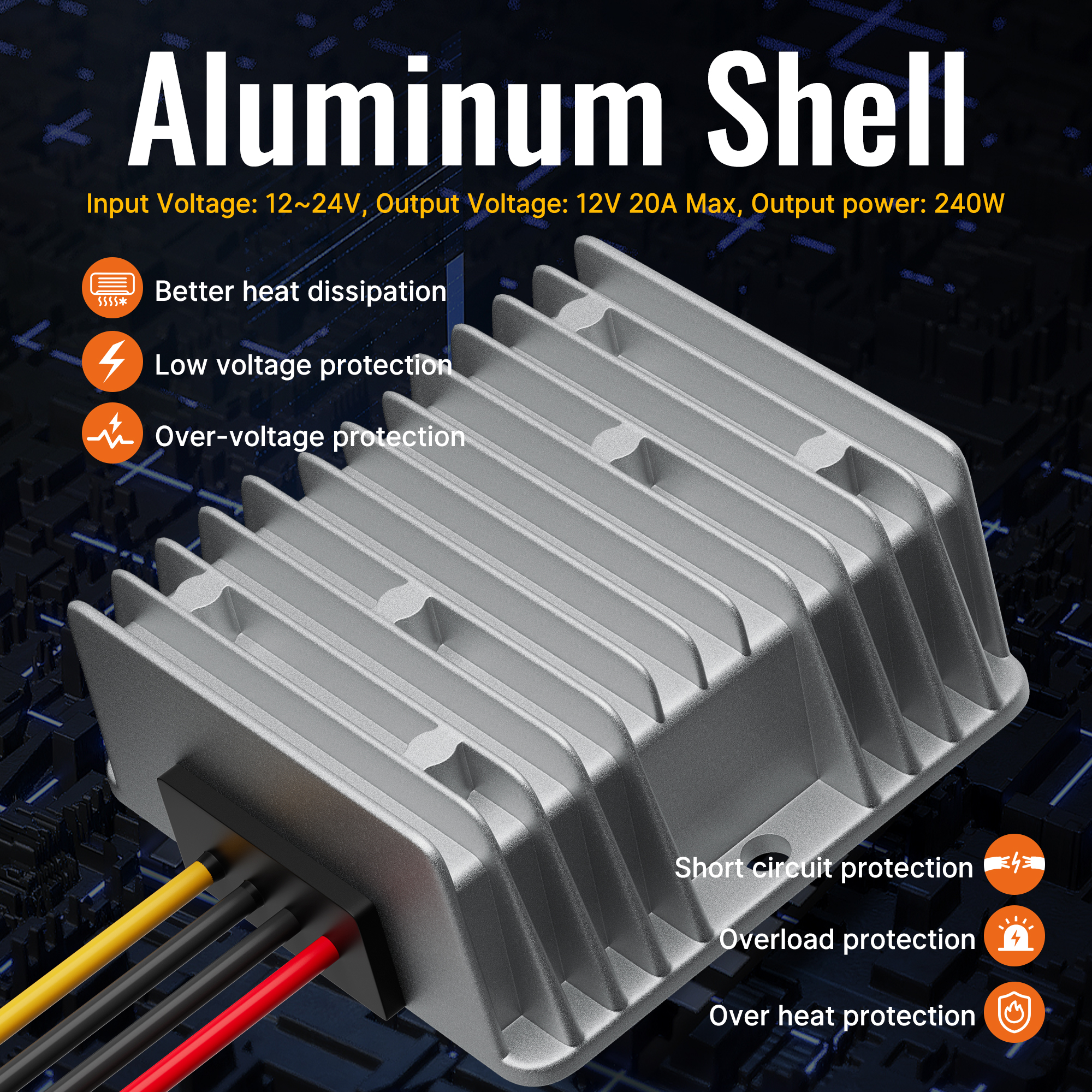

Equipped with multiple protective mechanisms, this step-down converter ensures the safety of your devices. It includes safeguards against overcurrent, overloading, low loads, overvoltage, undervoltage, overheating, and short circuits, providing reliable and secure operation.
- Versatile Applications
This M18 battery adapter is designed to convert 20V input to 12V power output, making it suitable for a wide range of applications. Whether you’re powering a power wheel, RC toys, golf carts, robotics, or embarking on various DIY projects, this converter delivers the voltage transformation you need.
- Important Note

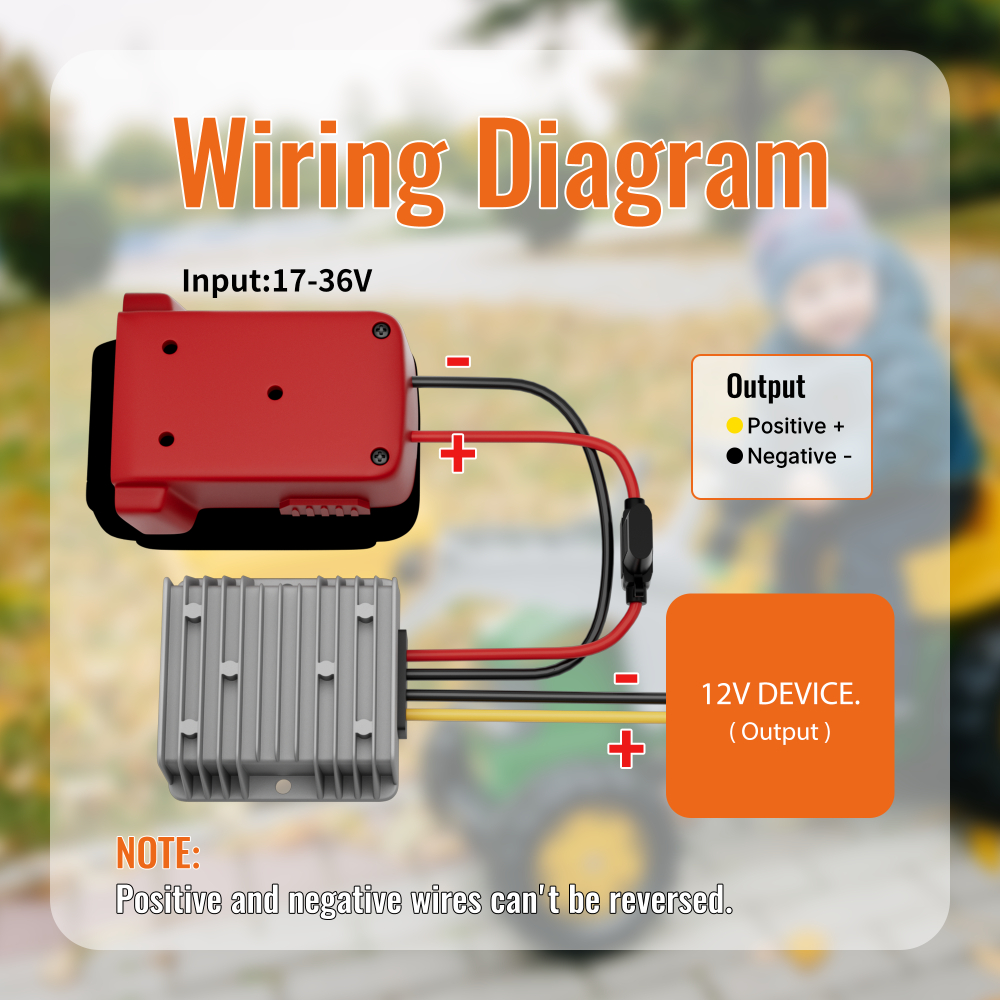

During the wiring process, exercise extra caution with the positive and negative wires to ensure the correct connections. If the adapter remains unused for extended periods, it’s advisable to detach it from the battery to preserve its functionality.
MWK-W1 Step Down DC 18V to 12V Converter Adapter Fit Datasheet
| Color | Red |
| Material | ABS + Aluminum |
| Battery Cell Composition | Lithium Ion |
| Input Voltage | DC 24 Volts |
| Output Voltage | DC 12 Volts |
| Connector Type | 2-Pin |
| Application | compatible with the M18 Lithium-lon series, such as 48-11-1812, 48-11-1815,48-11-1820,48-11-1828, 48-11-1835,48-11-1840, 48-11-1850, 48-11-1852, 48-11-1860, 48-11-1862,48-11-1865, 48-11-1880, etc. |
If you have any questions about the product or would like more information, we encourage you to contact us via email at sales1@chinadaier.com or through our live chat. We are here to help you and give you the information you need.
