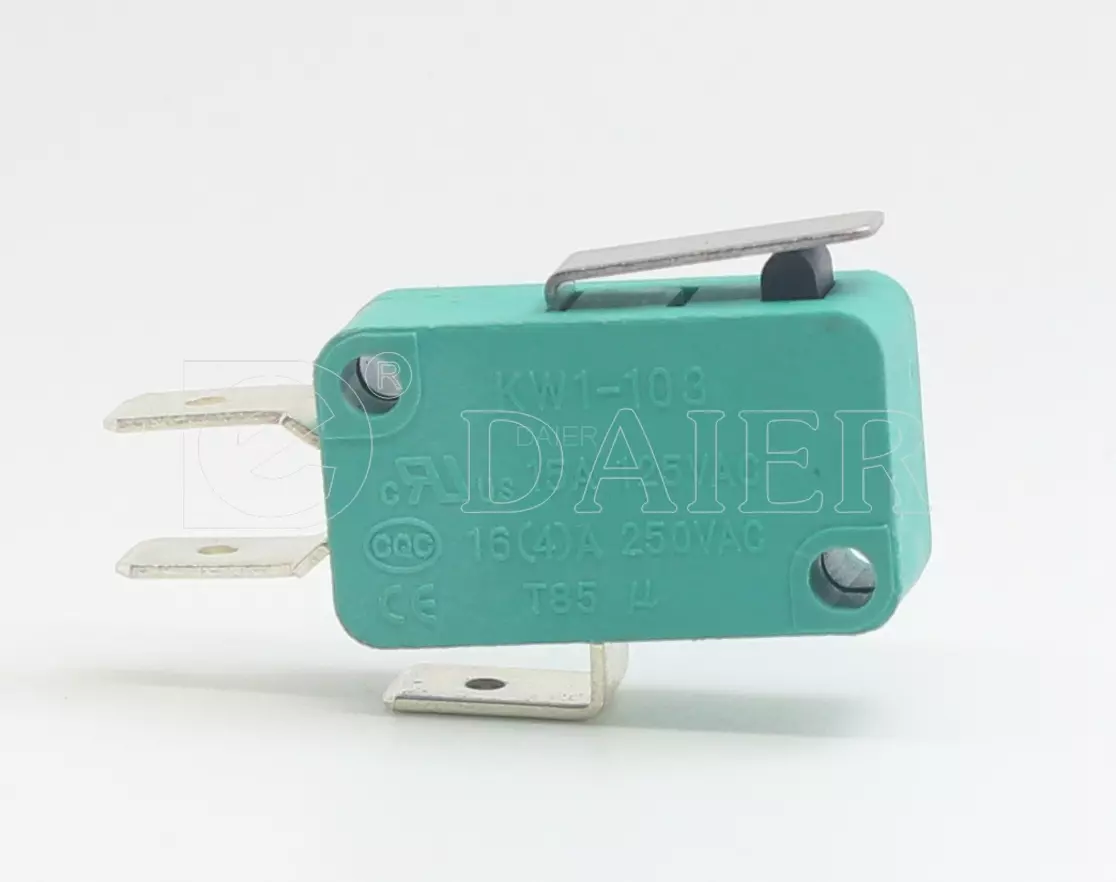

Microswitch KW1-103-2:
This is a SPDT microswitch which have a variety of actuator, like pin plunger, lever, and roller lever.
Electrical ratings from low levels up to 26 Amps, and a broad range of operating forces from 50gf to 400gf.
The micro switch terminal styles include PCB through hole, quick connect, screw and solder.
Mounting options include vertical, right angle, PCB and snap-in mounting.
They are widely used in Home appliance, like test Euqipment, Automotive, Arcade games, Medical Devices and so on.
Pls check the datasheet below:
Housing: | Nylon 66 | Lever: | Iron with nickle plate |
Terminal | Brass with sliver plated | House color: | Green or Black or Red |
Contact Configuration: | SPDT | Switch Operation: | OFF – momentary ON |
Rating: | 16A 250VAC/20A 125VAC | Operating Temperature: | -25℃~+85℃ |
Contact Resistance: | ≤30mΩ | Ambient Temperature Used: | 〈85% RH |
Insulation Resistance: | ≥100mΩ (500VDC) | Electrical Life: | ≥ 10,000 Cycles |
Dielectric strength: | 1500VAC 1 minute | Mechanical Life: | ≥ 100,000 Cycles |
Certification: | CE, CQC, TUV, SGS | OEM or ODM: | Available |
