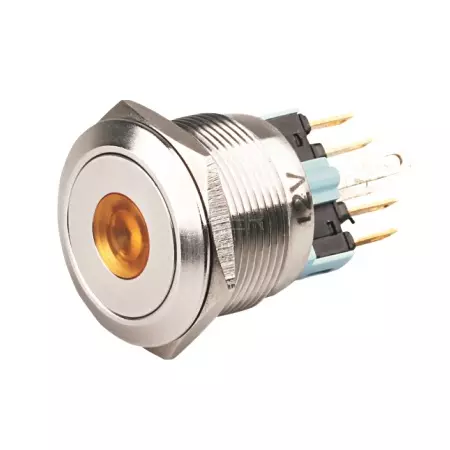

GQ22F-11D metal 22mm push button:
Daier announces the anti-vandal switch series, it is most popular item in our push button switch series.
They are RoHs certified, offering a rating of 3A 250VAC. The switch has even more features: it is IP67 rated and has a long operating life of up to 1,000,000 life cycles (momentary) and 500,000 (latching).
It offers multiple color ring illumination options,and multiple voltage options. For LED, it offers one color, bi-color, tri-color options.
It comes with 10, 12, 16, 19, 22, 25, 28, 30, 40mm etc. panel cutout size and SPDT or DPDT function.
For the switch body shell, plastic and metal are available, it offers multiple color options including black, white, yellow, blue, green, red, nickel and stainless steel.
These anti-vandal pushbutton switches are popular for use in kiosk applications, ticket dispensers and industrial-type applications etc.
We can’t talk out their advantage in a few words, but they are more and more popular in the world.
The GQ22F-11D metal 22mm push button related product, pls check the detailed information as below:
Pls check the datasheet below:
|Rating:||3A 250VAC||Contact Resistance:||50mΩ max|
|Electrical Life:||50,000 Cycles||Function:||momentary or latching|
|Dielectric strength:||2,000VAC 1 minute||Operating Temperature:||-25℃~+85℃|
|Insulation Resistance:||1,000mΩ min||Panel cutout:||10, 12, 16, 19, 22, 25, 28, 30, 40mm etc.|
|LED voltage:||3V, 6V, 12V, 24V, 48V, 110V, 220V||Waterproof Grade:||IP40-IP67|
|Contact Configuration:||Single Pole, Double Pole||OEM or ODM:||Available|
