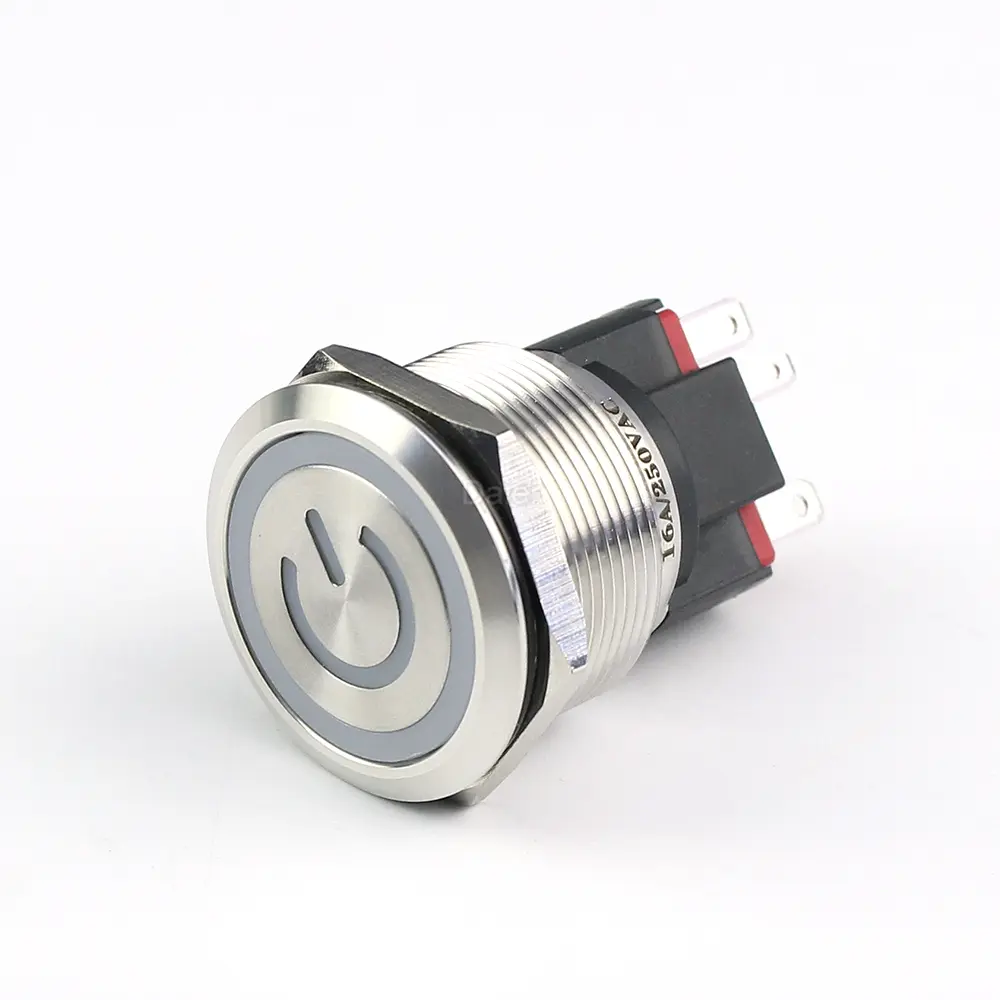

LAS3D-25F-11EPM 16A 25MM Push Button Switch
Part#LAS3D-25F-11EM
The 25mm push button switch with power symbol illuminated, function: DPST, 6 Pins, ON/OFF, momentary/latching; contact rating: 16A 250V AC.
Category :
25MM Anti-Vandal
LAS3D-25F-11EPM 16A 25MM Push Button Switch Details
- Easy Installation
Anti-vandal switches with screw clamp type terminal make the installation of switch simple and convenient.
- Visual Feedback
The switch and LED are separated, the LED can be on all the time or only on when the switch is on, depending on how you wire it.
- Strong Durability
Anti-vandal switches located on devices that are outdoors must be able to withstand extreme temperatures, dust, rain, snow, and ice.
- Sturdy Construction
Vandal-resistant switches are usually protected by the use of robust materials, such as thick stainless steel and heavy-duty plastics.
- Wide Application
It is suitable for electric equipment such as cars, trucks, boats, home appliances, industrial equipment, medical equipment, etc.
LAS3D-25F-11EPM/LAS3D-25F-11EPL Datasheet
| Function | DPST, 6 Pins, ON/OFF, Momentary/Latching, With LED |
| Crust Material | Stainless steel/Copper plated nickel |
| Contact Rating | 16A 250VAC |
| Contact Resistance | ≤ 50mΩ |
| Insulation Resistance | ≥ 100mΩ 500V DC |
| Dielectric Strength | 2,000V AC 1Min |
| Operating Temperature | -25℃~+55℃ |
| Mechanical Life | ≥100,000 Cycles |
| Electrical Life | ≥20,000 Cycles |
| IP Class | IP65 |
| Operating Force | 3.5±1N |
| LED Color | Red/Yellow/Blue/Green/White |
LAS3D-25F-11EPM/LAS3D-25F-11EPL Related Product
| LAS3D-25F-11EM | DPST, 6 Pins, ON/OFF, Momentary, Ring illuminated |
| LAS3D-25F-11EL | DPST, 6 Pins, ON/OFF, Latching, Ring illuminated |
| LAS3D-25F-11EPM | DPST, 6 Pins, ON/OFF, Momentary, Power symbol illuminated |
| LAS3D-25F-11EPL | DPST, 6 Pins, ON/OFF, Latching, Power symbol illuminated |
Our company’s LAS3 series push button switches have passed the UL certification!
