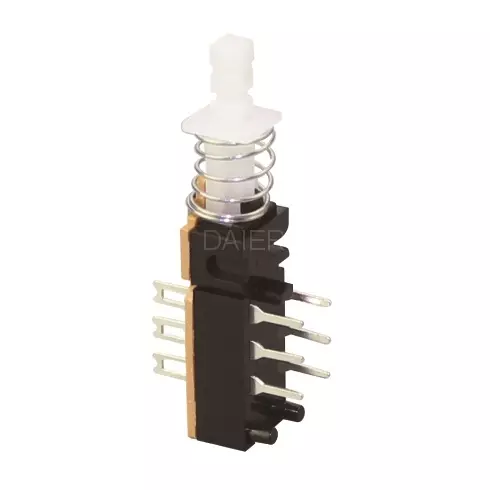

KZJ2X2-A PCB Mount Lock Switch
KZJ2X2-A PCB Mount Self Lock Switch ON ON
KZJ2X2-A PCB Mount Lock Switch
Push button switch is one of the most easy and quick to operate.
The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers.
KZJ2X2-A PCB Mount Lock Switch related product, pls check the detailed information as below:
| KZJ2X2-A： | ON-ON |
| KZJ2X2-B: | ON-(ON) |
Pls check the datasheet below:
| Rating: | 0.5A 50VDC | Contact Resistance: | 100mΩ max |
| Electrical Life: | ≥ 10,000 Cycles | Function: | ON-(ON) or ON-ON |
| Dielectric strength: | 500VAC 1 minute | Operating Temperature: | -25℃~+85℃ |
| Insulation Resistance: | 100mΩ min (500VDC) | OEM or ODM: | Available |
