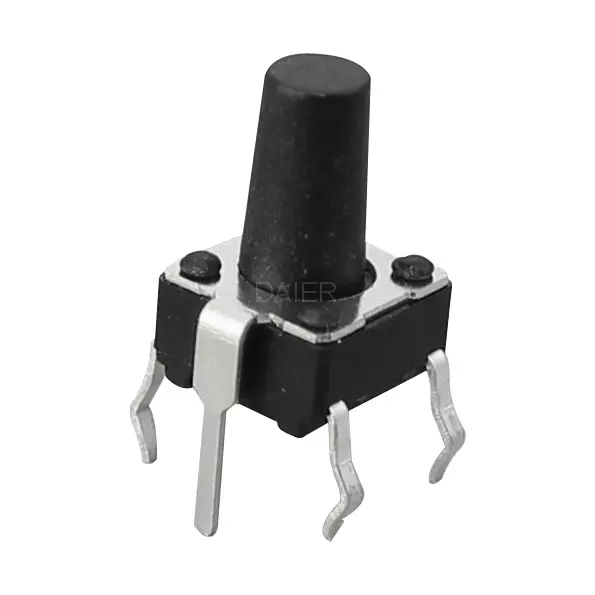

KFC-A06R5-H Tactile Switch Manufacturers:
KFC-A06R5-H is an on/off electronic tactile switch manufacturers that is only on when the button is pressed or if there is a definitive change in pressure.
It was used for circuit board, there are many different kinds of height for the switch knob, the standard height range is 4.3mm to 23mm.
The Tactile Switch applications include: Low power, miniature devices, digital switching, anything where operator feedback is required (a switch confirmation coming from the switch being depressed) will find that the perfect choice is a Tactile switch.
Pls check the datasheet below:
| Type: | Snap-in | Operating force: | 0.98N |
| Operating Direction: | Top Push | Travel: | 0.25mm |
| Operating Life: | Over 100,000 cycles | Initial contact resistance: | 100mΩ max. |
| Stem color: | Black | Operating Temperature: | -40℃~+90℃ |
| Stem height: | H=4.3-23mm | Series type: | Sharp feeling type |
| Rating (max.): | 50mA 12V DC | Rating (min.): | 10µA 1V DC |
| SPQ: | 1,000pcs | OEM or ODM: | Available |
