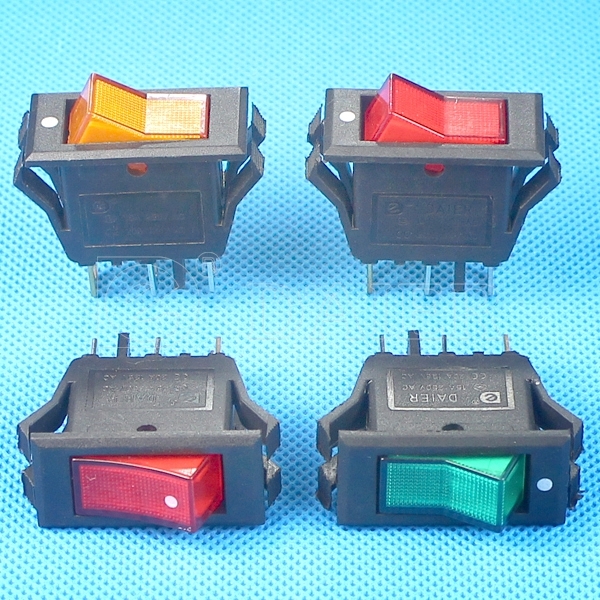

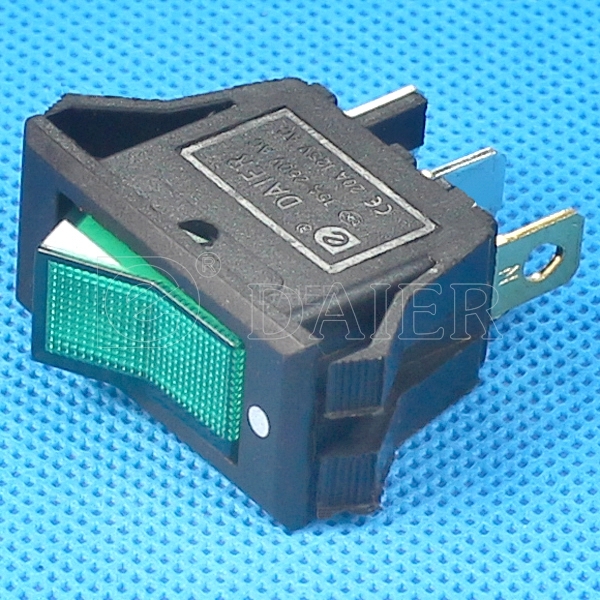

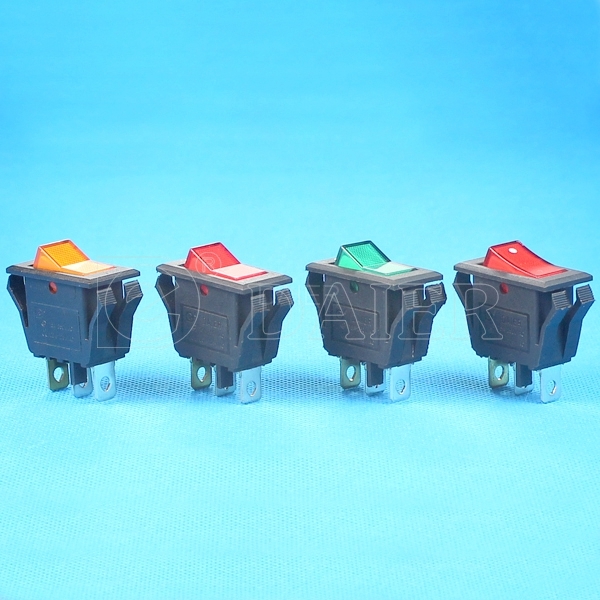

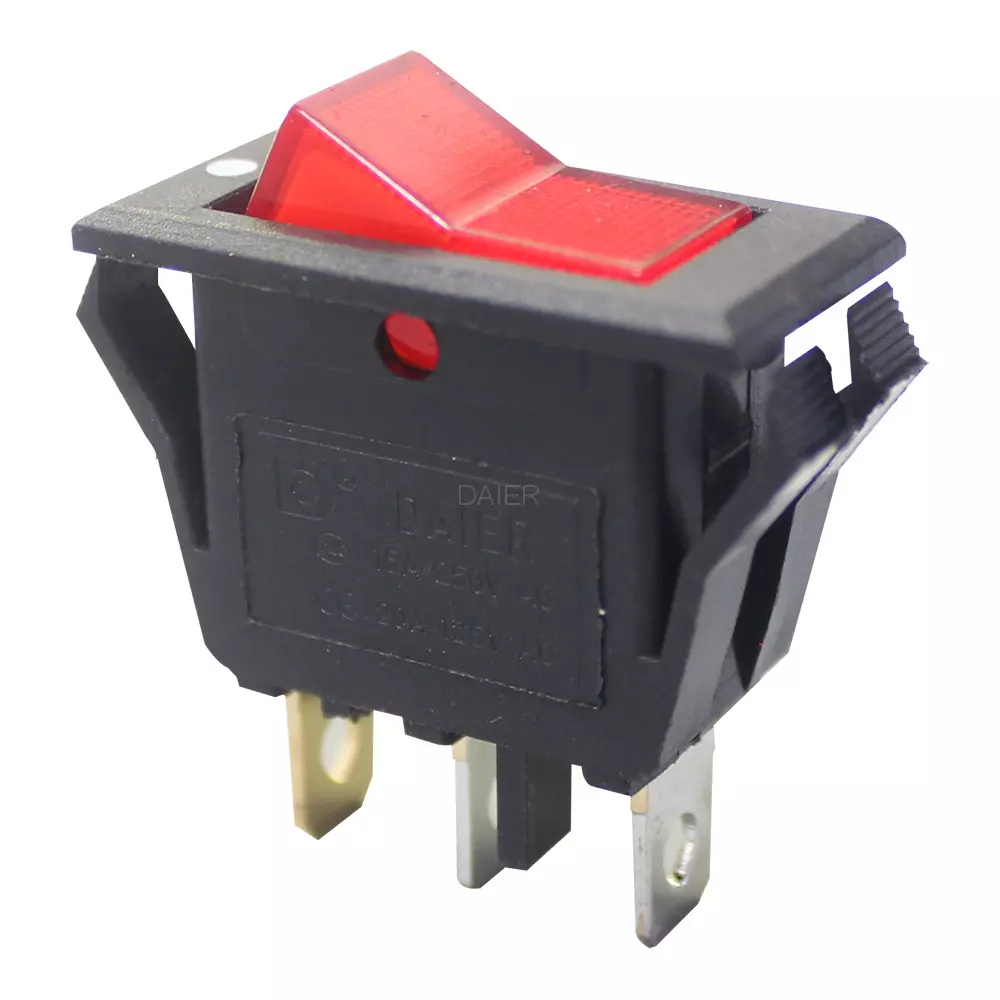

KCD3-2-101NV 12V Led Rocker Switch
KCD3-2-101NV 12V Led Rocker Switch
Daier KCD3-2-101NV on off medium size rocker switch offer a high switching current in a compact design.
It is a snap-in mounted rocker switch with a high mechanical life in a rugged nylon 66 housing.
They have high quality for long life at heavy loads and industry-standard mounting dimensions.
This rocker switches can be used in a variety of applications, like water dispenser and extension socket and so on.
High quality Boat Rocker Switch from leading manufacturer Daier
If you want to know the 12V Led Rocker Switch , please contact us, I will check and reply to you.

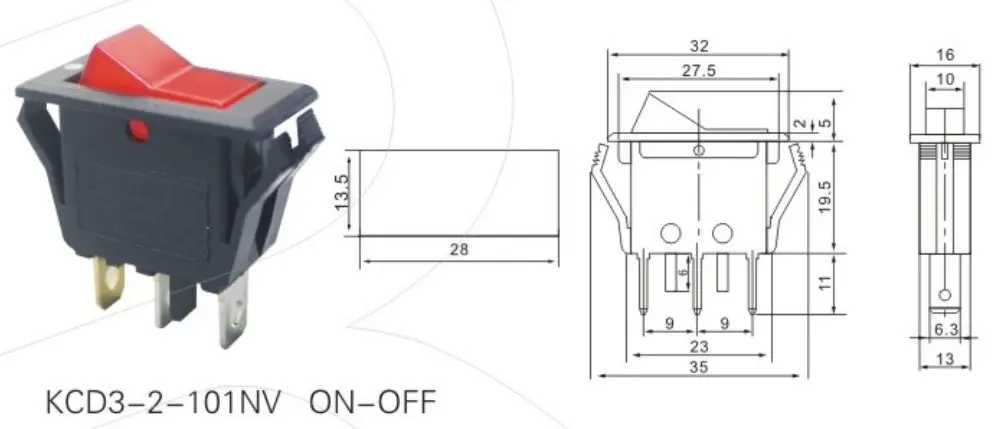

KCD3-2-101NV 12V Led Rocker Switch datasheet below
| Housing: | Nylon 66 | Button: | Nylon 66 |
| Terminal: | Brass with sliver plated | Button color: | Red,green,yellow,blue etc. |
| Rating: | 20A 125VAC/15A 250VAC | Housing color: | Standard black |
| Contact & Function: | SPST,ON-OFF | Lamp Voltage: | 220V/12V/24V |
| Contact Resistance: | 35mΩ max | Operating Temperature: | -25℃~+85℃ |
| Insulation Resistance: | 100mΩ min (500VDC) | Electrical Life: | ≥ 10,000 Cycles |
| Dielectric strength: | 1500VAC 1 minute | Mechanical Life: | ≥ 100,000 Cycles |
| Certification: | CE, CQC, SGS | OEM or ODM: | Available |
