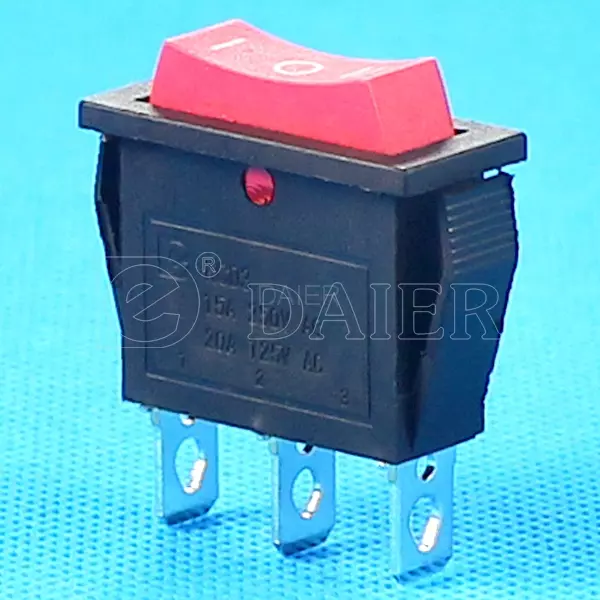

KCD3-103 High Current 20A 125VAC / 15A 250VAC Snap-In ON-OFF-ON 3 Position Rocker Switch
Part#KCD3-103
The 3 position rocker switch offers a ON-OFF-ON configuration with 20A 125VAC / 15A 250VAC and have 0.250 inch quick-connect terminal block for easy wiring.
Its compact design, durable construction, and easy snap–in installation make it ideal for various applications.
KCD3-103 20A 125VAC / 15A 250VAC ON–OFF–ON 3 Position Rocker Switch
- Compact and Powerful
The 3 position rocker switch offers a space-saving design without compromising on performance. This medium-sized rocker switch delivers high switching current capacity, making it suitable for various demanding applications.
- Durable Construction and Easy Installation
The ON–OFF–ON rocker switch features a rugged nylon 66 housing and snap-in mounting to ensure reliable operation and easy installation. Its high-quality construction ensures a long service life, even under heavy loads.
- Versatile Applications
This rocker switch is perfect for a wide range of applications, including water dispensers, extension sockets, industrial machinery, power tools, toys, automobiles, communication devices, and digital products.
- Multiple Ratings and Customization Options
Choose from 10A/125VAC or 6A/250VAC options to meet your specific power requirements. Daier also provides professional design services for customized solutions tailored to your unique needs.
- Safety Certifications and Compliance
The High Current rocker switch holds CE, CQC, and RoHS certifications, ensuring adherence to quality and safety standards. Trust in Daier for reliable and compliant switching solutions.
It has a 0.250 inch Quick-Connect terminal block.
KCD3-103 3 Position Rocker Switch Datasheet
| Housing: Nylon 66 | Button: Nylon 66 |
| Terminal: Brass with silver plating | Button Color: Black and red color etc. |
| Rating: 20A 125VAC / 15A 250VAC | Housing Color: Standard black |
| Contact Configuration: SPDT | Switch Operation: ON-OFF-ON |
| Contact Resistance: 35mΩ max | Insulation Resistance: 100mΩ min (500VDC) |
| Dielectric strength: 1500VAC 1 minute | Operating Temperature: -25℃~+85℃ |
| Electrical Life: ≥ 10,000 Cycles | Mechanical Life: ≥ 100,000 Cycles |
| Certification: CE, CQC, SGS | OEM or ODM: Available |
