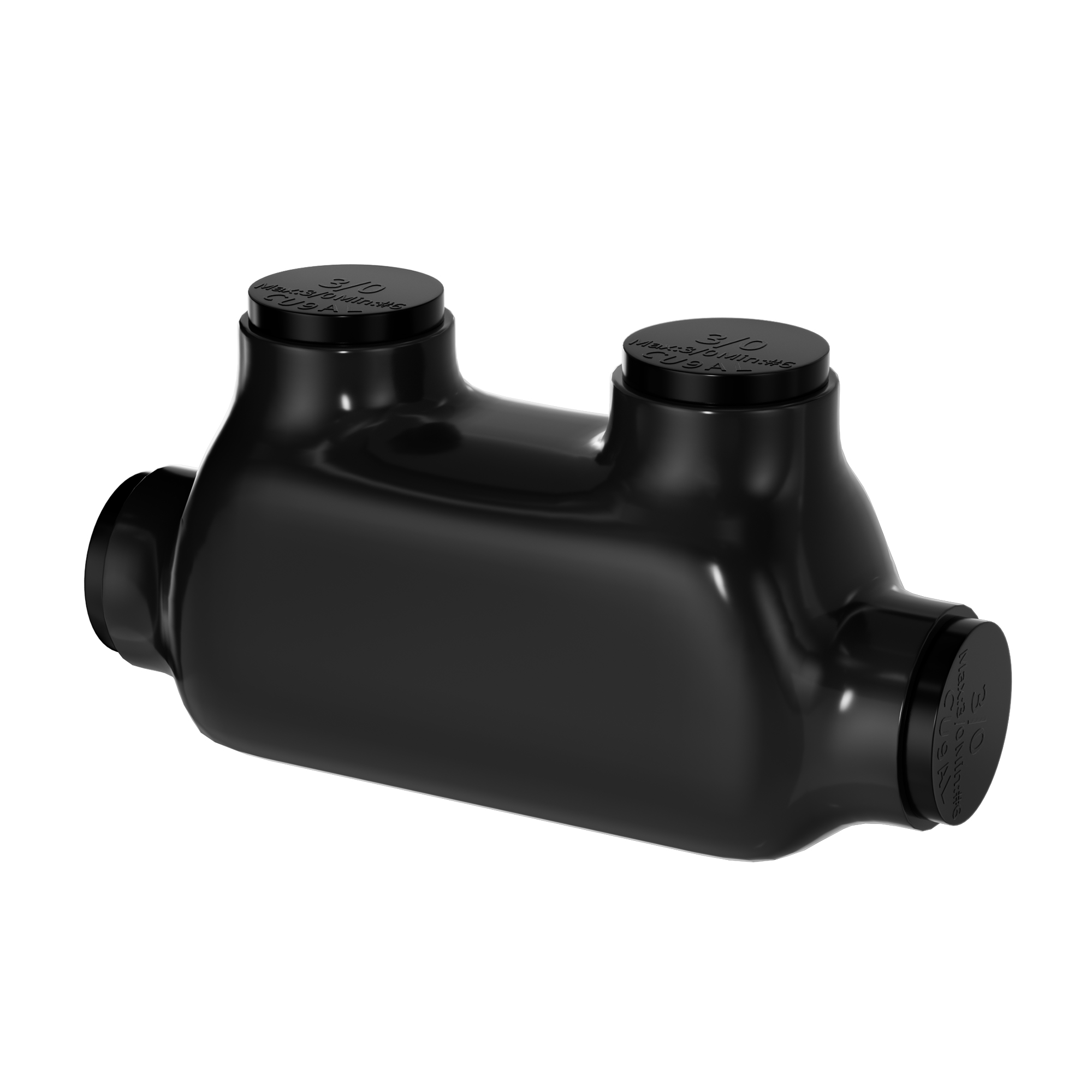

ITC-101-3/0AWG 3/0 AWG – 6 AWG 2-Port Inline Splice Multi-Tap Pre-Insulated Connector
Part#ITC-101-3/0AWG
The 3/0 AWG – 6 AWG 2-port inline splice multi-tap pre-insulated connector is designed to securely connect copper and aluminum wires and prevent overheating issues.
Featuring a unique hex screw fixation system and antioxidant lubricating oil, these connectors ensure reliable performance and easy wire insertion.
3/0 AWG – 6 AWG 2-Port Inline Splice Multi-Tap Pre-Insulated Connector Details
- Versatile Splicing
This 2-port inline splice connector is designed to simplify and enhance wire splicing for demanding electrical projects. It accommodates wire gauges ranging from 3/0 MCM to 6 AWG, making it suitable for a wide range of applications, from high-power circuits to smaller wiring needs.
- Secure Connections
The multi-tap connector utilizes a hex screw fastening system for a secure and reliable connection. It also includes lubricating oil with antioxidant properties, minimizing corrosion and ensuring smooth, lasting connections between wires.

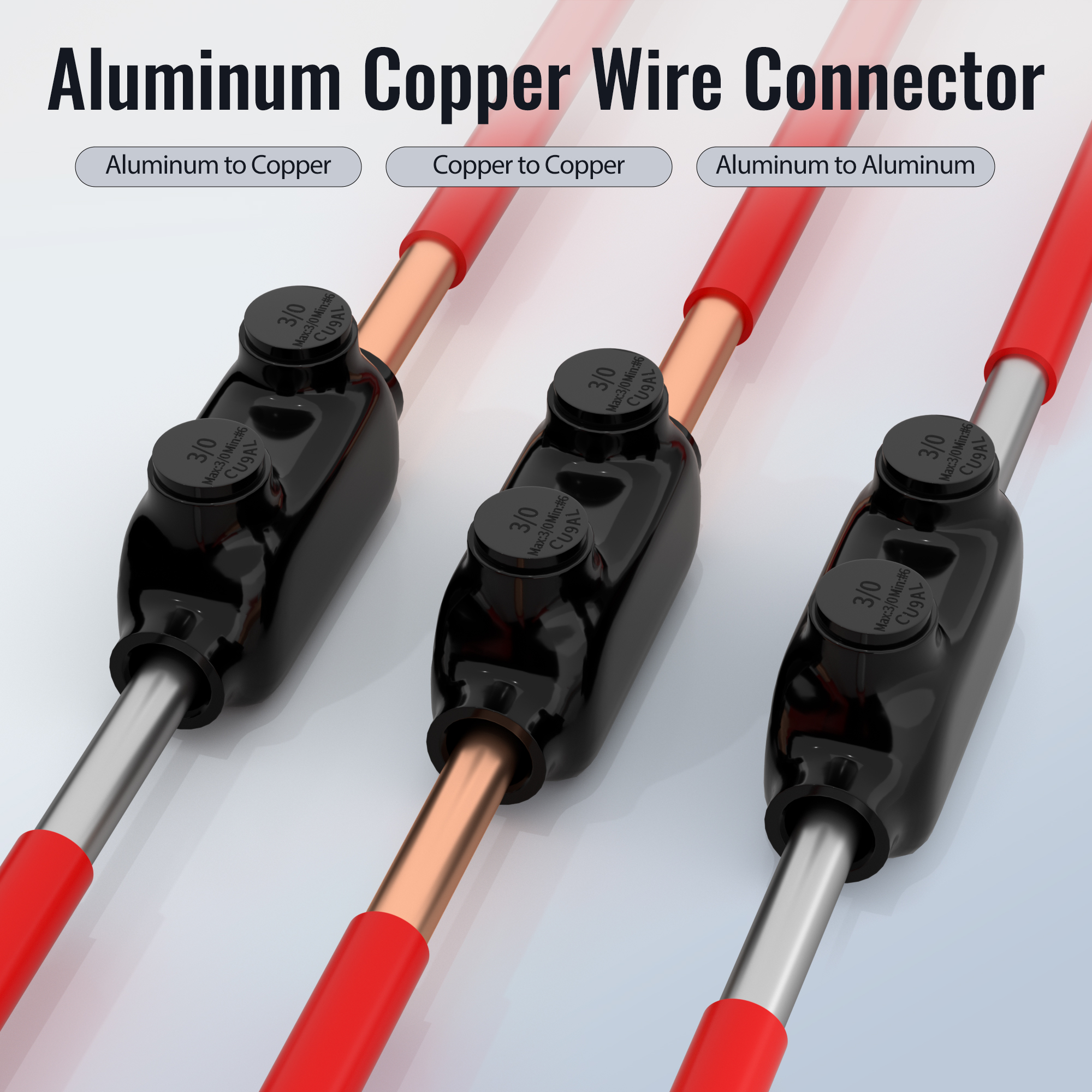

- Copper & Aluminum Compatibility
This pre-insulated connector allows for seamless splicing between copper and aluminum wires, eliminating the risk of corrosion and electrical issues often associated with dissimilar metal connections. Its design ensures safe and reliable operation in mixed-metal wiring scenarios, making it a versatile solution for various applications.
- Enhanced Insulation
The 2-port connector features high dielectric strength plastic insulation, providing superior chemical protection and wear resistance. This robust insulation safeguards against moisture, abrasion, and other environmental factors, ensuring long-term reliability and performance.

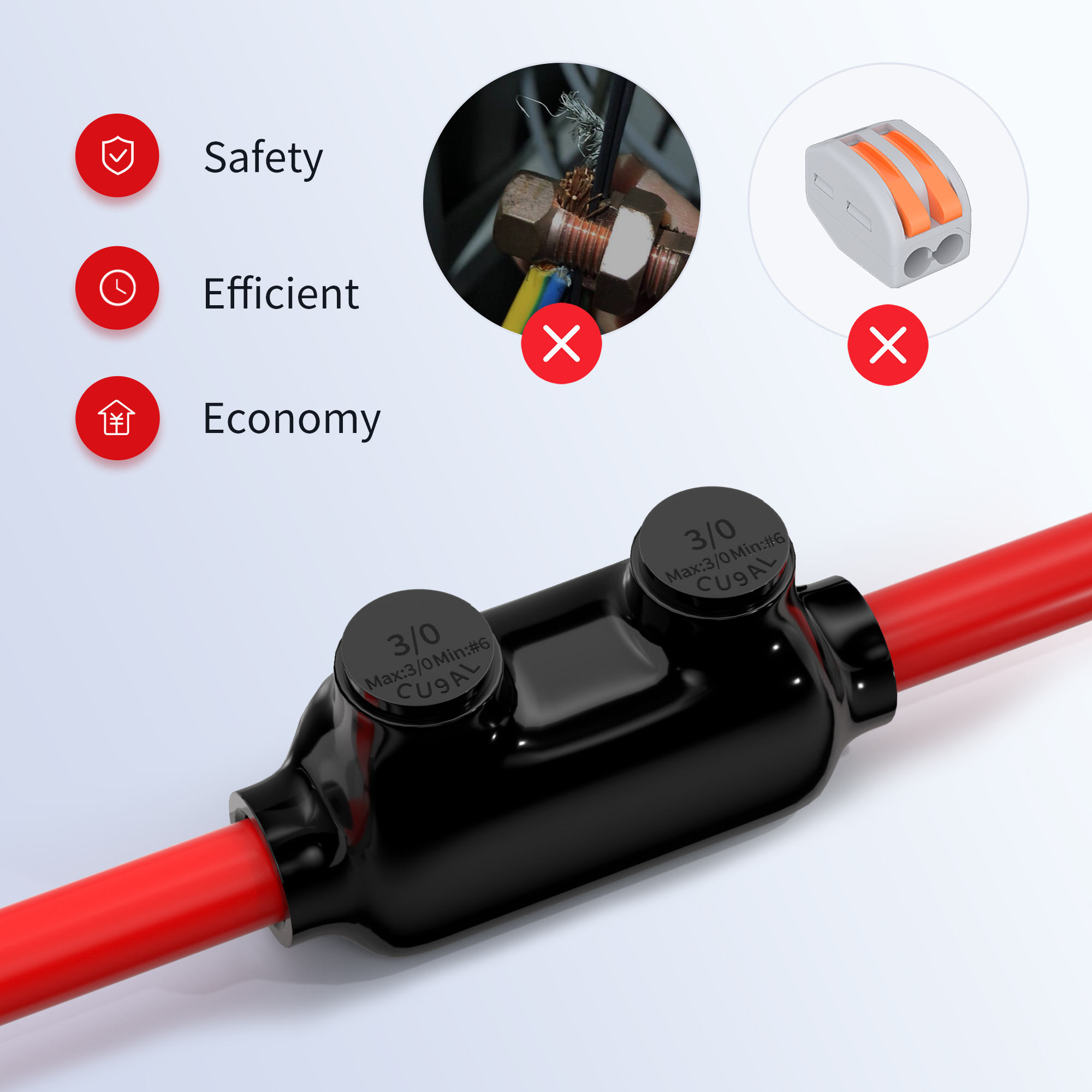

- Convenient & Safe Design
The design of this pre-insulated connector offers numerous advantages over traditional butterfly nut connectors. It allows for easy removal and re-insertion of cables, simplifying maintenance and adjustments. The connector’s larger wire diameter range and high current capacity make it a safe and reliable choice for both large and small electrical projects.
3/0 AWG – 6 AWG 2-Port Inline Splice Multi-Tap Pre-Insulated Connector Datasheet
| Part NO | ITC-101-3/0AWG |
| Voltage Rating | 600V |
| Wire Range | 3/0 AWG – 6 AWG |
| Bolt | Hex Head |
| Allen Hex | 5/16″ |
| Wire Ports | In-line Splice |
| Conductor Type | Cooper, Aluminum |
| Finish | UV resisted plastisol |
| Temperature Rating | -49°F – 194°F |
| Certification | UL |
