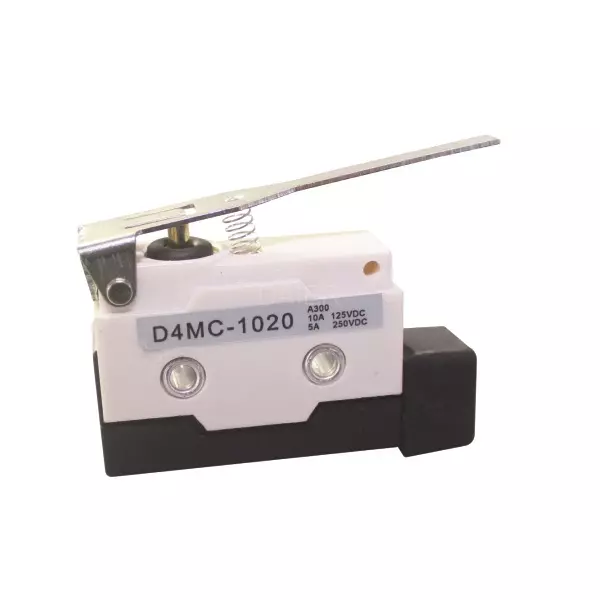

D4MC-1020 heavy duty micro switch:
The D4MC-1020 heavy duty micro switch of basic switches in plastic housing provide the same electrical and mechanical switching capability and lifetime as standard limit switches.
A large switching capacity of 15 A with high repeat accuracy.
A wide range of variations in contact form for your selection: basic, split-contact, maintained-contact, and adjustable contact gap types.
A series of standard models for micro loads is available.
A series of molded terminal-type models incorporating safety terminal protective cover is available.
Pls check the datasheet below:
Housing: | Nylon 66 | Lever: | long lever |
Contact Configuration: | SPDT | Switch Operation: | OFF – momentary ON |
Rating: | 15A 125V/250V | Operating Temperature: | -25℃~+80℃ |
Contact Resistance: | ≤30mΩ | Electrical Life: | ≥ 100,000 Cycles |
Insulation Resistance: | ≥100mΩ (500VDC) | Mechanical Life: | ≥ 1,000,000 Cycles |
Degree of protection: | IP00 | OEM or ODM: | Available |
