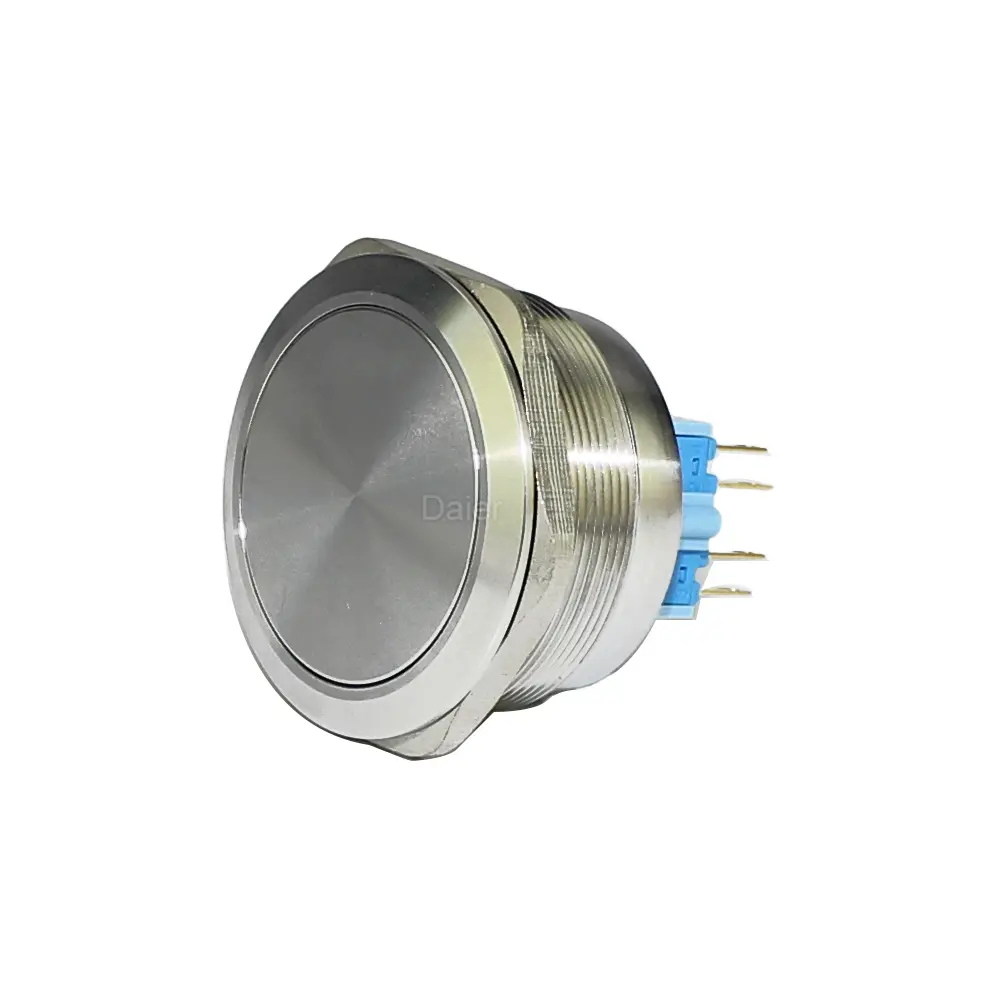

GQ40F-22L 40MM Latching Push Button Switch
Part#GQ40F-22L
The 40mm latching push button switch without LED, function: IP67, DPDT, 2NO+2NC; contact rating: 3A 250V AC.
The switch is constructed of stainless steel and has IP67 waterproof protection for use in wet or dusty environments.
Category :
40mm Anti-Vandal
GQ40F-22L 40MM Latching Push Button Switch Details
- Easy Installation
Anti-vandal switches with screw clamp type terminal make the installation of switch simple and convenient.
- Strong Durability
Anti-vandal switches located on devices that are outdoors must be able to withstand extreme temperatures, dust, rain, snow, and ice.
- Sturdy Construction
Vandal-resistant switches are usually protected by the use of robust materials, such as thick stainless steel and heavy-duty plastics.
- Wide Application
It is suitable for electric equipment such as cars, trucks, boats, home appliances, industrial equipment, medical equipment, etc.
GQ40F-22M/GQ40F-22L Datasheet
| Function | DPDT, 2NO 2NC, Momentary/Latching, Non-illuminated |
| Crust Material | Stainless steel |
| Contact Rating | 3A 250VAC |
| Contact Resistance | ≤ 50mΩ |
| Insulation Resistance | ≥ 1000mΩ |
| Dielectric Strength | 2,000V AC 1Min |
| Operating Temperature | -25℃~+55℃ |
| Mechanical Life | ≥1,000,000 Cycles |
| Electrical Life | ≥50,000 Cycles |
| IP Class | IP67, IK10 |
| Operating Force | 3.5±1N |
GQ40F-22L Related Product
| GQ40F-22M | Flat round, DPDT, 2NO+2NC, Momentary, Without LED |
| GQ40F-22L | Flat round, DPDT, 2NO+2NC, Latching, Without LED |
| GQ40B-22M | Domed round, DPDT, 2NO+2NC, Momentary, Without LED |
| GQ40B-22L | Domed round, DPDT, 2NO+2NC, Latching, Without LED |
| GQ40H-22M | High round, DPDT, 2NO+2NC, Momentary, Without LED |
| GQ40H-22L | High round, DPDT, 2NO+2NC, Latching, Without LED |
GQ40F-22M Dimensioned Drawing
Our company’s GQ series push button switches have passed the RoHS certification!
Still, have a question about the GQ40F-22M/GQ40F-22L that wasn’t answered on this page? Please get in touch with us at sales1@chinadaier.com or live chat!
