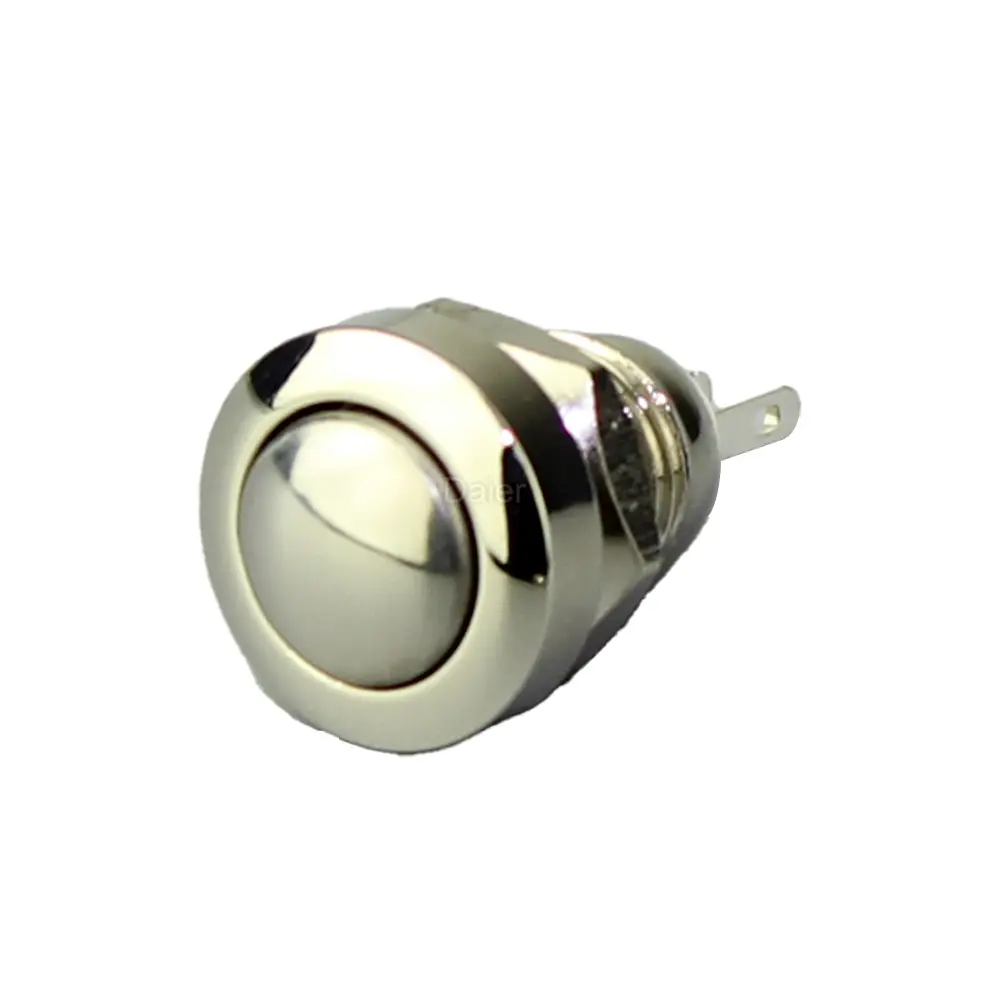

GQ-8BJ 8mm 2Pin 1NO Mini Push Button Switch


The mini push button switch is an 8mm waterproof dome button with nickel-plated brass, function: normal open, 2 Pin, 1NO, momentary; contact rating: 3A 250VAC.

The switch is widely used in the model construction or automotive sector,it can be applied in electrical components such as relays and electromagnetic starters.

GQ-8BJ Mini Push Button Switch Details

  • Easy Installation

Anti-vandal switches with screw clamp type terminal make the switch installation simpler and more convenient.

  • Strong Durability

Anti-vandal switches located on devices that are outdoors must be able to withstand extreme temperatures, dust, rain, snow, and ice.

  • Sturdy Construction

Vandal-resistant switches are usually protected by the use of robust materials, such as thick stainless steel and heavy-duty plastics.

  • Wide Application

It is suitable for electric equipment such as cars, trucks, boats, home appliances, industrial equipment, medical equipment, etc.

GQ-8BJ Datasheet

Function 1NO, Momentary
Contact Rating 3A/250V AC
Contact Resistance 3V DC, 50mΩ Max
Insulation Resistance 500V DC, 100MΩ min
Operating Temperature -20℃~+85℃
Electrical Life 10,000 Cycles
Mechanical Life 100,000 Cycles
IP Class IP65, IK08
