FB-1714-2 12 Circuits Blade Fuse Block with Negative Bus and Cover and LED Indicators
Part#FB-1714-2

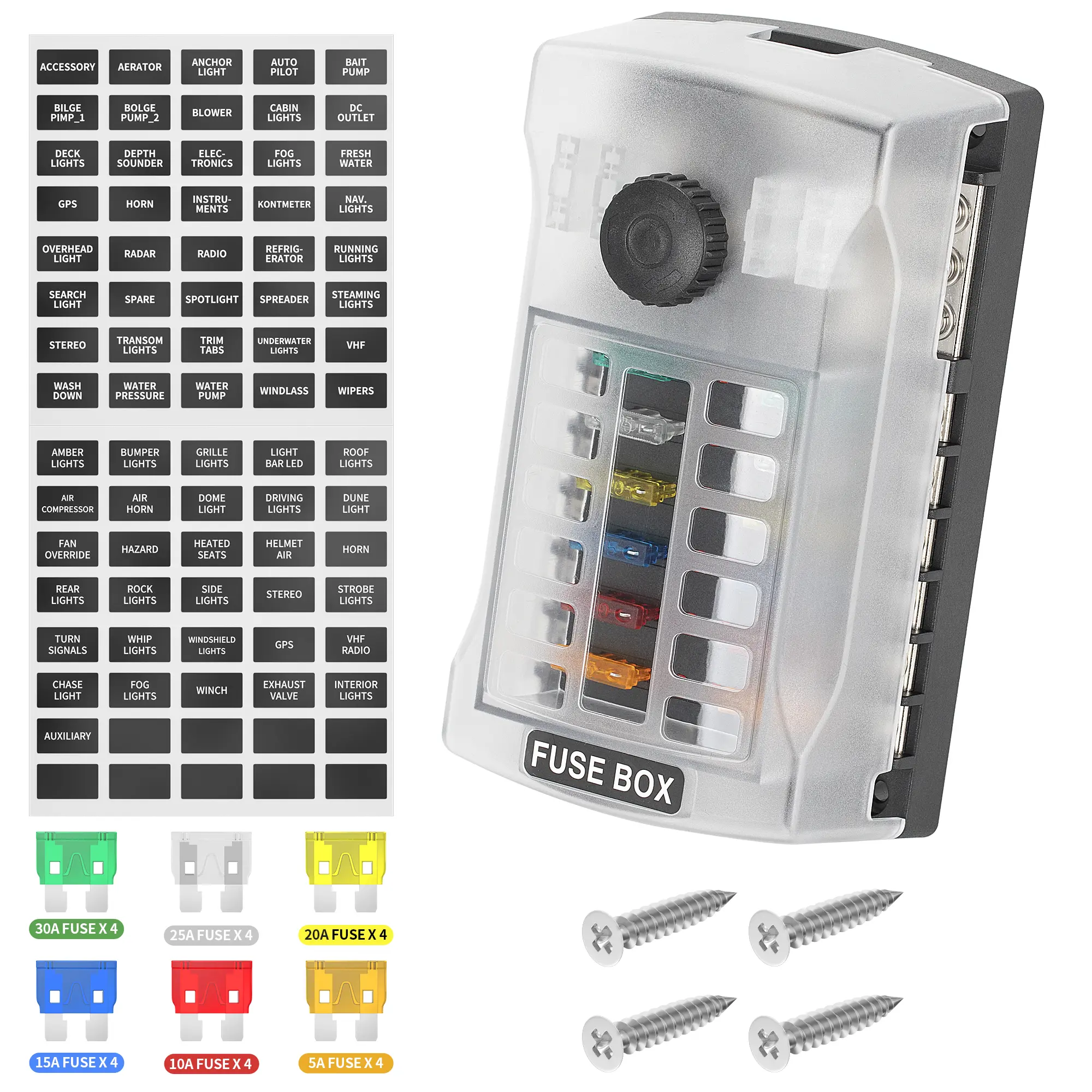

The 12 circuits blade fuse block is an innovative and durable solution, featuring LED warning indicators, transparent protective covers, and spare fuse slots.
With a versatile design and comprehensive package, it ensures safe and easy management of electrical appliances in cars, trucks, boats, and more.
FB-1714-2 12 Circuits Blade Fuse Block Details
- Innovative 12-Circuit Design
The redesigned 12-way blade fuse block accommodates standard ATC/ATO(middle size) fuses, offering 12 circuits with dual positive power inputs and a negative bus for clear circuit visualization. With a maximum operating voltage of 60V DC, it provides branch circuit protection with excellent conductivity, supporting up to 40 Amp per circuit and 300 Amp per panel.
- LED Warning Indicator & Durable Material
The red LED warning light instantly illuminates upon a blown fuse, providing a safe and easy means of identifying and replacing the faulty fuse. Constructed from environmentally friendly PBT material, this fuse holder meets high standards, ensuring mechanical strength, insulation, heat resistance, and flame resistance.
- Protective Cover & Spare Fuse Slots
The transparent plastic cover with screw nut design ensures easy operation while offering splash and dust-proof protection. The included multi-function stickers facilitate DIY customization for specific needs, making examination and repair convenient, especially in outdoor settings. Spare fuse slots provide storage for extra fuses.
- Versatile Application
Widely used in various vehicles, including cars, trucks, boats, tankers, SUVs, yachts, RVs, vans, and ships, this 12-circuit fuse block connects to any electrical appliance circuit. It supports a range of applications such as car dome lights, headlights, fog lamps, warning lights, car refrigerators, car chargers, car fans, and car TVs.
- Comprehensive Package
The package includes an upgraded 12-way blade fuse block with a protective cover, along with a variety of fuses (40A, 30A, 20A, 15A, 10A, 5A), screws, and stickers. For any inquiries about this 12-way fuse box holder, feel free to contact our customer service team, dedicated to providing assistance.
FB-1714-2 12 Circuits Blade Fuse Block Datasheet
| Circuits | 12 |
| Connection Terminal | 24 |
| Main Line Terminal | M5 threaded stud |
| Main Wire | ＃4-6 |
| Single Wire Terminal | M4 threaded stud |
| Single Wire | #12-16 |
| Maximum Amperage | 100A per block & 30A per circuit |
| Maximum Voltage | 32V DC |
| Input Voltage | 12V-24V DC |
If you have any questions about the product or would like more information, we encourage you to contact us via email at sales1@chinadaier.com or through our live chat. We are here to help you and give you the information you need.
FB-1714-2 12 Circuits Blade Fuse Block Wiring Diagram
