DM-R01

DM-R01

Category :

Dip Switch

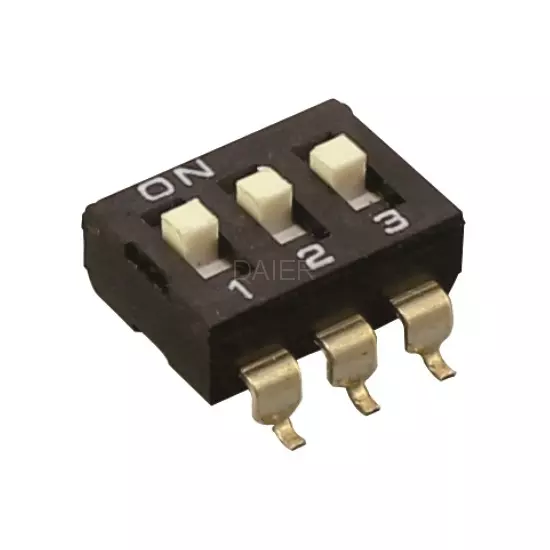

DM-R01 dip smd:

Daier series of surface mount half-pitch DIP switches, low profile and standard profile DIP switches, rotary and coded DIP switches, coded rotary DIP switches, SIP switches and jumper switches feature a variety of extended actuator and flush actuator styles. Daier DIP switches are available in surface mount, through-hole, right angle and vertical mounting options.

Most Daier miniature and ultraminiature DIP switches are process sealed for automated assembly (some require tape seal) and are available in SMT and thru-hole termination.

Our large selection includes surface mount, through-hole, rotary, standard and half pitch, and multiple actuator designs. Consistent high contact pressure is achieved with a spring and ball contact system on select series. Other features include a low-profile, miniature versions, standard base seal, optional top-tape seal and also tape and reel packaging. Our DIP switch can be customized for your specific application.

The DM-R01 dip smd related product, pls check the detailed information as below:

 DM-R01: 1 position
 DM-R02: 2 position
 DM-R03: 3 position
 DM-R04: 4 position
 DM-R05: 5 position
 DM-R06: 6 position
 DM-R07: 7 position
 DM-R08: 8 position
 DM-R09: 9 position
 DM-R10: 10 position
 DM-R11: 11 position
 DM-R12: 12 position

Pls check the datasheet below:



Contact Rating:100mA 50VDCElectrical Life:2,000 cycles per position
Terminal:Brass with gold platedContact Resistance:500mΩ max
Dielectric strength:500VAC 1 minuteMechanical Life:≥ 100,000 Cycles
Insulation Resistance:100mΩ min (500VDC)Operating Temperature:-25℃~+85℃
