Category :

Binding Post

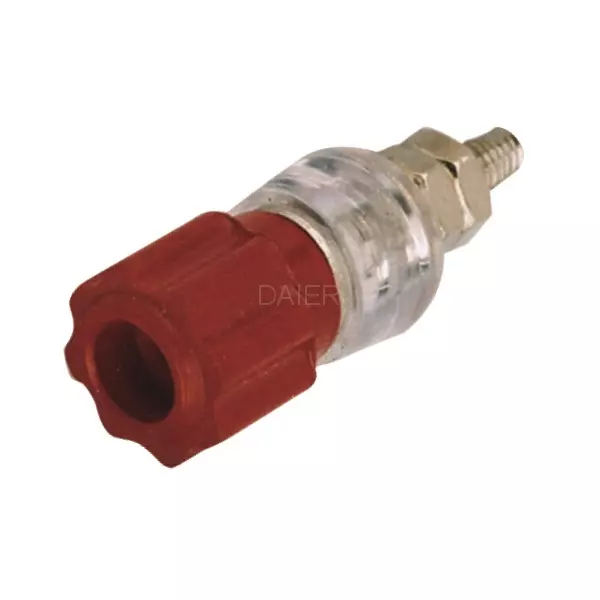

JS-900A binding post connectors:

A binding post is a connector commonly used on electronic test equipment to terminate attach a single wire or test lead. They are also found on loudspeakers and audio amplifiers as well as other electrical equipment.

A binding post contains a central threaded metal rod and a cap that screws down on that rod. The cap is commonly insulated with plastic and color-coded: red commonly means an active or positive terminal; black indicates an inactive (reference or return) or negative terminal; and green indicates an earth (ground) terminal.

Binding posts stand the test of time for good reason. They’re versatile, reliable, and easy to use. That’s why they’re ubiquitous in speakers, amps, test equipment, and electronics in general. With our vast selection of styles, sizes, and finishes, you’re sure to find the binding posts you need for your next project or repair!

Daier binding posts are designed to prevent accidental contact with current carrying parts. They feature a “limited opening” captivated head to insure safety.

The JS-900A binding post connectors related product, pls check the detailed information as below:

JS-900A: 3mm
JS-910A: 4mm
JS-999A: 5mm

Pls check the datasheet below:

Diameter: 3mm/4mm/5mm Color: red/black
Current rating: 36A Voltage rating: 30VAC-60VAC
Material: Brass Insulation: Insulated
Surface coating: Plate with Nickle Insulation material: ABS
