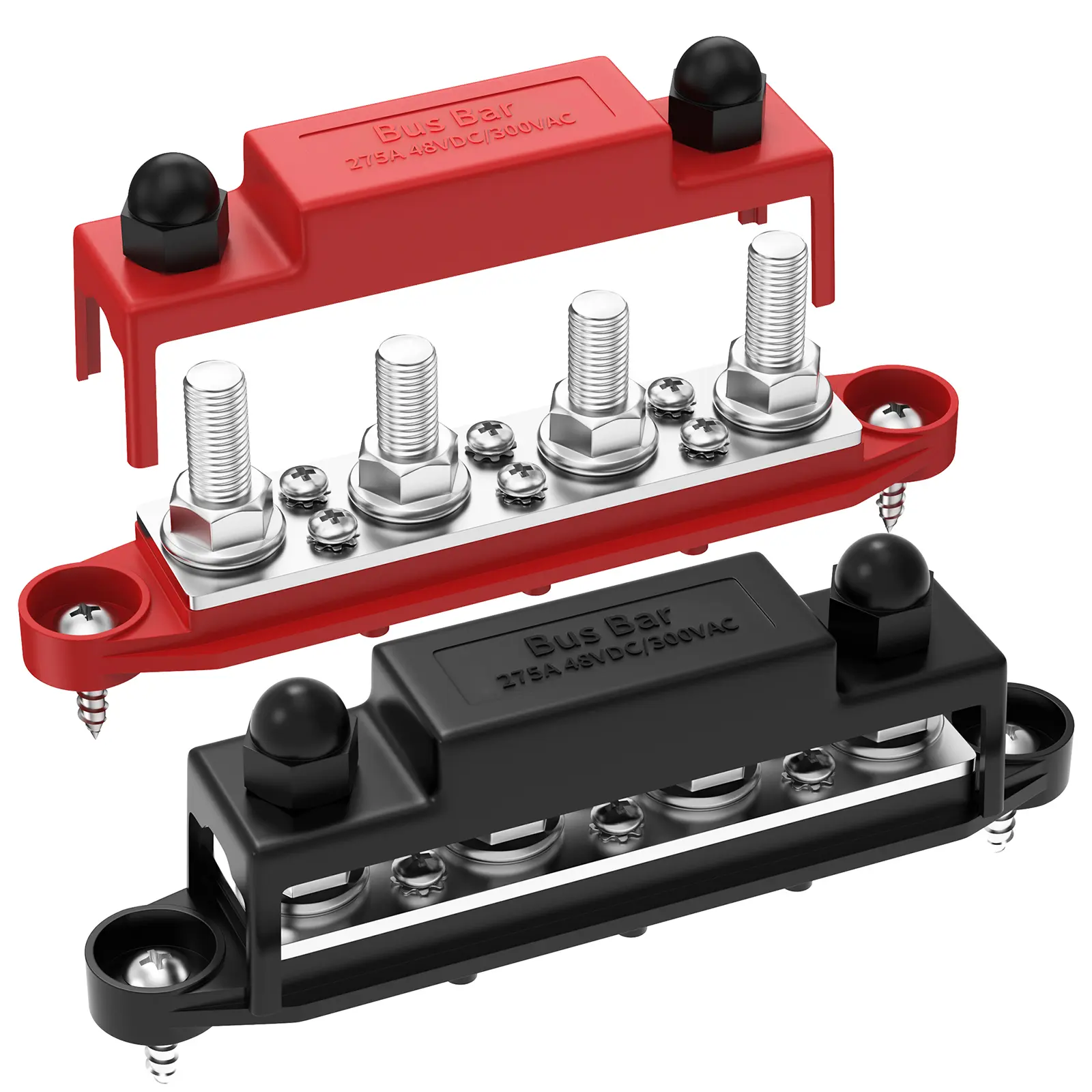

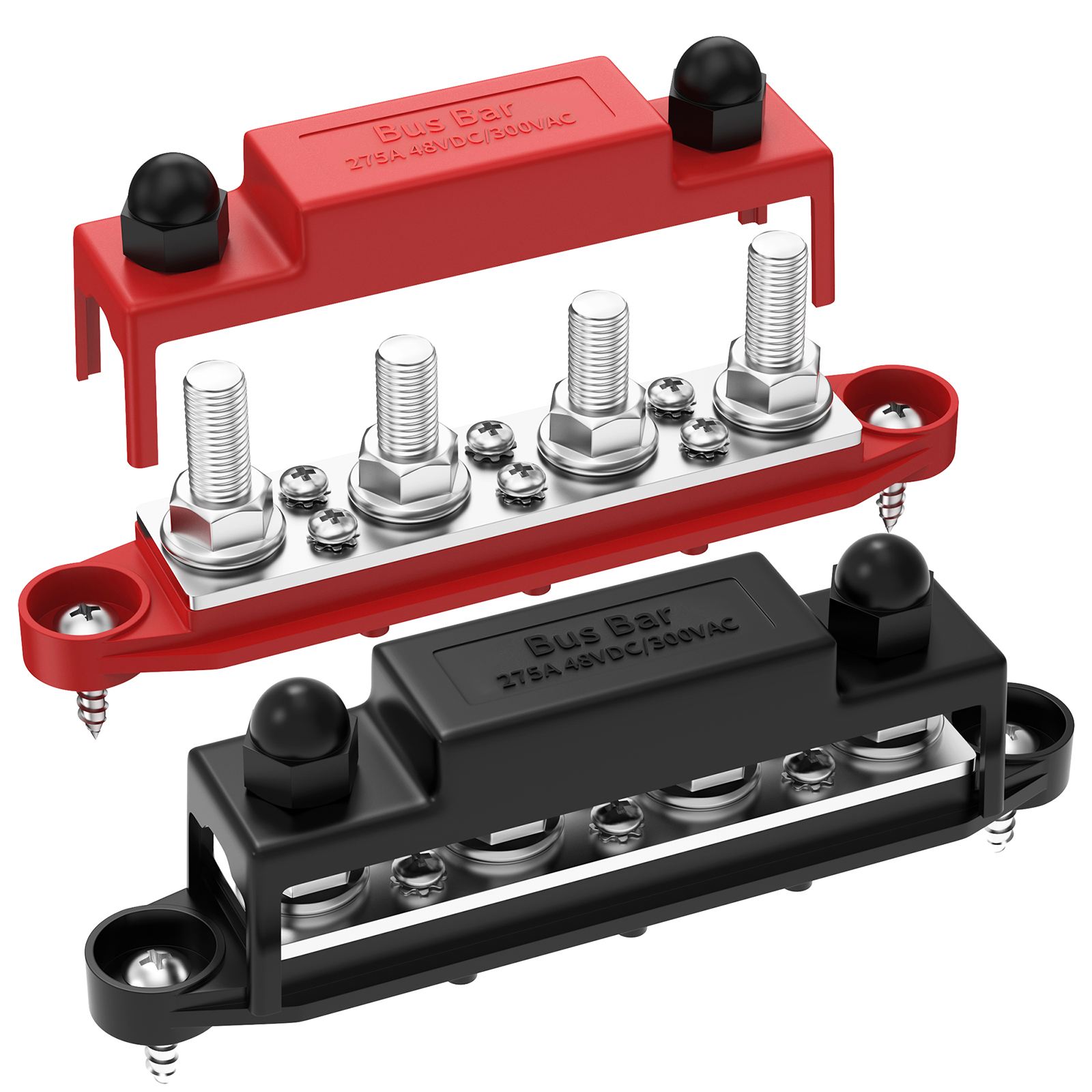

BB275-T4M8/M10S6-C 48VDC 275A Busbar with 4xM8/M10 Studs and 6×M4 Screws

Part#BB275-T4M8/M10S6-C

The 48VDC 275A busbar features 4 x M8 or M10 studs and 6 x M4 screws, allowing for easy connection of terminal connectors and wires.

With a protective cover and included nuts, it enhances safety by reducing the risk of accidental contact and preventing short circuits.

Category :

Busbar
  • certificate

BB275-T4M8/M10S6-C 48VDC 275A Busbar Details

The product picture has not been updated. The actual product is 275A.

  • Dual Busbar Design

This set includes both positive and negative busbars, simplifying wiring configurations for complex electrical systems and ensuring balanced power distribution while minimizing potential cross-connection issues.

  • High Current Rating

This heavy-duty busbar boasts a 275A rating for 12V systems and can handle up to 48V source power, making it ideal for demanding applications with high-power components like inverters, chargers, and winches.

  • Versatile Terminal Options

Four M8/M10 stud terminals and six M4 (#8) screw terminals provide a wide range of connectivity choices, accommodating large-gauge wires and connectors for secure and efficient power distribution with minimal voltage drop.

  • Protective Cover

Included with each busbar, a protective cover shields exposed areas to minimize accidental contact and prevent short circuits, enhancing workplace safety and promoting reliable operation in demanding environments.

  • Organized Wiring

This 275A busbar with cover simplifies wiring layouts, reduces clutter, and prevents messy harnesses, mitigating potential short circuits and promoting efficient troubleshooting and maintenance in automotive, marine, RV, truck, and solar energy systems.

BB275-T4M8/M10S6-C 48VDC 275A Busbar Datasheet

Part NO BB275-T4M10/M8S6-C
Connection Type Red for Positive
Black for Negative
Terminal Studs 4 x M10 (3/8”)/M8 (5/16”)
Terminal Screws 6 x M4 (#8)
Base & Cover Material Nylon
Bus Material Copper (Nickel-Plated)
Bus Thickness 3.5mm
Terminals Material Stainless Steel
Max Voltage 48V DC
Max Continuous Amperage 275 AMP 48VDC/300V AC
Overall Dimension 166mm x 34mm x 43mm (LxWxH)

If you have any questions about the product or would like more information, we encourage you to contact us via email at sales1@chinadaier.com or through our live chat. We are here to help you and give you the information you need.
