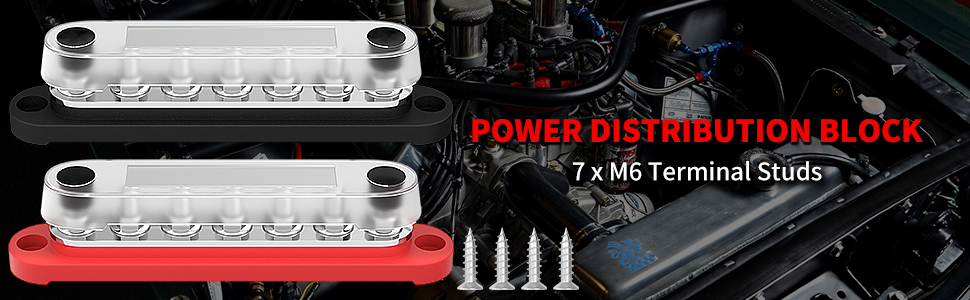

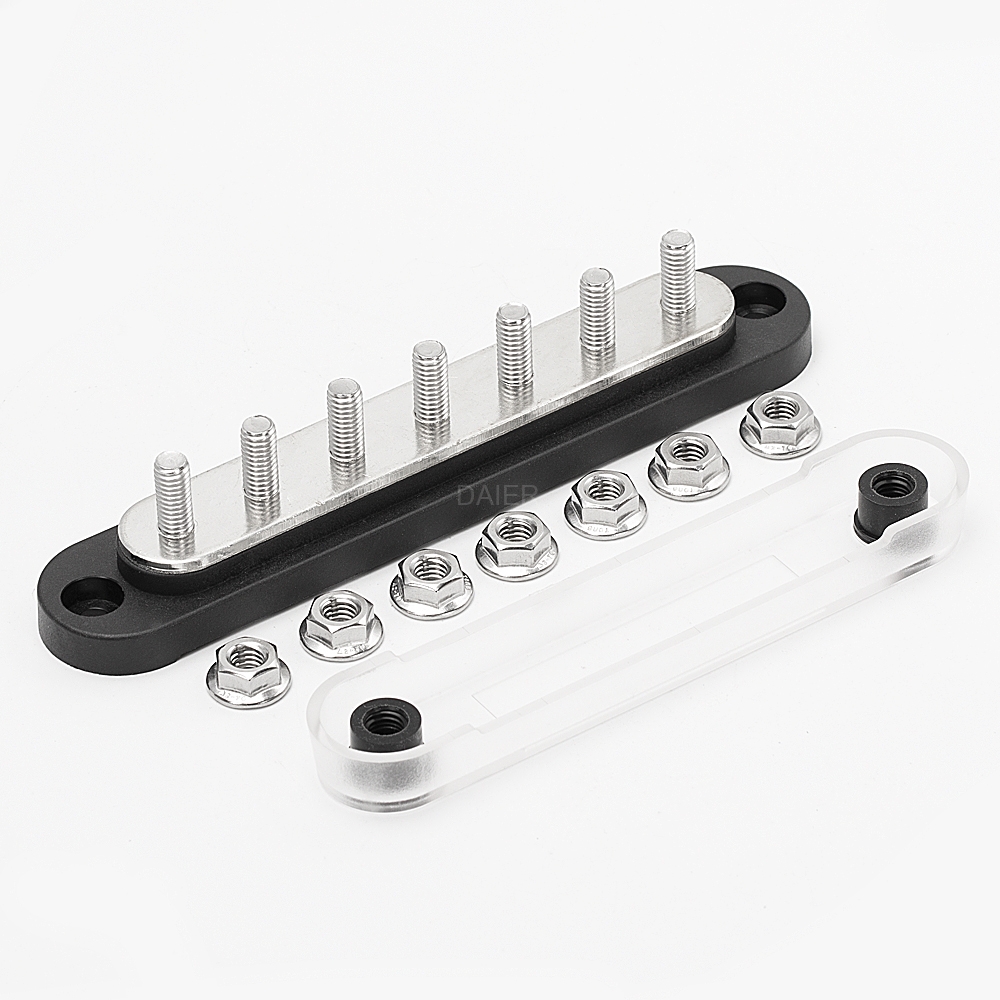

BB150-T7M6-C Marine Battery Distribution Block

Part#BB150-T7M6-C

BB150-T7M6-C Marine Battery Distribution Block is rated for 150A DC continuous current in 12-48V DC, with 7 terminal studs size M6.

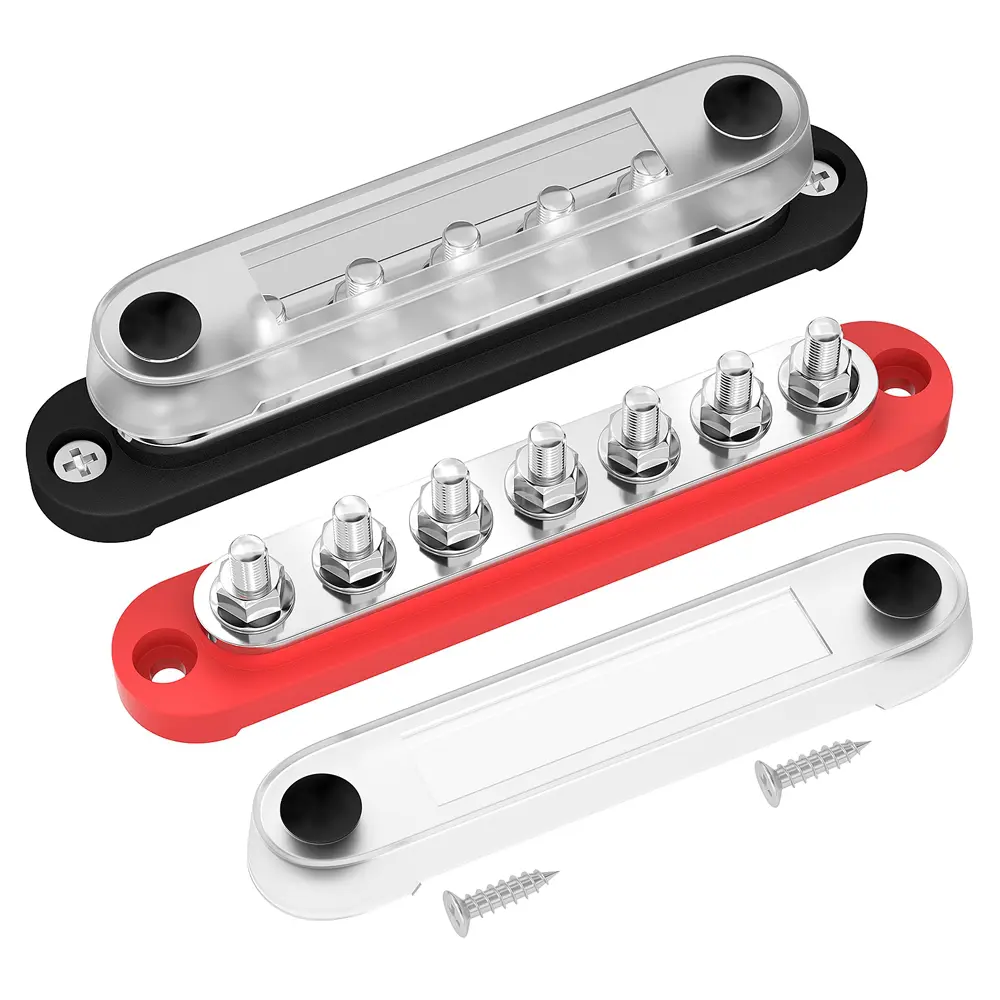

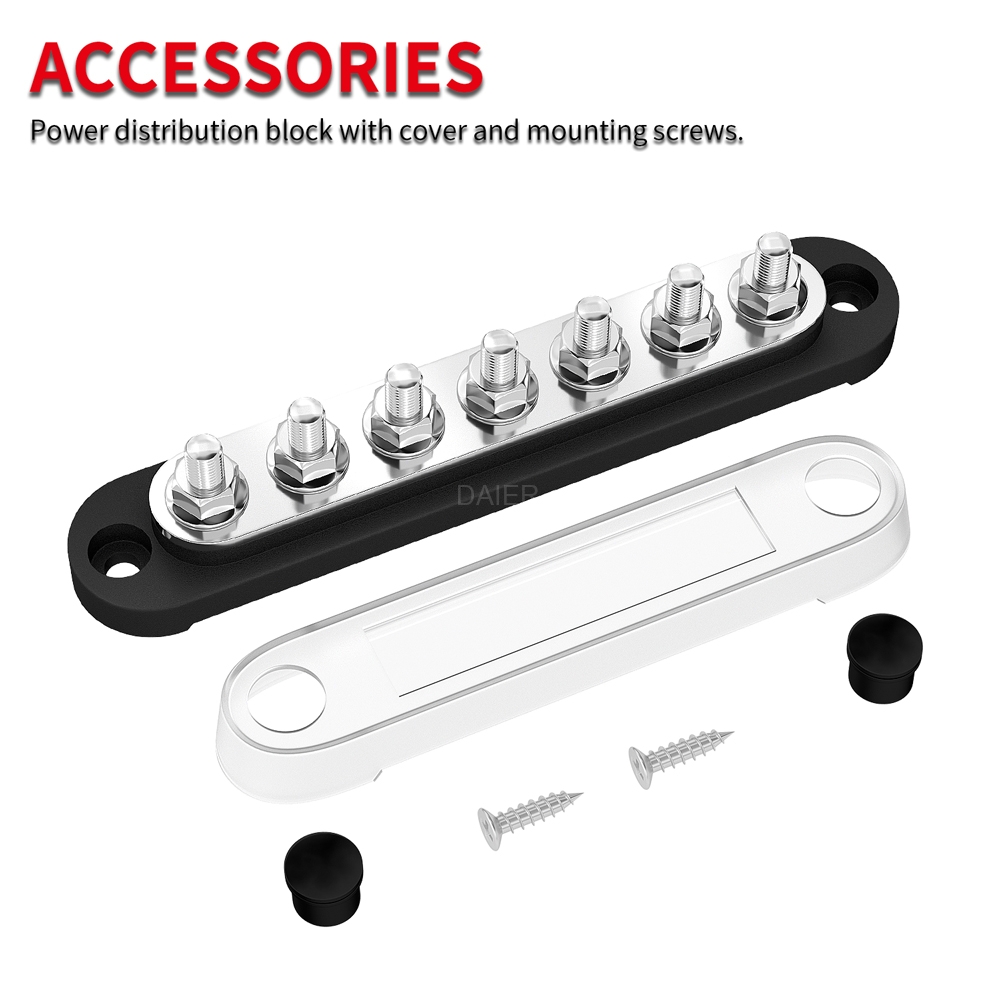

Robust transparent covers with breakouts to allow wire access from any direction.

Category :

Busbar

BB150-T7M6-C Marine Battery Distribution Block Details

  • Easy Installation

It is installed on the panel surface with screw mounting holes for installation in any direction.

  • Stable Performance

Nickel-plated brass contact plate has low resistance and good conductivity to ensure the flow and stability of current.

  • Sturdy Construction

All power distribution connection blocks are manufactured with high-quality materials, ensuring mechanical strength and durability.

  • Safety Protection

The base is made of flame retardant plastic to protect the safety of equipment and people.

  • Wide Application

It is suitable for cars, RVs, trucks, boats, solar energy, and other electrical equipment, etc.

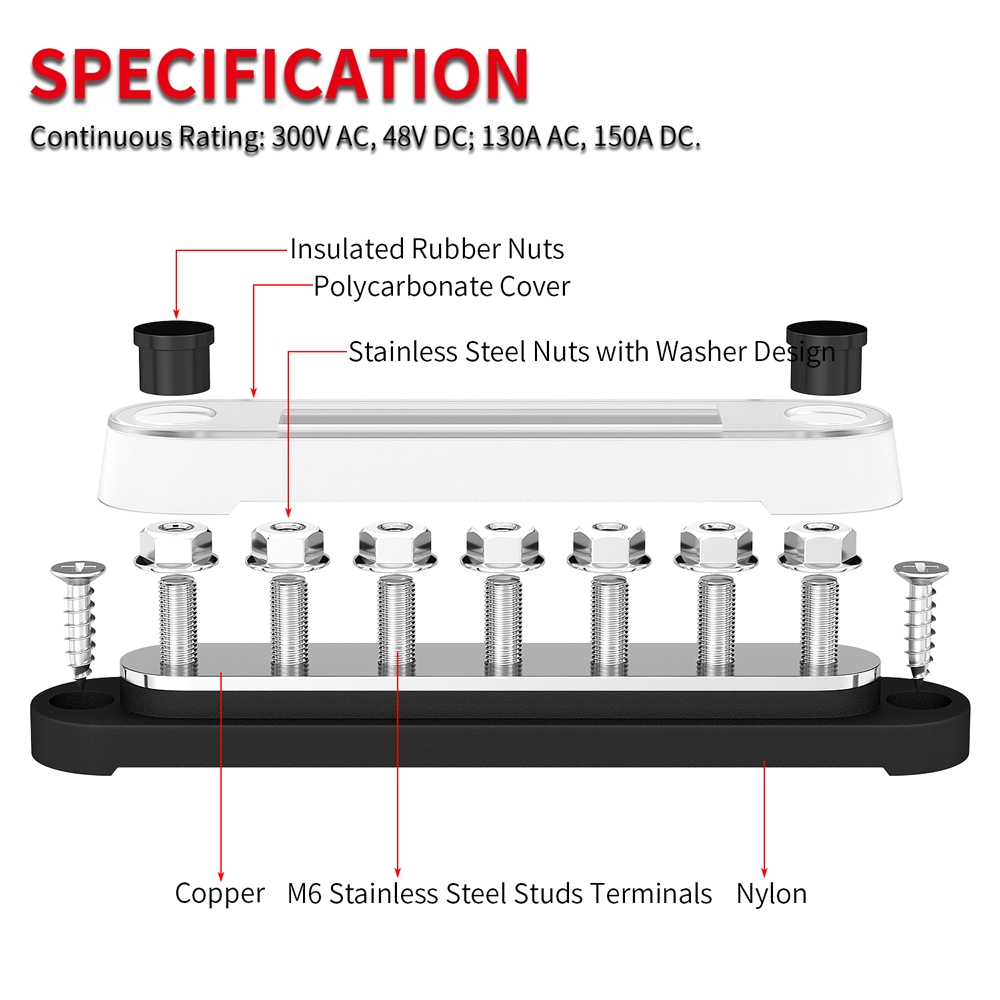

BB150-T7M6-C Datasheet

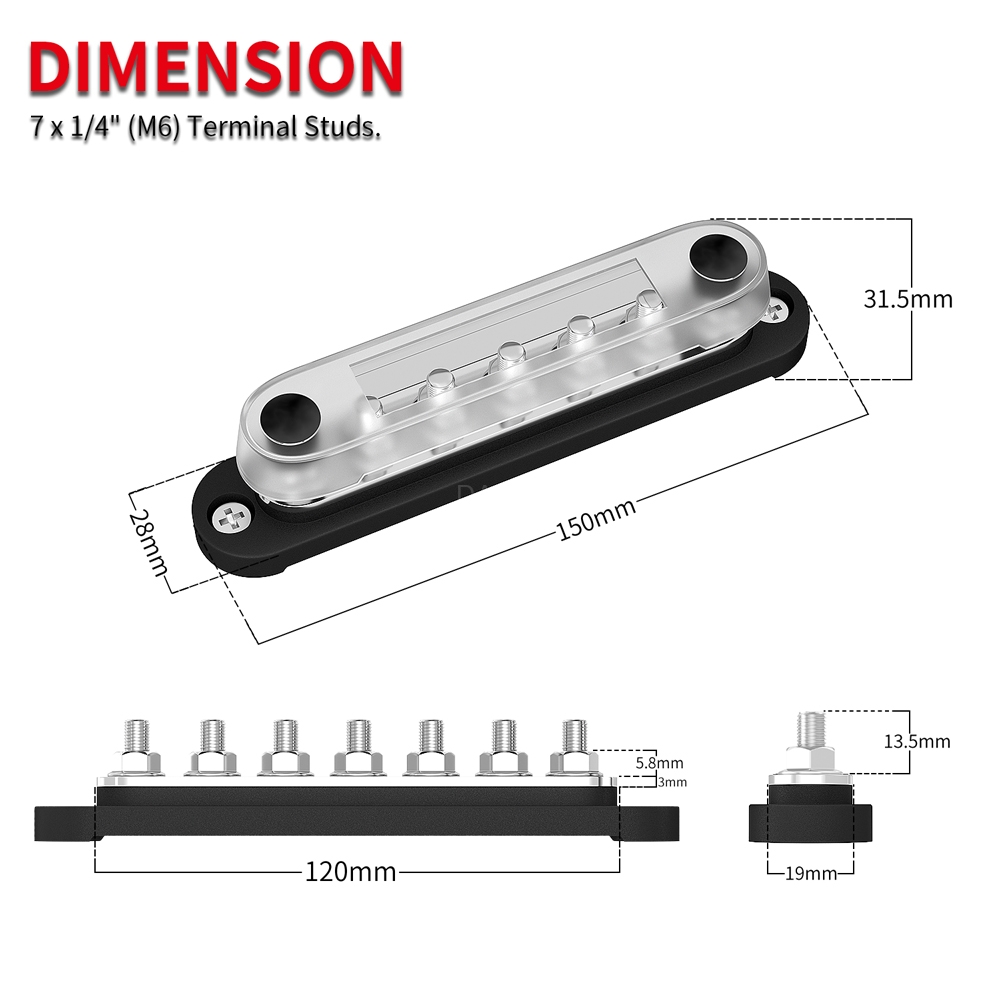

Product Size (L*W*H) 150mm * 28mm * 31.5mm
Terminal Studs Size 7 * M6 (1/4”)
Stud Material Stainless steel
Base Material Nylon, fiberglass
Max Operating Voltage DC 48V
Continuous Current DC 150A
Color Red/Black

Still, have a question about the BB150-T7M6-C that wasn’t answered on this page? Please contact us at sales1@chinadaier.com!
