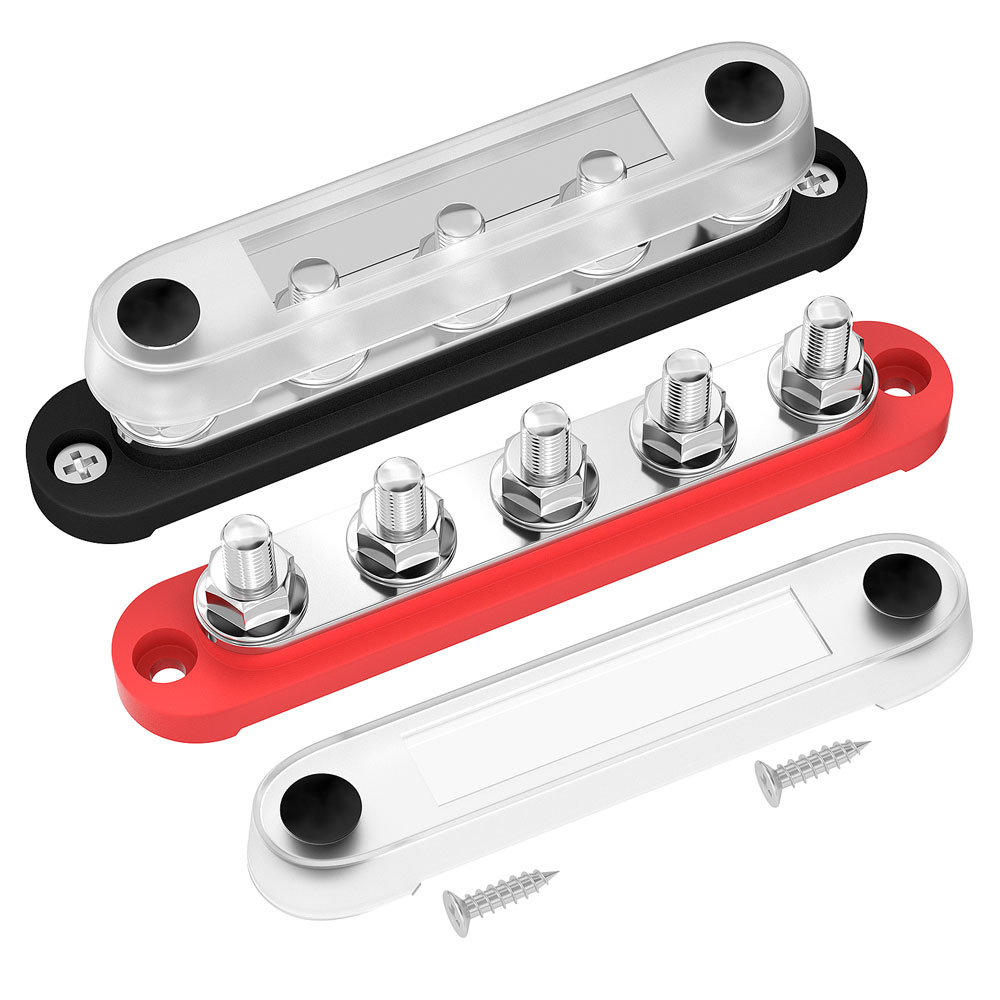

BB150-T5M8-C 150A 48VDC 5×M8(5/16″) Terminal Studs Busbars For Automotive
Part#BB150-T5M8-C
The 5×M8(5/16″) stud terminals busbars for automotive is rated for 150A DC continuous current in 12-48V DC, and 5×terminal studs size M8.
Unique grid optimized footprints allow space-saving arrangements of multiple products.
Category :
Busbar
BB150-T5M8-C 150A 48VDC 5×M8(5/16″) Terminal Studs Busbars For Automotive Details
- Terminal
Positive and negative 5 studs dc bus bar, each battery busbar terminal block includes 5 x M8 (5/16″) terminal studs design, it’s stainless steel material.
- Rating
This marine 12V power distribution block can handle voltage @ Max 300V AC, 48V DC, and continuous amperage @ Max 130A AC, 150A DC.
- Round Corner Base
This electrical busbar terminal block is unique round corner base design, which makes the battery distribution block unique and special, looks more extraordinary compared with other busbars.
- More Open Area Design Cover
The cover of this marine bus bar will allow 180° wire lug installation and can meet variety kinds of installat methods of end terminals.
- Application
This battery distribution block busbar uses copper plates and stainless steel terminals as conductors, which enables the distribution block to work in extreme environment, suitable for automotive, car, RVs, trucks, marine, boat, solar energy, etc.
BB150-T5M8-C 150A 48VDC 5×M8(5/16″) Terminal Studs Busbars For Automotive Datasheet
| Product Size (L*W*H) | 150mm * 28mm * 35mm |
| Terminal Studs Size | 5×M8 (5/16″) |
| Stud Material | Stainless steel |
| Base Material | Nylon, fiberglass |
| Max Operating Voltage | DC 48V |
| Continuous Current | DC 150A |
| Color | Red/Black |
Still, have a question about the BB150-T5M8-C that wasn’t answered on this page? Please contact us at sales1@chinadaier.com!
