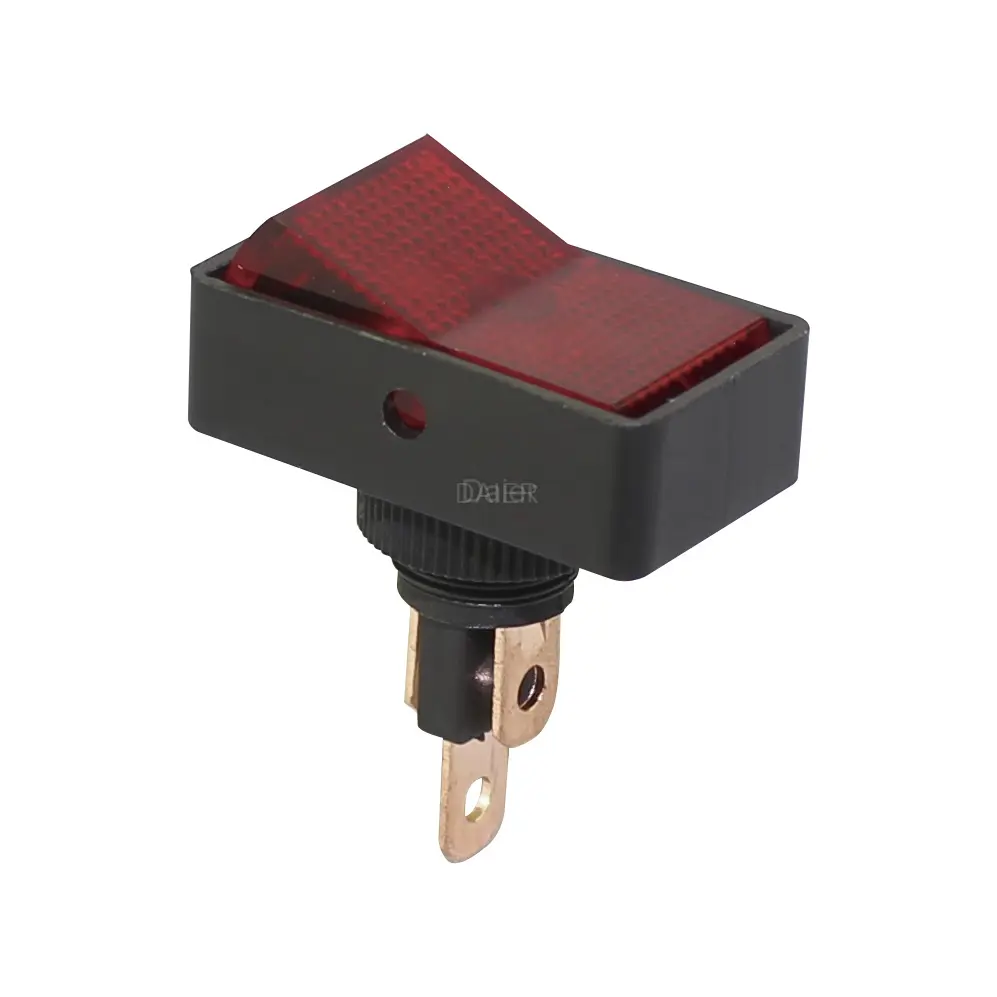

ASW-11D Jumbo Red Illuminated Rocker Switch

Part # ASW-11D


ASW-11D Jumbo Red Illuminated Rocker Switch is used for 20 Amps at 12V DC systems, ON-OFF, SPST, 3P (With lamp).

This product is made of high-quality materials to serve you for years to come. It will meet your needs and deliver great quality at an affordable cost.


ASW-11D Jumbo Red Illuminated Rocker Switch

  • Simple Operation

Snap-in installation, easy installation, beautiful surface and firm installation. The double arrow pattern is easier to use. 20 Amps at 12V DC.

  • Sturdy Construction:

Made of plastic, metal and electrical components for safety and reliable operation with high impact resistance and better durability.

  • Great Compatibility

Designed to replace old broken switches or to refit cars for a variety of car glass lifts, power door lifts or motorboat home appliances.

  • Visual Feedback

The illuminated rocker switch illuminates when operating on DC or AC power and provides visual feedback of circuit operation.

  • Wide Application

Widely used in industrial control, van modification, marine panel, automotive, motor control, truck and bus.

ASW-11D Rocker Switch Detailed Information

ASW-11D Jumbo Red Illuminated Rocker Switch

Still have a question about the ASW-11D Rocker Switch that wasn’t answered on this page? Please contact our sales1@chinadaier.com.

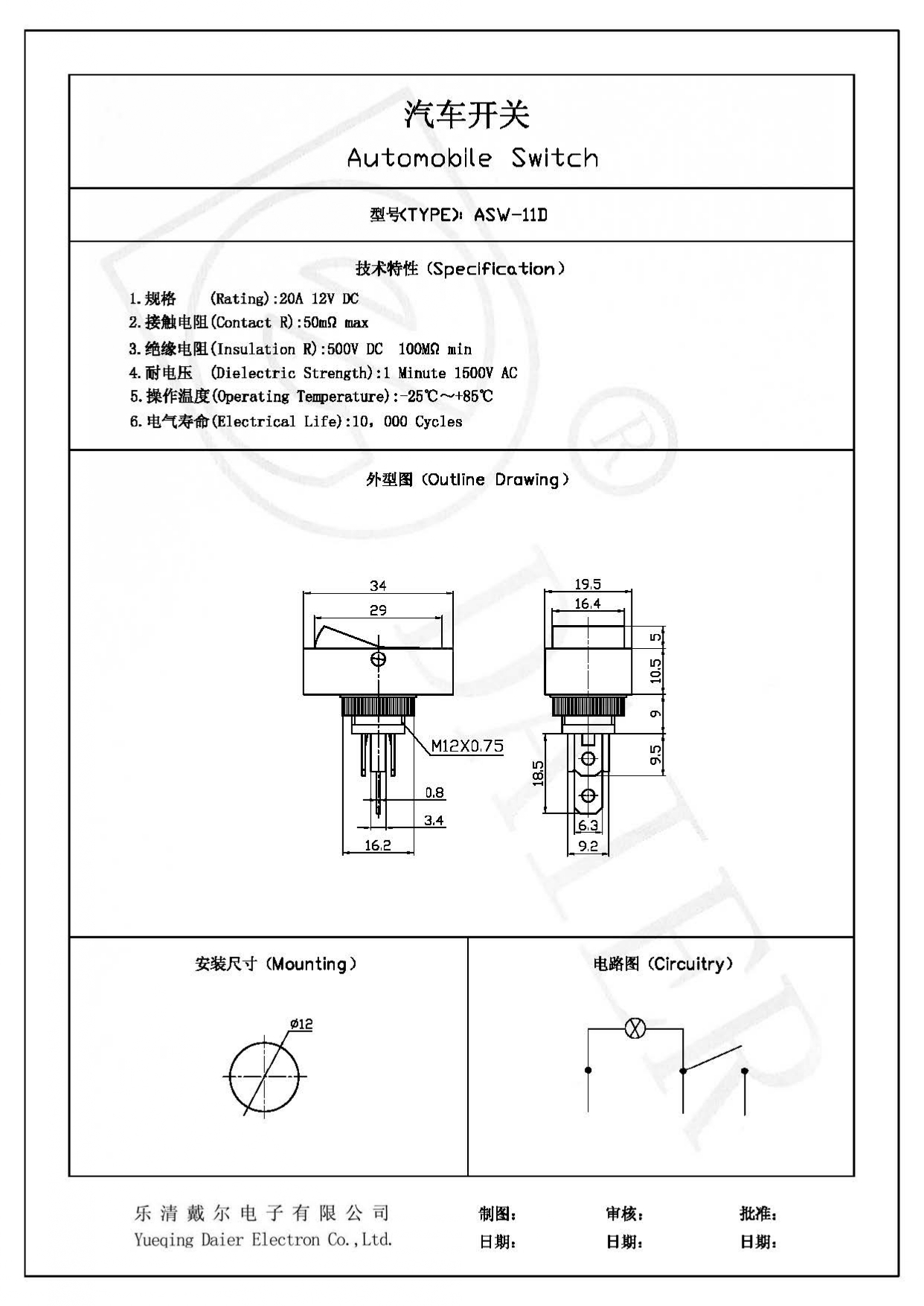

ASW-11D Jumbo Red Illuminated Rocker Switch Datasheet Below:

Rating: 20A 12V DC Contact Resistance: 50mΩ max
Electrical Life: ≥ 10,000 Cycles Mechanical Life: ≥ 100,000 Cycles
Dielectric strength: 1 minute 1500VAC Operating Temperature: -25℃~+85℃
Insulation Resistance: 100mΩ min (500VDC) OEM or ODM: Available
