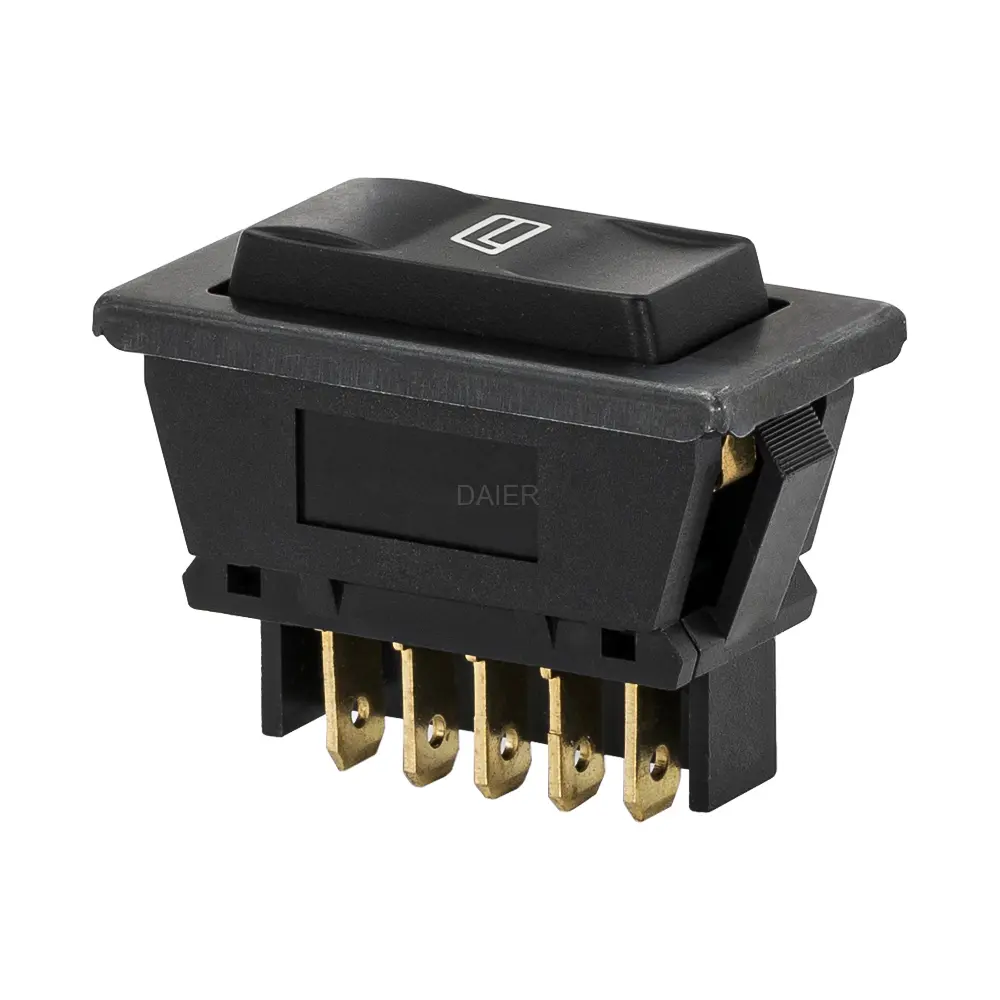

ASW-02D Electric Window Momentary Rocker Switch

Part # ASW-02D

ASW-02D Electric Window Momentary Rocker Switch, 20 Amps at 12V DC and 10 Amps at 30V DC, DPDT 5P (With LED).

Illuminated options are manufactured with advanced LED, ensuring vibrant color, and a long life of consistent operation.



ASW-02D Electric Window Momentary Rocker Switch Details

  • Simple Operation

The installation method of ASW-02D is similar to that of ASW-01. It adopts snap-in installation, which is convenient for operation. Double arrow mode is easier to use. 20 amps at 12 VDC, 10 amps at 30 VDC.

  • Sturdy Construction

ASW-02D Electric Window Momentary Rocker Switch is made of plastic, metal and electrical components for safety and reliable operation with high impact resistance and better durability.

  • Great Compatibility

It is designed to replace old broken switches or to refit cars for a variety of car glass lifts, power door lifts or motorboat home appliances.

  • Visual Feedback:

The illuminated rocker switch illuminates when operating on DC or AC power and provides visual feedback of circuit operation.

  • Wide Application

Widely used in industrial control, van modification, marine panel, automotive, motor control, truck and bus.

ASW-02D Rocker Switch Information

ASW-02D Electric Window Momentary Rocker SwitchOther types of switches with the same function can also be provided: ASW-01.

Still have a question about the ASW-02D Rocker Switch that wasn’t answered on this page? Please contact us at [email protected].

ASW-02D Electric Window Momentary Rocker Switch Datasheet

Rating: 20A 12VDC/10A 30VDC Contact Resistance: 50mΩ max
Electrical Life: ≥ 10,000 Cycles Mechanical Life: ≥ 100,000 Cycles
Dielectric strength: 1500VAC 1 Minute Operating Temperature: -25℃~+85℃
Insulation Resistance: 100mΩ min (500VDC) OEM or ODM: Available
