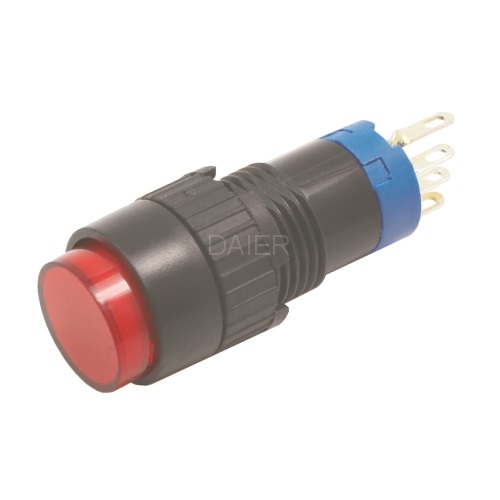

A12-11SY Momentary Industrial Push Switch
A12-11SY Momentary Industrial Push Switch for Home or Industrial Equipment
Category :
Industrial Push Button Switch
A12-11SY Momentary Industrial Push Switch
Push button switch is one of the most easy and quick to operate.
The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers.
It is widely used in industrial automation.
Many colors of button and light are available.

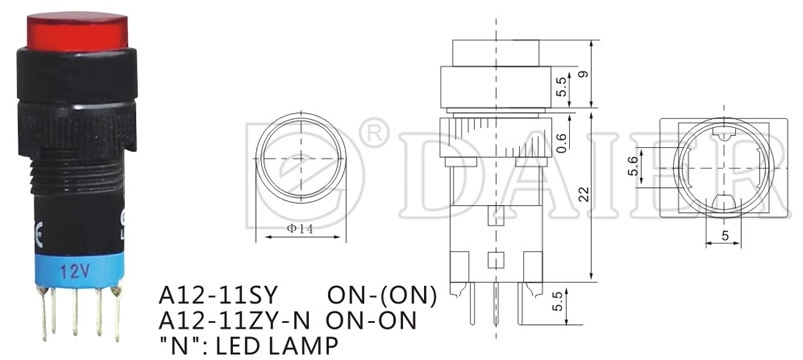

A12-11SY Momentary Industrial Push Switch detailed information as below:
| A12-11SY： | ON-(ON) without light |
| A12-11ZY: | ON-ON without light |
| A12-11SY-N: | ON-(ON) with light |
| A12-11ZY-N: | ON-ON with light |
A12-11SY datasheet below:
| Rating: | 3A 250VAC | Contact Material: | Silver |
| Light Voltage： | 3, 6, 12, 24, 48, 110, 220V | Contact Configuration: | Single Pole, Double Pole |
| Electrical Life: | ≥ 10,000 Cycles | Function: | ON-(ON) or ON-ON |
| Dielectric strength: | 500VAC 1 minute | Operating Temperature: | -25℃~+85℃ |
| Insulation Resistance: | 100mΩ min (500VDC) | OEM or ODM: | Available |
