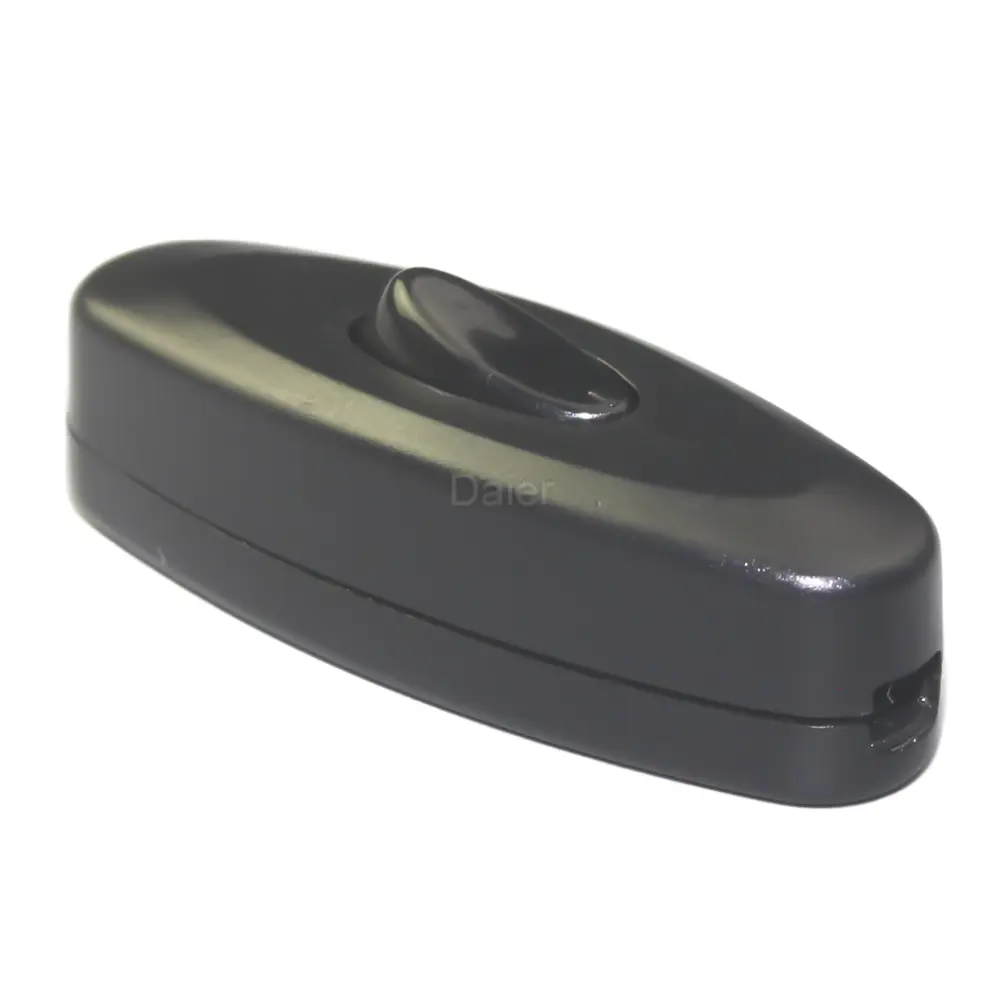

8S.304 Inline Power Rocker Switch

8S.304 Inline Power Rocker Switch

Category :

Inline Switch

8S.304 Inline Power Rocker Switch

8S.304 inline power switch is popular used in home lighting,such as table lamps and floor lamps.The black color is standard color.
Offers added functionality to power cords with the inline rocker switch. The most common type of inline rocker switch is the single-pole, single-throw (SPST) “ON/OFF”. Other types, such as two-speed, toggle, and others, can be installed using the inline switch housing. The benefit of the inline switch is that it provides convenience and control.Inline rocker switches can be mounted on round jacketed cable at virtually any point along the length of the cord. Users can then turn power off using the switch instead of trying to reach for often inconveniently located outlets behind desks and equipment. The inline switch housing is also ergonomically sized to fit in the hands of most individuals, a beneficial feature which makes it easier to handle and see.
About other colors,if you have the quantity,you can contact me.
China Daier is a professional switch manufacture,we have the professional team. I can say confidently we are your best choice!

8S.304 Inline Power Rocker Switch datasheet below



Material: PP Color: Standard black
Contact Configuration: SPST Switch Operation: ON-OFF
Rating: 2A 250VAC/3A 125VAC Withstand voltage: >=2500V/5S/0.025MA
Contact Resistance: <0.02mΩ Operating Temperature: -40℃~+85℃
Insulation Resistance: >=100mΩ Electrical Life: ≥ 10,000 Cycles
Percussive voltage: 0.5NM±0.04NM Combustibility: 94V lever2
Certification: CE, CQC, SGS OEM or ODM: Available
8S.304 Inline Power Rocker Switch datasheet
